AK100/3DS-10.0-H-GREY - 90° NYÁK-os sorkapocs 3-pólusú RM=10mm Fektetett szürke - PTR MESSTECHNIK

0.3994 €+ VAT
0.5072 € incl. VAT

AK100/3DS-10.0-H-GREY - 90° NYÁK-os sorkapocs 3-pólusú RM=10mm Fektetett szürke - PTR MESSTECHNIK

Name: AK100/3DS-10.0-H-GREY - 90° NYÁK-os sorkapocs 3-pólusú RM=10mm Fektetett szürke - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-05-61
Price: 0.5072 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 36 pcs

0.3994 €+ VAT
0.5072 € incl. VAT

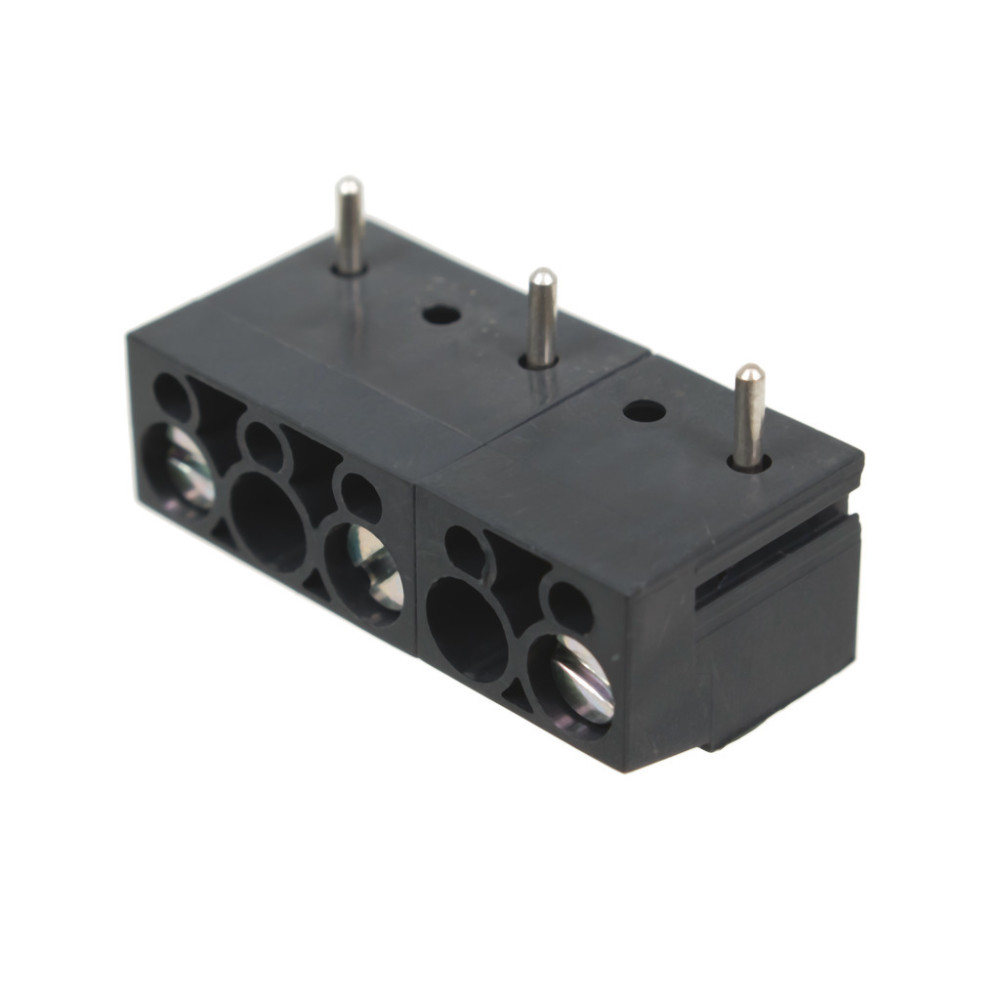

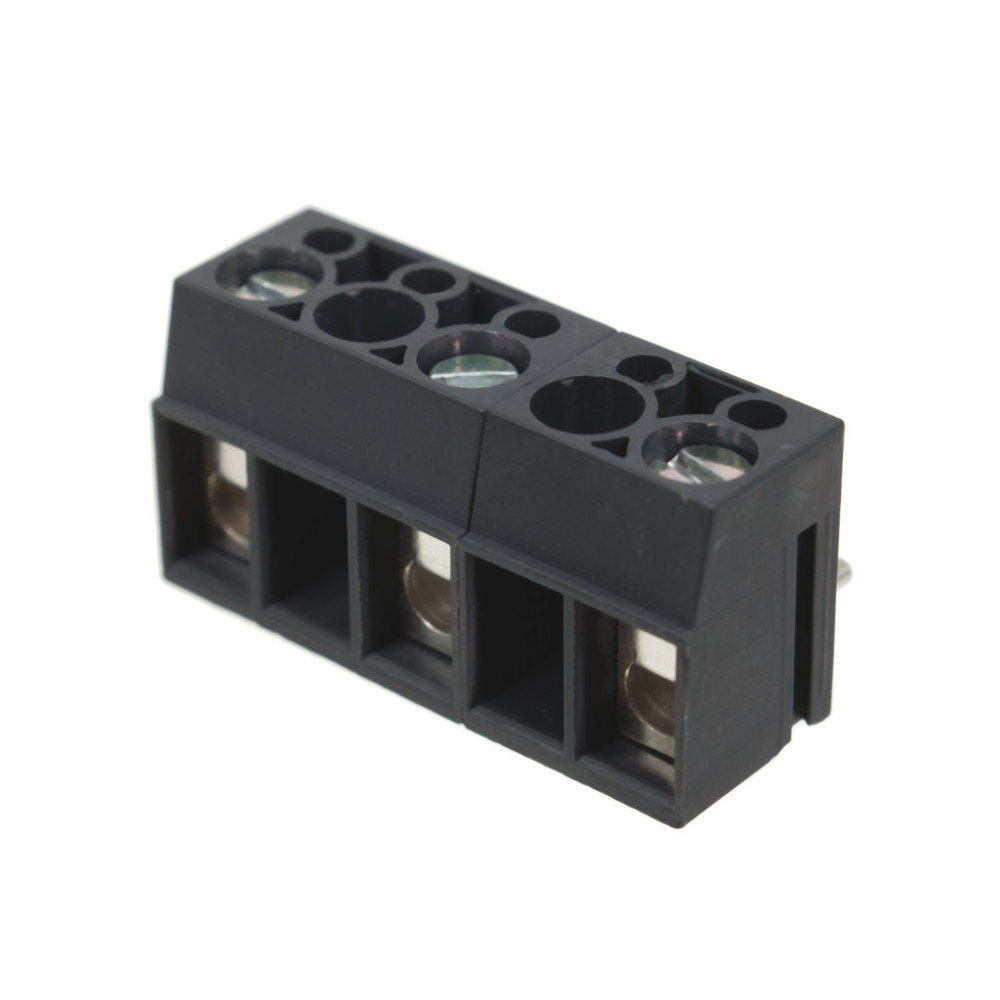

Terminal Block, 90° for PCB 3-pole RM=10mm Right Angle Grey

Manufacturer code:

AK100/3DS-10.0-H-GREY

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AK100_..DS-10.0-H-GREY.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=10.0mm

Product Range:

AK100

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

3.5 kV

Standard:

VDE, UL

Continual Current [A], Max.:

24 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

750 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Brass-/steel-plate

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Raster measure:

5 mm

10 mm

Connector Configuration:

1-row, axial, upper wire

1-row, radial, side wire

pcs

Our Warehouse

36 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_037.pdf ROHS_PTR2.pdf
