AK100/2DS-5.0-V-GREY - NYÁK-os sorkapocs 2-pólusú RM=5,0mm szürke - PTR MESSTECHNIK

0.3497 €+ VAT
0.4441 € incl. VAT

AK100/2DS-5.0-V-GREY - NYÁK-os sorkapocs 2-pólusú RM=5,0mm szürke - PTR MESSTECHNIK

Name: AK100/2DS-5.0-V-GREY - NYÁK-os sorkapocs 2-pólusú RM=5,0mm szürke - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-14-98
Price: 0.4441 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 244 pcs

0.3497 €+ VAT
0.4441 € incl. VAT

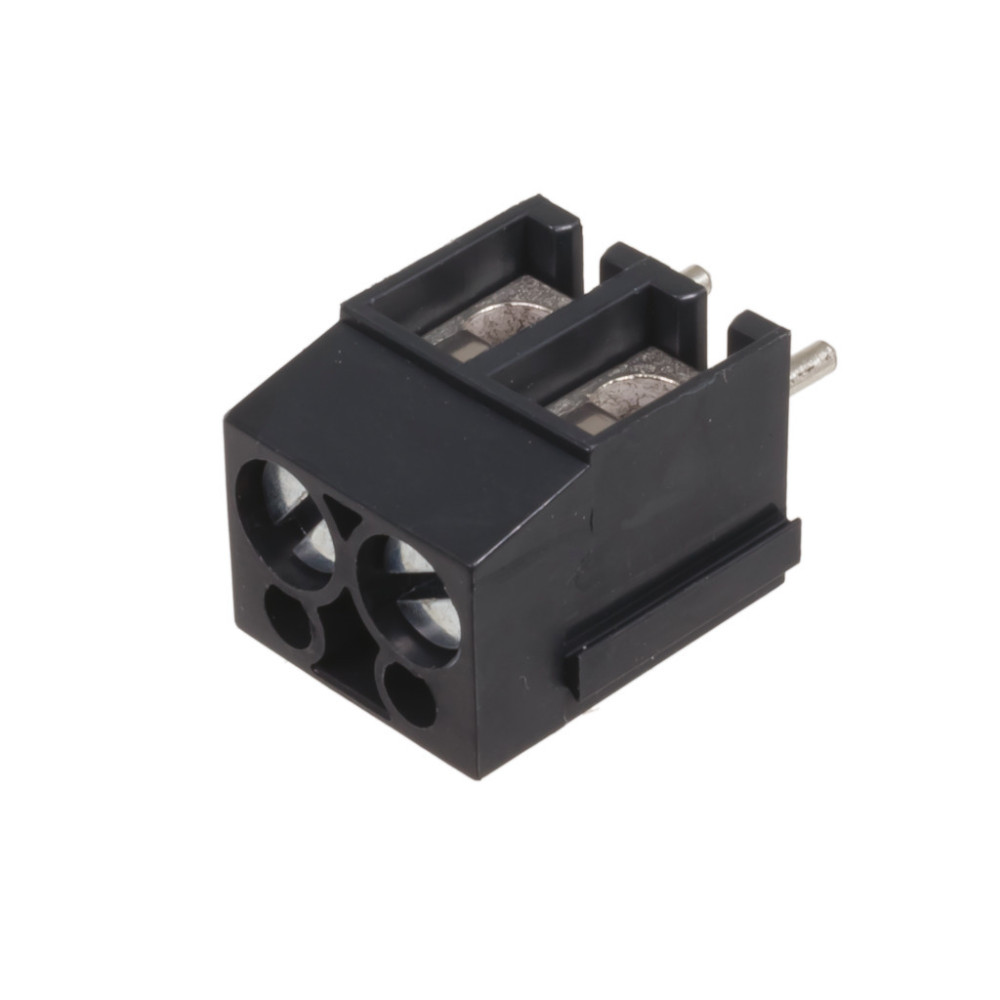

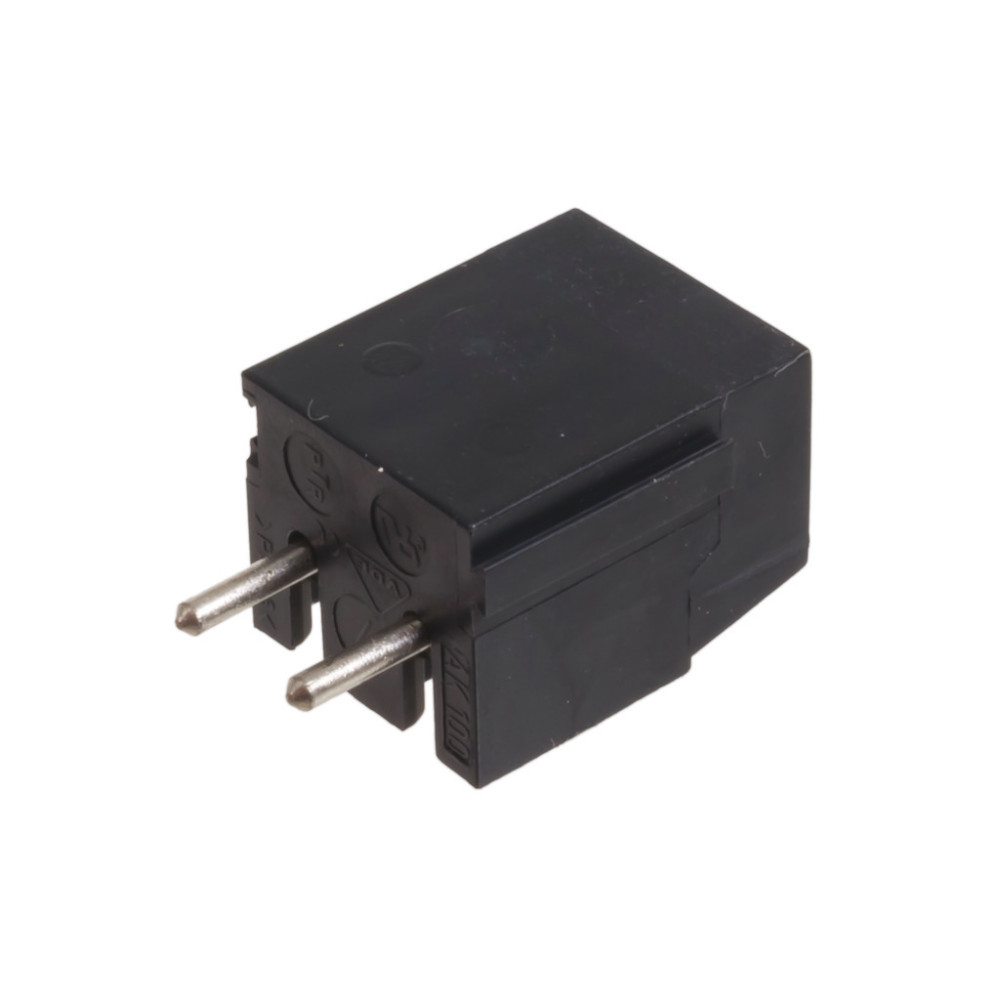

Terminal Block, for PCB 2-pole RM=5,0mm Grey

Manufacturer code:

AK100/2DS-5.0-V-GREY

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AK100_..DS-5.0-V-GREY.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.0mm

Product Range:

AK100

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2 kV

Standard:

VDE, UL

Continual Current [A], Max.:

24 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Brass-/steel-plate

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Raster measure:

5 mm

10 mm

Connector Configuration:

1-row, radial, side wire

1-row, axial, upper wire

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

250

0,26 €

0,33 €

Our Warehouse

242 pcs

Available for immediate delivery

Our Shop in Szeged

2 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_036.pdf ROHS_PTR2.pdf

Weight:

2.32 g/pcs
