FTR-B3SA4.5Z-B10 - jelfogó SMD 4.5 V 145 Ohm 125Vac/0.5A, 30Vdc/1A 2-áramkör alacsony profil - TAKAMISAWA

1.7887 €+ VAT
2.2716 € incl. VAT

FTR-B3SA4.5Z-B10 - jelfogó SMD 4.5 V 145 Ohm 125Vac/0.5A, 30Vdc/1A 2-áramkör alacsony profil - TAKAMISAWA

Name: FTR-B3SA4.5Z-B10 - jelfogó SMD 4.5 V 145 Ohm 125Vac/0.5A, 30Vdc/1A 2-áramkör alacsony profil - TAKAMISAWA
Brand: TAKAMISAWA
SKU: 49-06-44
Price: 2.2716 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 1000 pcs

1.7887 €+ VAT
2.2716 € incl. VAT

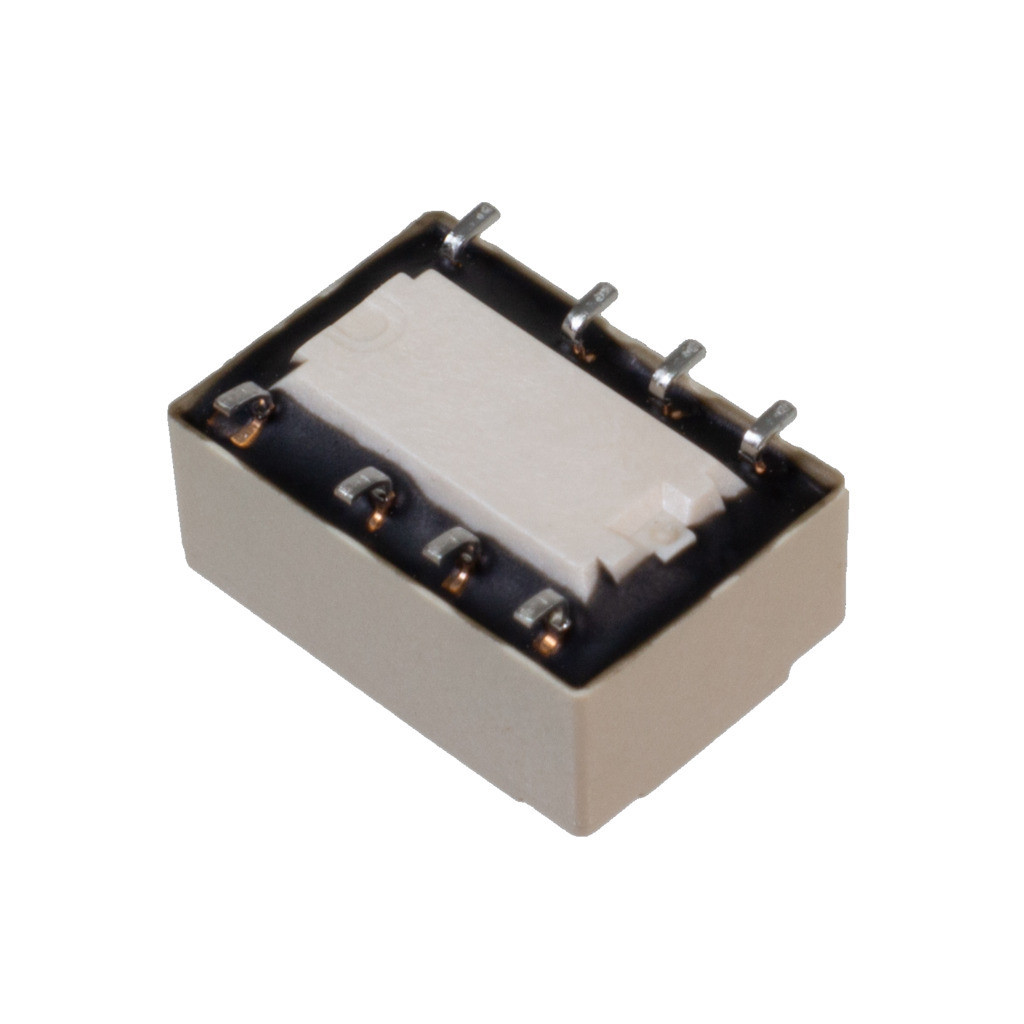

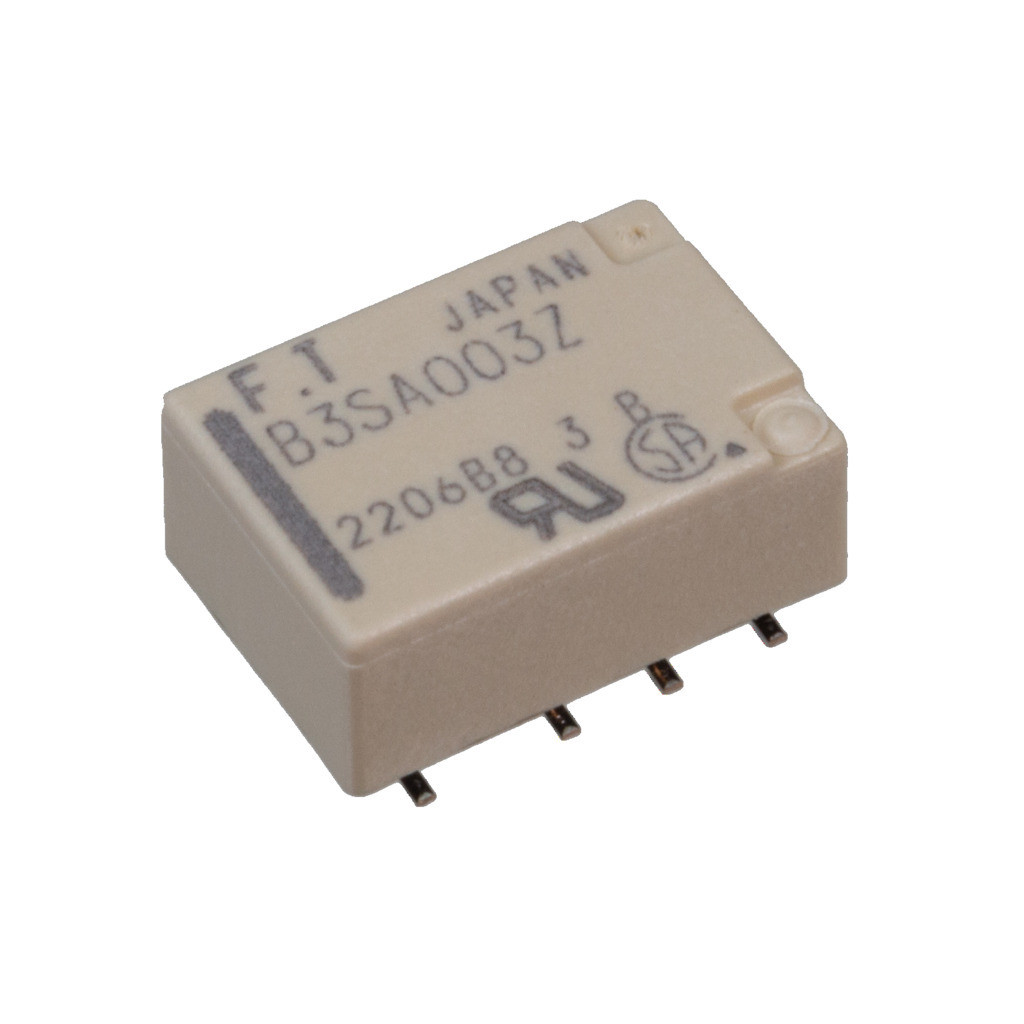

Relay, SMD 4.5 V 145 Ohm 125Vac/0.5A, 30Vdc/1A 2-circuit Low-profile

Manufacturer code:

FTR-B3SA4.5Z-B10

Manufacturer:

TAKAMISAWA

Datasheet:

ftr-b3.pdf

Group:

Relay, SMD

Component Family:

Relay, mechanical

Product Range:

FTR-B3

Case:

Surface Mount (SMD)

Termination Type:

Surface mount (SMD)

Number of Pins:

Dimension Parameters:

10.6 x 7.2 x 5.5 mm

Contact Voltage, Max. DC [V]:

220 V

Contact Configuration :

DPDT

Contact Current, Max. AC/DC [A]:

0.3 A/1 A

Contact Voltage, Max. AC [V]:

250 V

Contact resistance [Ohm]:

0.075 Ohm

Coil Resistance [Ohm]:

145 Ohm

Coil Voltage [V], Min.:

3.38 V DC

Coil Configuration:

1 coil

Coil Holding Voltage [V], Min.:

0.45 V DC

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

Coil Voltage [V], Nom.:

3 V DC

4.5 V DC

9 V DC

12 V DC

24 V DC

pcs

Our Warehouse

1000 pcs

Available for immediate delivery

Info

Weight:

0.85 g/pcs
