FTR-B3SA009Z-B10 - jelfogó SMD 9V 579Ohm 125Vac/0,5A,30Vdc/1A 2 áramkör alacsony profilú - FUJITSU

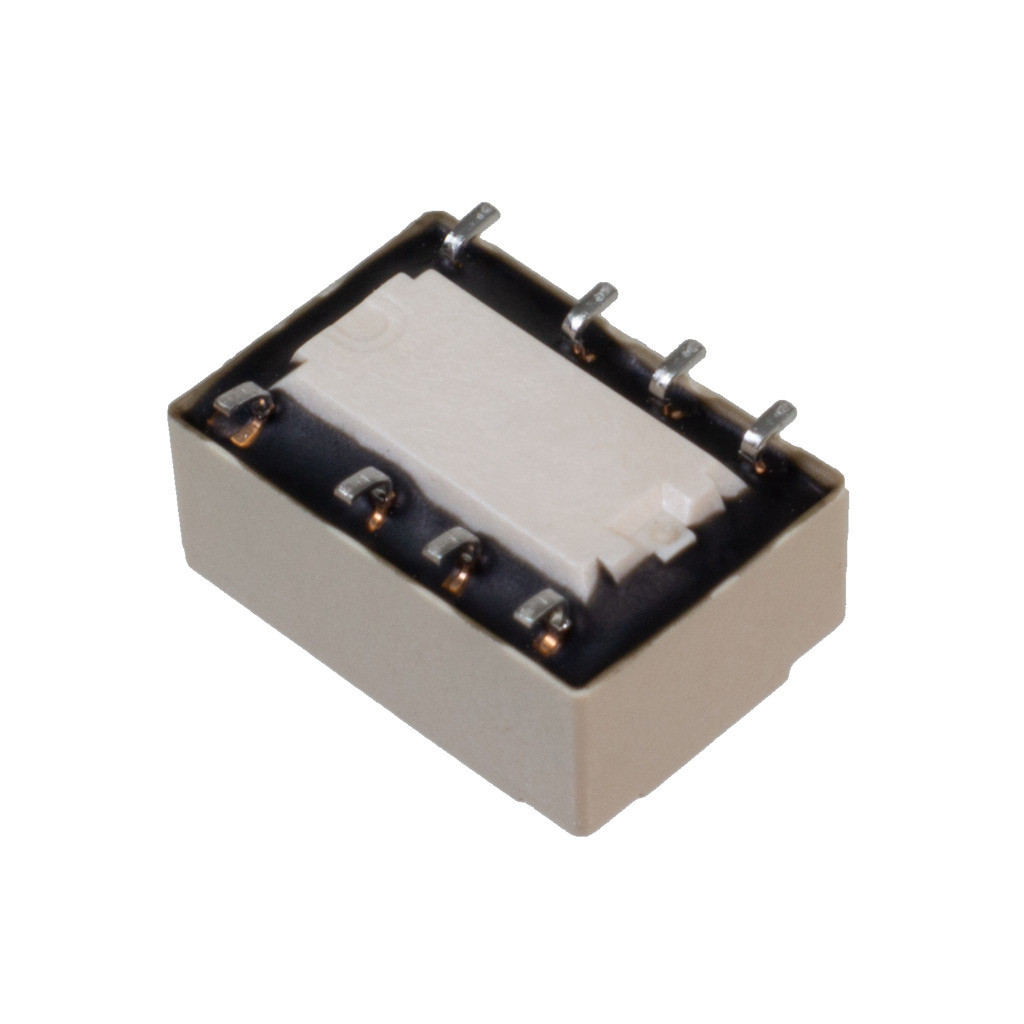

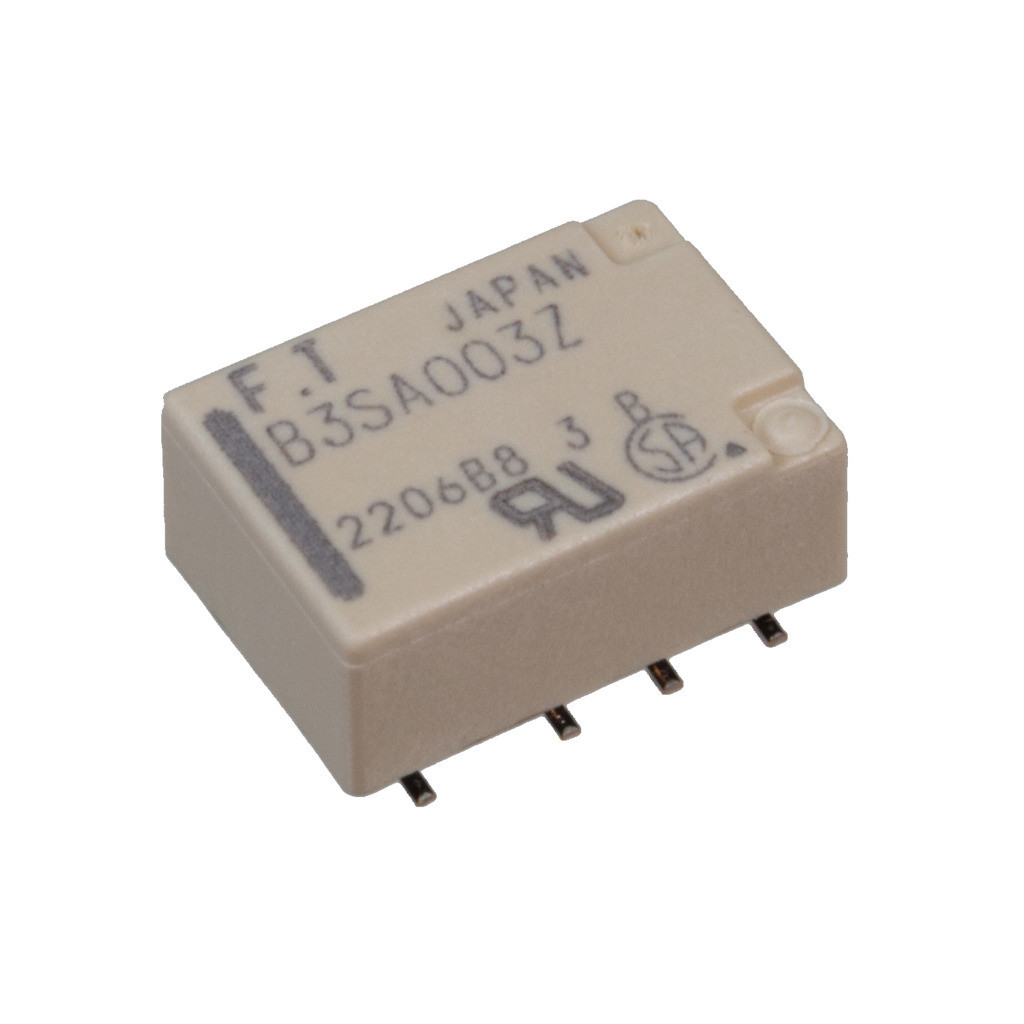

The picture is for illustration purposes only. Please read the product description!
Out of stock
Relay, SMD 9V 579Ohm 125Vac/0,5A,30Vdc/1A 2-circuit Low-profile
Manufacturer code:
FTR-B3SA009Z-B10
Manufacturer:
Datasheet:
Group:
Relay, SMD
Component Family:
Product Range:
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
8
Dimension Parameters:
10.6 x 7.2 x 5.5 mm
Contact Voltage, Max. DC [V]:
220 V
Contact Configuration :
DPDT
Contact Current, Max. AC/DC [A]:
0.3 A/1 A
Contact Voltage, Max. AC [V]:
250 V
Contact resistance [Ohm]:
0.075 Ohm
Coil Resistance [Ohm]:
579 Ohm
Coil Voltage [V], Min.:
6.75 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
0.9 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Data
Weight:
0.85 g/pcs
