PE30L0FR103MAB - 10KOhm Cermet LIN 3W 150ppm D=6mm tengely, potenciométer - VISHAY

23.2435 €+ VAT
29.5192 € incl. VAT

PE30L0FR103MAB - 10KOhm Cermet LIN 3W 150ppm D=6mm tengely, potenciométer - VISHAY

Name: PE30L0FR103MAB - 10KOhm Cermet LIN 3W 150ppm D=6mm tengely, potenciométer - VISHAY
Brand: VISHAY (SFERNICE)
SKU: 07-02-63
Price: 29.5192 EUR
Availability: InStock

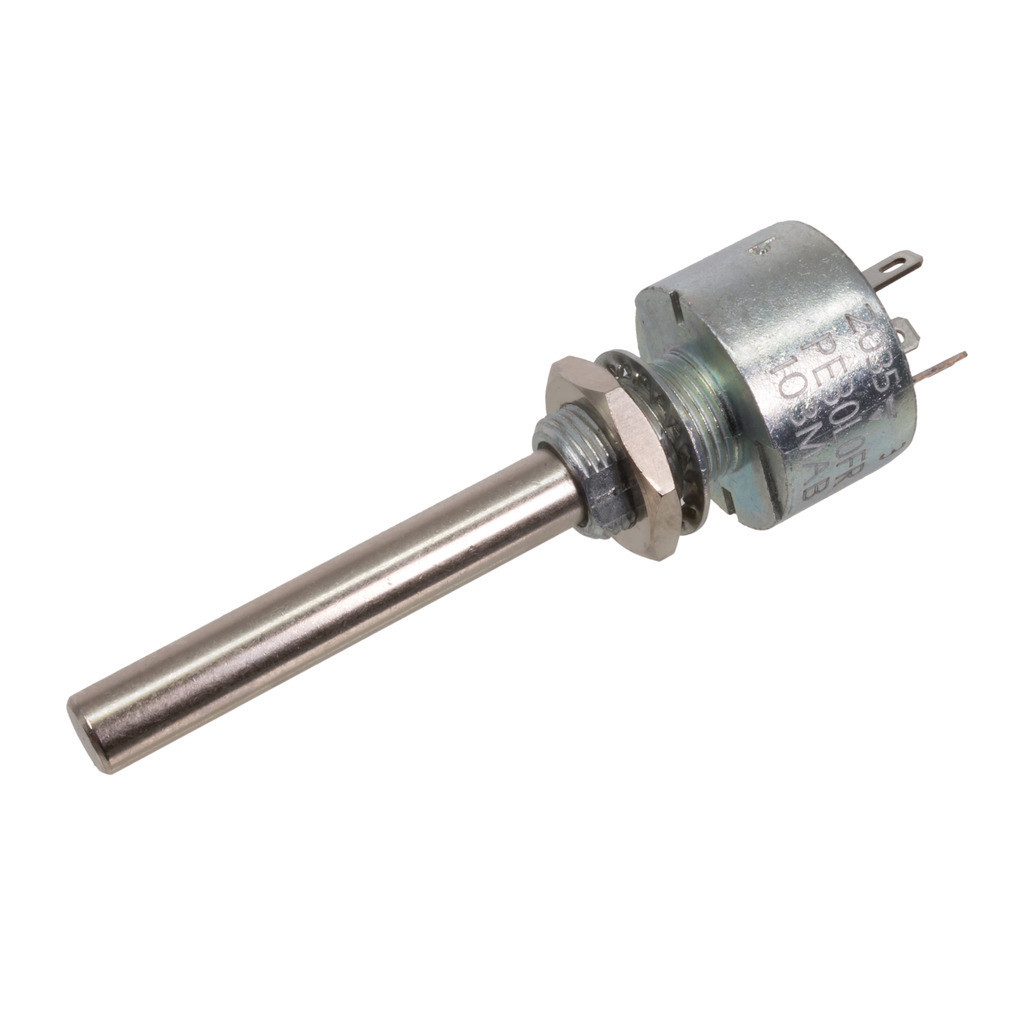

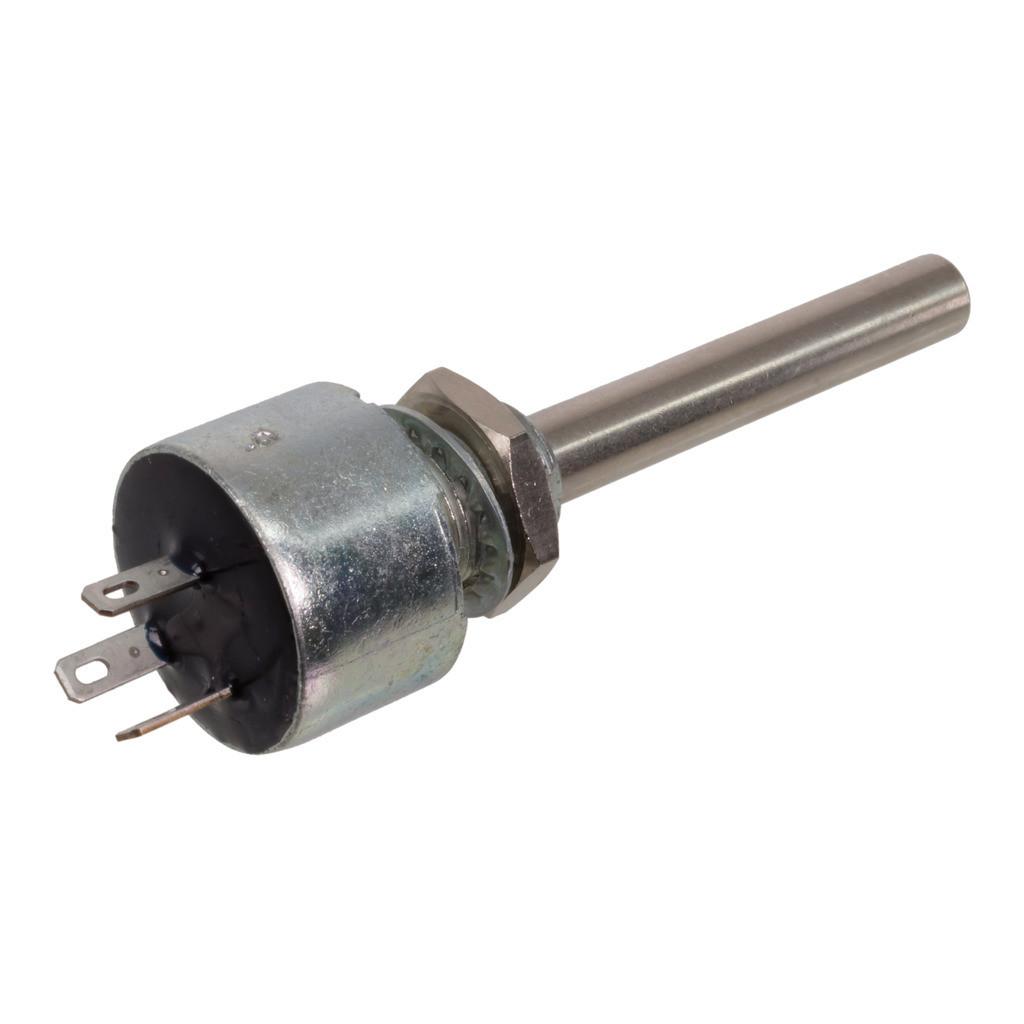

The picture is for illustration purposes only. Please read the product description!

Potentiometer Accessories

In stock 28 pcs

23.2435 €+ VAT
29.5192 € incl. VAT

Cermet Potentiometer, 10KOhm linear, 3W, 150ppm, D=6mm tengely

Manufacturer code:

PE30L0FR103MAB

Manufacturer:

VISHAY (SFERNICE)

Datasheet:

pe30.pdf

Group:

Rotary Potentiometers

Component Family:

Mono potentiometer, 6mm axis

Product Range:

PE30

Resistance R[Ohm]:

10 KOhm

Case Style:

Front panel mount

Case:

mountable

Termination Type:

Through-hole technology

Number of Pins:

Nominal Power [W @ °C]:

3 W @ 70 °C

Tolerance [ % ]:

±20 %

Operating Voltage [V], Max.:

300 V

Insulation Voltage [V], Max.:

1500 V

Temperature Coefficient, T.C. [ppm/°C]:

+150 ppm/°C

Number of turns:

Rotation Mechanical Angle [°]:

270° ± 10°

Characteristic:

Linear (A)

Shaft Diameter [mm]:

6 mm

Shaft Material:

Metall

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

Product variations:

1KΩ

4.7KΩ

10KΩ

47KΩ

100KΩ

pcs

Our Warehouse

28 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

32 g/pcs
