PE30L0FR102MAB - 1KOhm Cermet LIN 3W 150ppm D=6mm tengely, potenciométer - VISHAY
The picture is for illustration purposes only. Please read the product description!
Related Categories:
Out of stock

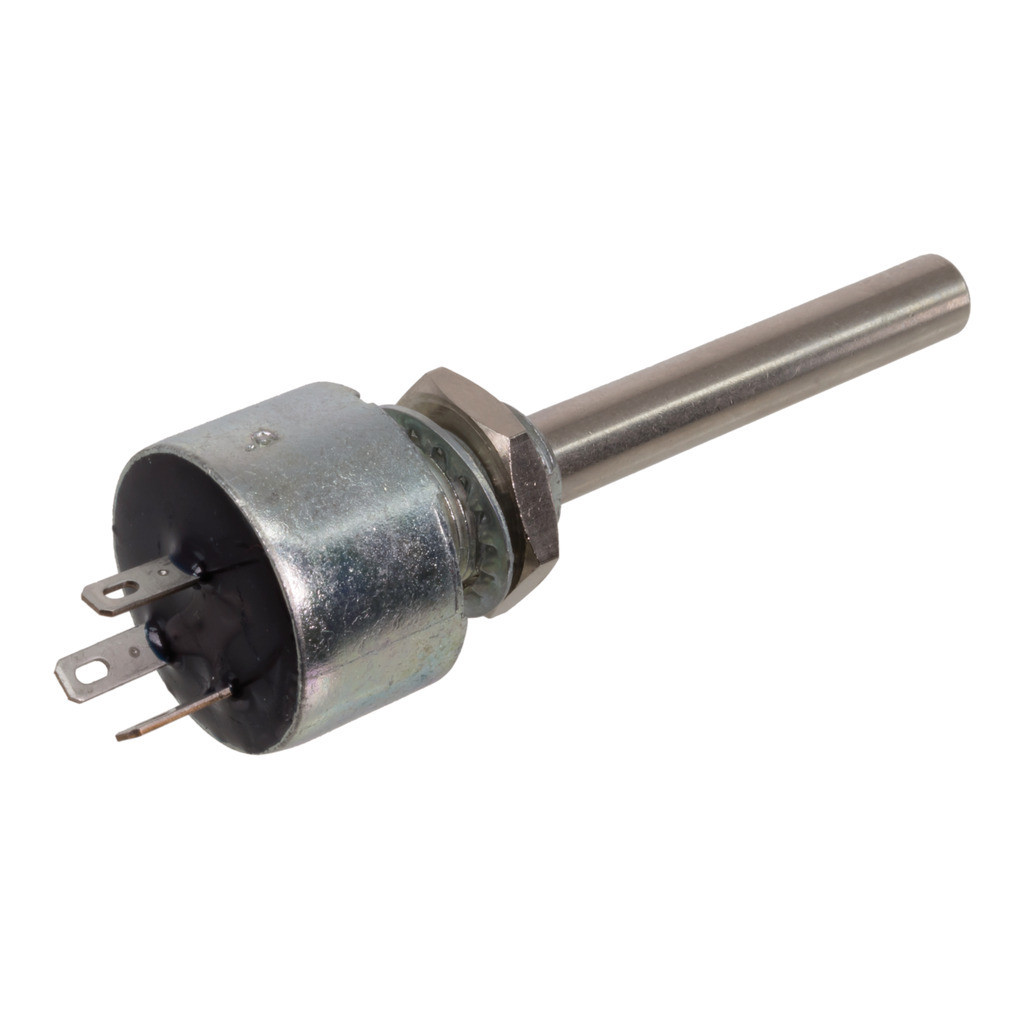

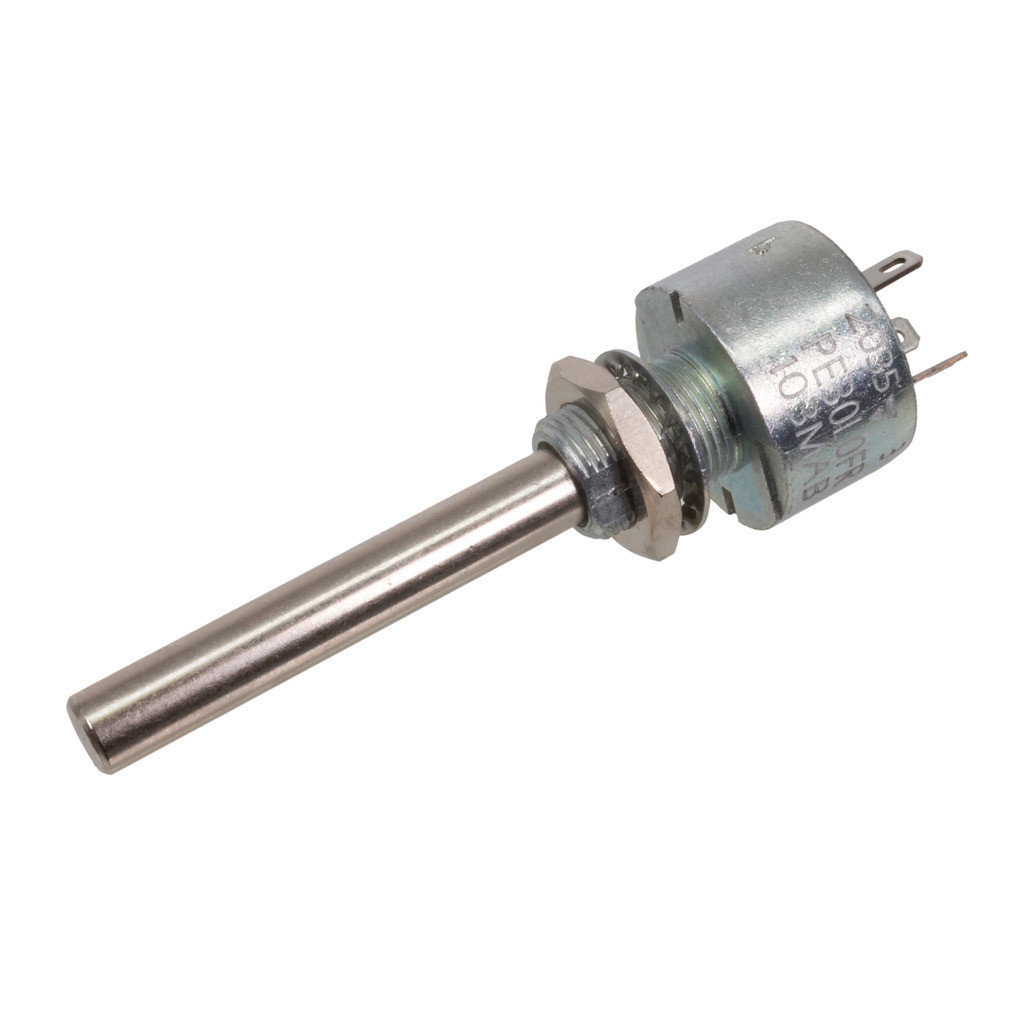

Cermet Potentiometer, 1KOhm linear, 3W, 150ppm, D=6mm tengely
Manufacturer code:
PE30L0FR102MAB
Manufacturer:
Datasheet:
Group:
Rotary Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Front panel mount
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
3 W @ 70 °C
Tolerance [ % ]:
±20 %
Operating Voltage [V], Max.:
300 V
Insulation Voltage [V], Max.:
1500 V
Temperature Coefficient, T.C. [ppm/°C]:
+150 ppm/°C
Number of turns:
1
Rotation Mechanical Angle [°]:
270° ± 10°
Characteristic:
Linear (A)
Shaft Diameter [mm]:
6 mm
Shaft Material:
Metall
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Data
Weight:
32 g/pcs
