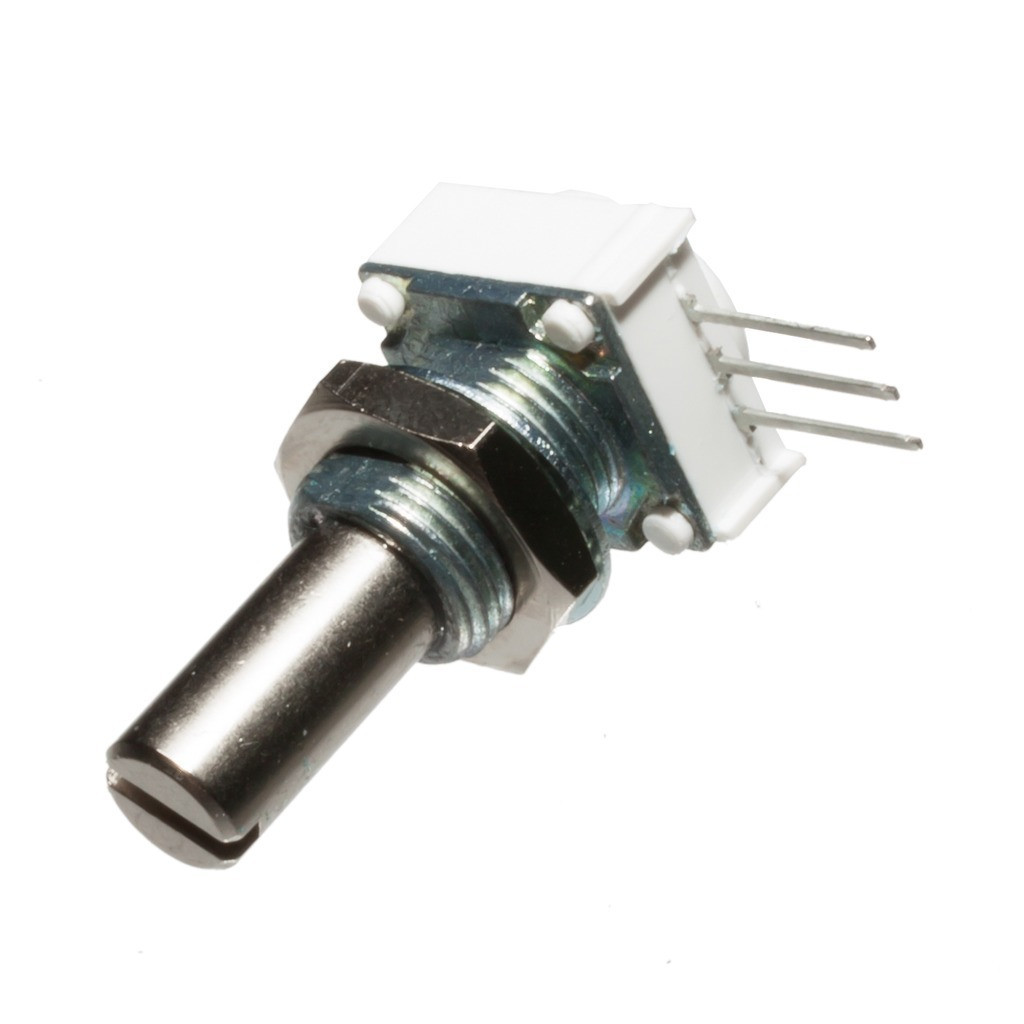

6AMC 250 Ohm Potentiometer 1W Cermet - VISHAY (SPECTROL) - 14910F0GJSX10251KA

17.7807 €+ VAT
22.5815 € incl. VAT

6AMC 250 Ohm Potentiometer 1W Cermet - VISHAY (SPECTROL) - 14910F0GJSX10251KA

Name: 6AMC 250 Ohm Potentiometer 1W Cermet - VISHAY (SPECTROL) - 14910F0GJSX10251KA
Brand: VISHAY (SPECTROL)
SKU: 07-02-57
Price: 22.5815 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

Potentiometer Accessories

In stock 55 pcs

17.7807 €+ VAT
22.5815 € incl. VAT

Rotary Potentiometer, LIN-mono CERMET D=6.35mm Spindle

Manufacturer code:

14910F0GJSX10251KA

Manufacturer:

VISHAY (SPECTROL)

Datasheet:

Spectrol_148_149.pdf

Group:

Rotary Potentiometers

Component Family:

6.35 mm axis, mono, Cermet potentiometer

Product Range:

149

Resistance R[Ohm]:

250 Ohm

Case Style:

Front panel mount

Case:

Plastic

Termination Type:

Solder tab

Number of Pins:

Nominal Power [W @ °C]:

1 W @ 70 °C

Tolerance [ % ]:

±10 %

Operating Voltage [V], Max.:

350 V

Insulation Voltage [V], Max.:

750 V

Temperature Coefficient, T.C. [ppm/°C]:

±150 ppm/°C

Number of turns:

Rotation Mechanical Angle [°]:

300° ± 5°

Dimension Parameters:

D=12.7mm, H=12.4+22.2 mm

Characteristic:

Linear (A)

Shaft Diameter [mm]:

6.35 mm

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

Product variations:

250Ω

1KΩ

2.5KΩ

5KΩ

10KΩ

50KΩ

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

14,38 €

18,26 €

Our Warehouse

55 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

5.389 g/pcs
