6AMC 5 KOhm Potentiometer - VISHAY (SPECTROL) - 14910F0GJSX10502KA

13.4621 €+ VAT
17.0968 € incl. VAT

6AMC 5 KOhm Potentiometer - VISHAY (SPECTROL) - 14910F0GJSX10502KA

Name: 6AMC 5 KOhm Potentiometer - VISHAY (SPECTROL) - 14910F0GJSX10502KA
Brand: VISHAY (SPECTROL)
SKU: 07-01-99
Price: 17.0968 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

Potentiometer Accessories

In stock 271 pcs

13.4621 €+ VAT
17.0968 € incl. VAT

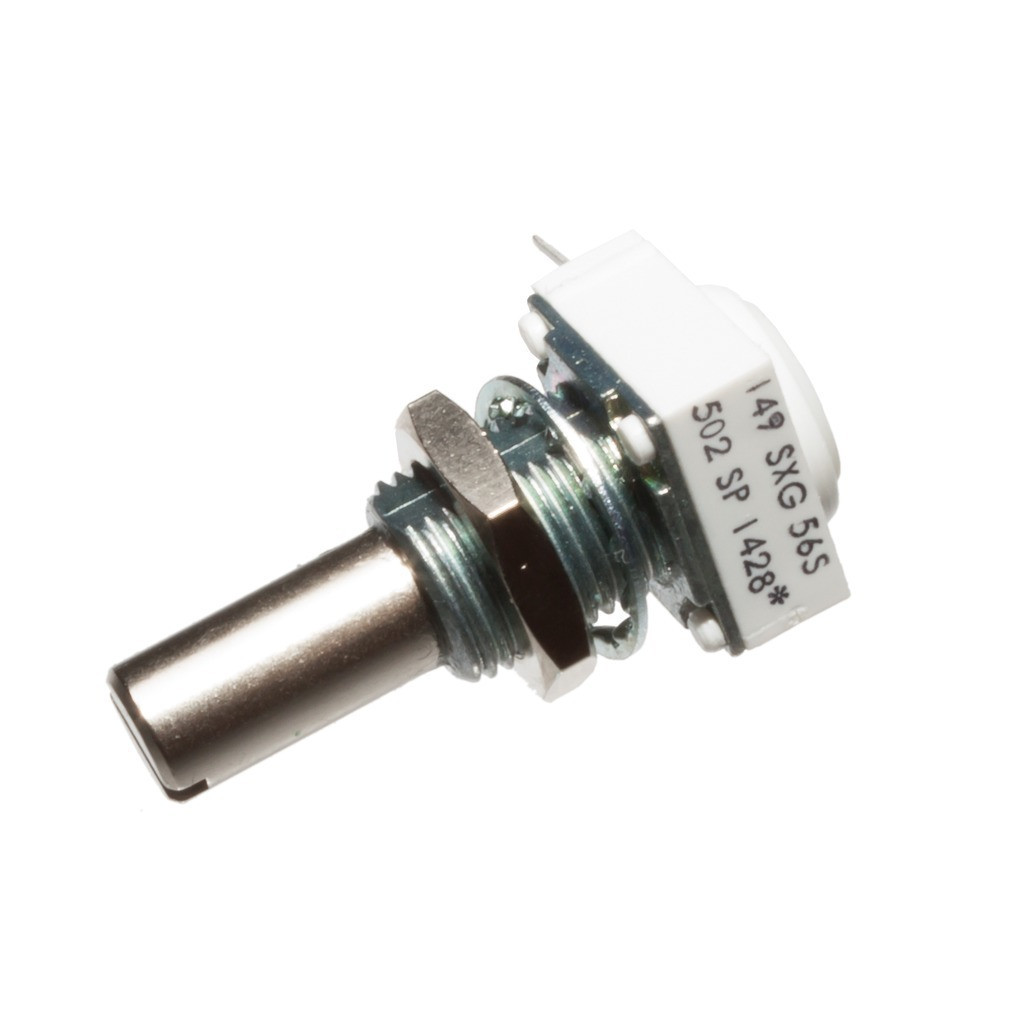

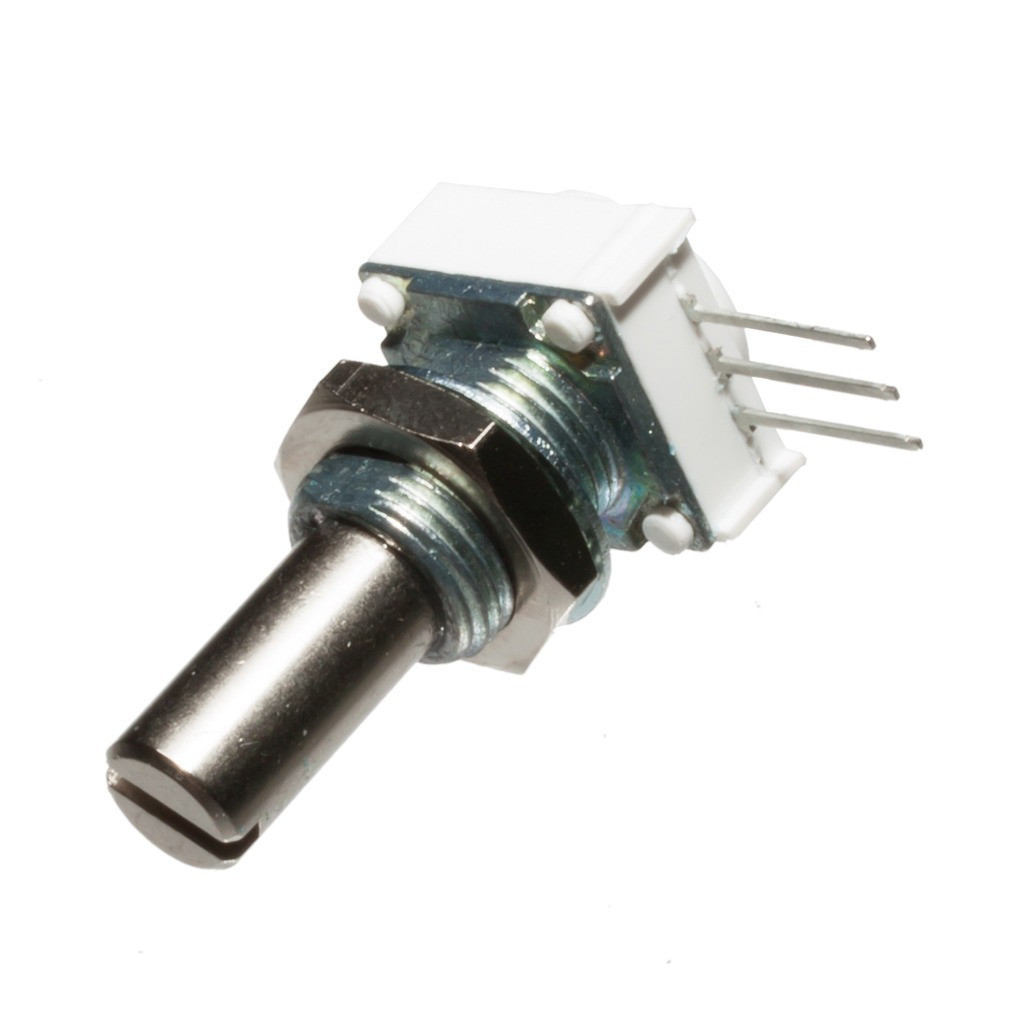

Rotary Potentiometer, LIN-mono CERMET D=6,3mm Spindle

Manufacturer code:

14910F0GJSX10502KA

Manufacturer:

VISHAY (SPECTROL)

Datasheet:

Vishay_149.pdf

Group:

Rotary Potentiometers

Component Family:

Mono potentiometer, 6,35mm axis

Product Range:

149

Resistance R[Ohm]:

5 KOhm

Case Style:

Through-hole (THT), front panel mount

Case:

Plastic, square

Termination Type:

Through-hole technology

Number of Pins:

Nominal Power [W @ °C]:

1 W @ 70 °C

Tolerance [ % ]:

±10 %

Operating Voltage [V], Max.:

350 V

Insulation Voltage [V], Max.:

750 V

Temperature Coefficient, T.C. [ppm/°C]:

±150 ppm/°C

Number of turns:

Rotation Mechanical Angle [°]:

300° ± 10°

Dimension Parameters:

12.5x12.5 mm

Characteristic:

Linear (A)

Shaft Diameter [mm]:

6.35 mm

Shaft Material:

Metall

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

Product variations:

250Ω

1KΩ

2.5KΩ

5KΩ

10KΩ

50KΩ

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

10,73 €

13,63 €

Our Warehouse

271 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_A_043.pdf

Weight:

5.386 g/pcs
