500 Ohm Potentiometer 534-serie - VISHAY (SPECTROL) - 534B1501JC

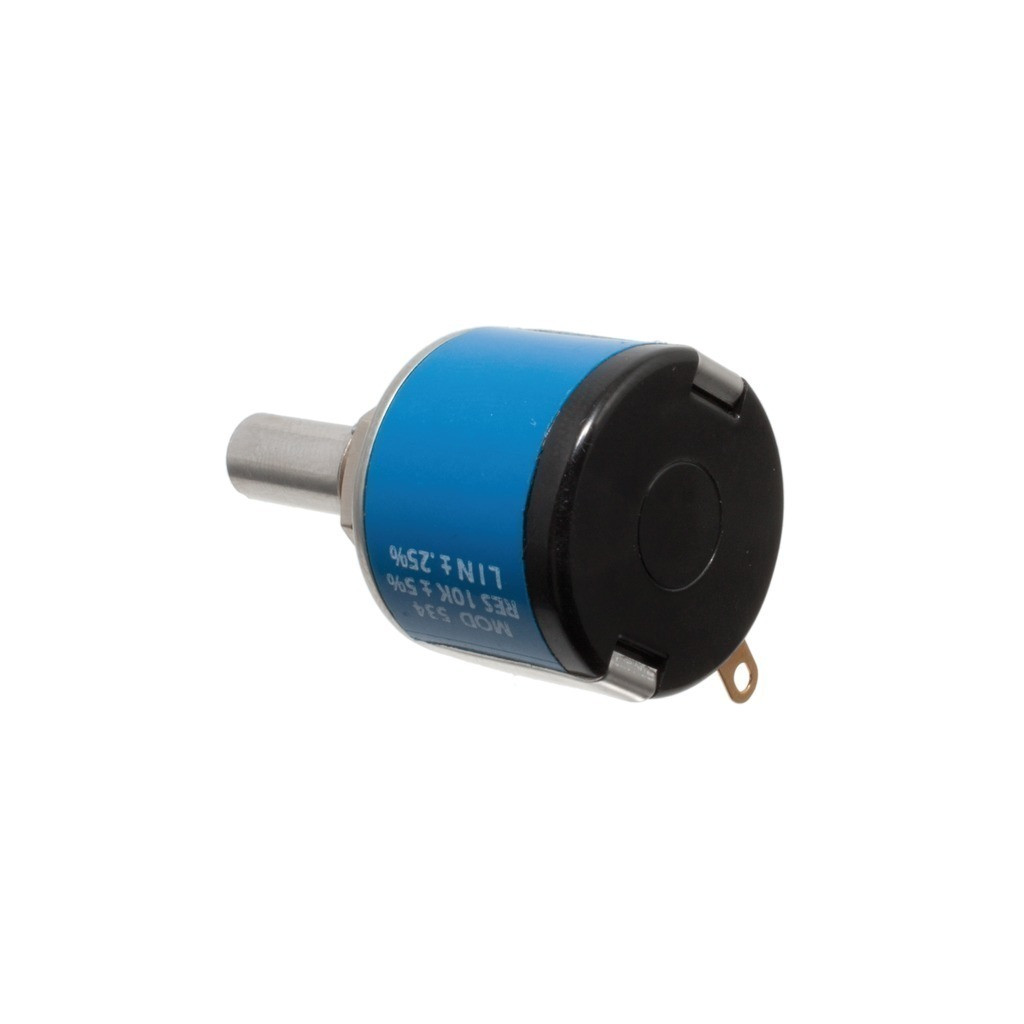

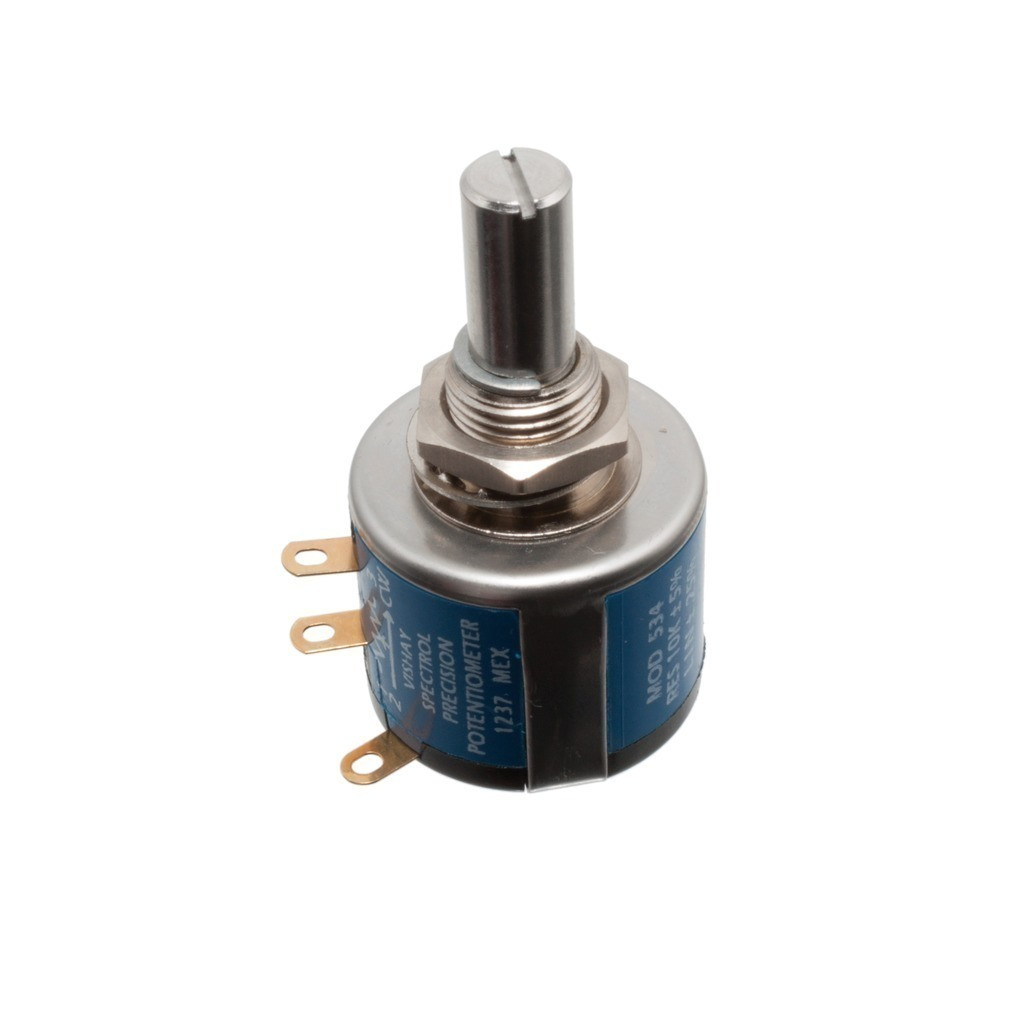

The picture is for illustration purposes only. Please read the product description!
Related Categories:
Out of stock
Rotary Potentiometer, 10-Turn 534-Serie
Manufacturer code:
534B1501JC
Manufacturer:
Datasheet:
Group:
Rotary Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Front panel mount
Case:
Termination Type:
Solder tab
Number of Pins:
3
Nominal Power [W @ °C]:
2 W @ 70 °C
Tolerance [ % ]:
±5 %
Operating Voltage [V], Max.:
31 V
Insulation Voltage [V], Max.:
1 kV
Temperature Coefficient, T.C. [ppm/°C]:
±20 ppm/°C
Number of turns:
10
Rotation Mechanical Angle [°]:
3600° +10°/-0°
Dimension Parameters:
D=22.2 mm,H=39.7 mm
Characteristic:
Linear (A)
Shaft Diameter [mm]:
6.35 mm
Shaft Material:
Metall
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Customers also bought this
Data
Weight:
21.26 g/pcs
