100 KOhm Potentiometer 534-serie - VISHAY (SPECTROL) - 534B1104JC

8 502.91 Ft+ VAT
10 798.7 Ft incl. VAT

100 KOhm Potentiometer 534-serie - VISHAY (SPECTROL) - 534B1104JC

Name: 100 KOhm Potentiometer 534-serie - VISHAY (SPECTROL) - 534B1104JC
Brand: VISHAY (SPECTROL)
SKU: 07-00-90
Price: 10798.7 HUF
Availability: InStock

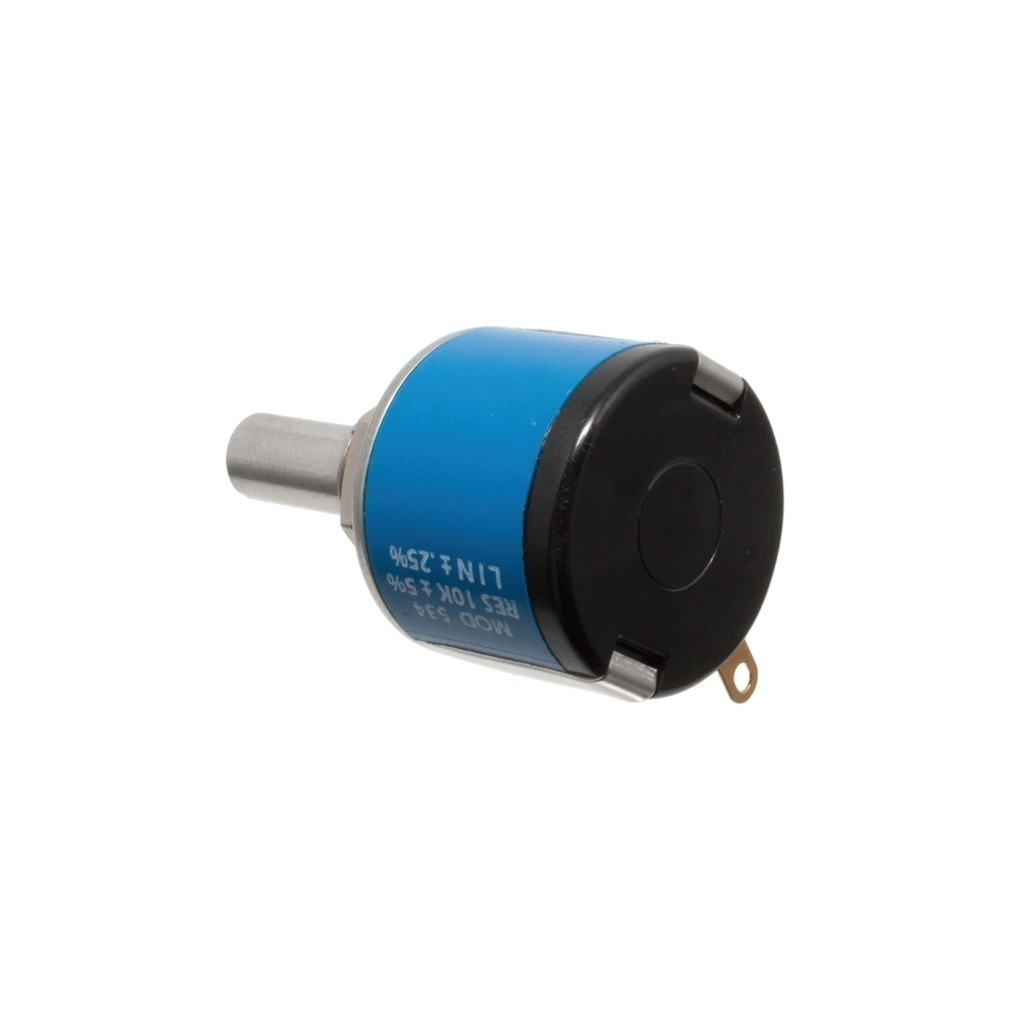

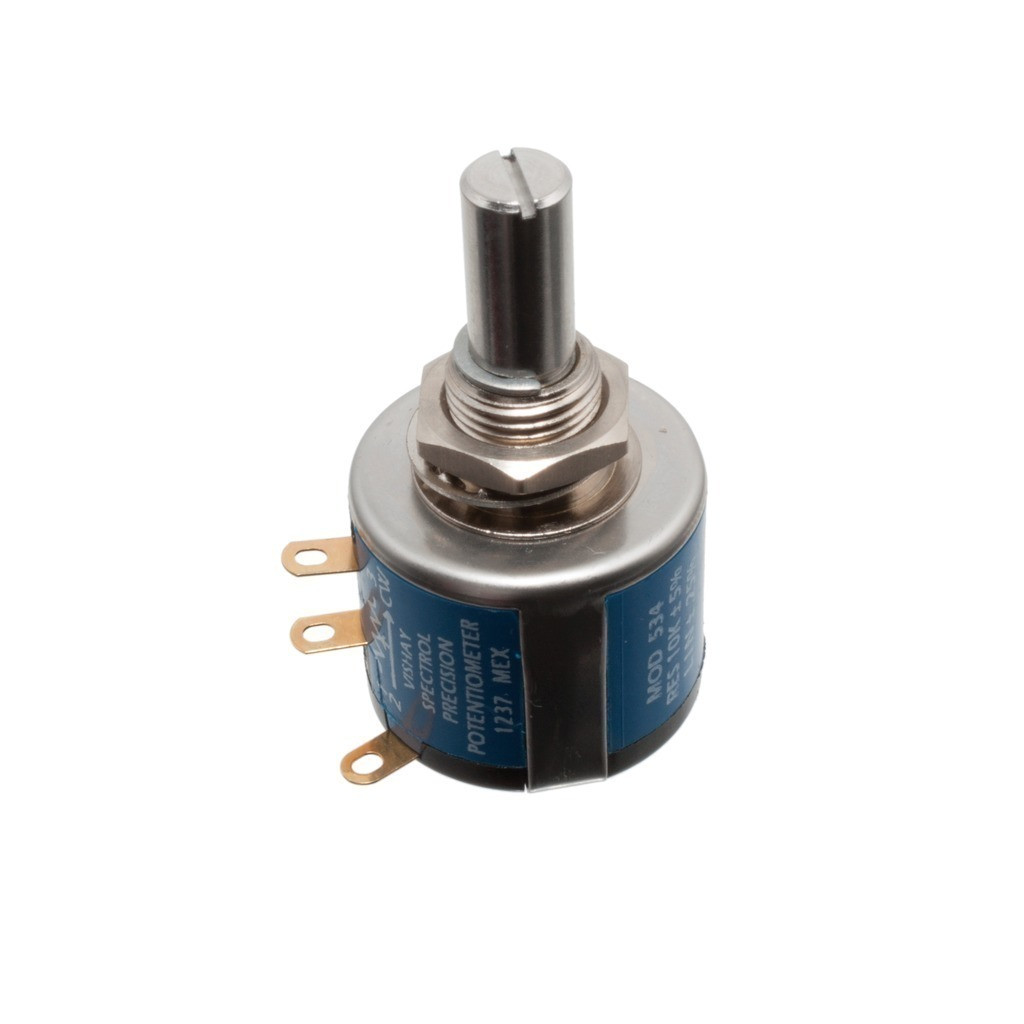

The picture is for illustration purposes only. Please read the product description!

In stock 11 pcs

8 502.91 Ft+ VAT
10 798.7 Ft incl. VAT

Rotary Potentiometer, 10-Turn 534-Serie

Manufacturer code:

534B1104JC

Manufacturer:

VISHAY (SPECTROL)

Datasheet:

Vishay_534.pdf

Group:

Rotary Potentiometers

Component Family:

Wirewound potentiometer, multiturn

Product Range:

534

Resistance R[Ohm]:

100 KOhm

Case Style:

Front panel mount

Case:

Metal, closed

Termination Type:

Solder tab

Number of Pins:

Nominal Power [W @ °C]:

2 W @ 70 °C

Tolerance [ % ]:

±5 %

Operating Voltage [V], Max.:

447 V

Insulation Voltage [V], Max.:

1 kV

Temperature Coefficient, T.C. [ppm/°C]:

±20 ppm/°C

Number of turns:

Rotation Mechanical Angle [°]:

3600° +10°/-0°

Dimension Parameters:

D=22.2 mm,H=39.7 mm

Characteristic:

Linear (A)

Shaft Diameter [mm]:

6.35 mm

Shaft Material:

Metall

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net [HUF]

Gross [HUF]

6 298,53 Ft

7 999,13 Ft

Our Warehouse

11 pcs

Available for immediate delivery

Info

Additional Datasheet:

RETKAT2012_A_044.pdf

Weight:

21.26 g/pcs
