Q10,0-JXS53-12-30/30-LF - 10MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH

1.6945 €+ VAT
2.152 € incl. VAT

Q10,0-JXS53-12-30/30-LF - 10MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH

Name: Q10,0-JXS53-12-30/30-LF - 10MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH
Brand: JAUCH
SKU: 62-02-71
Price: 2.152 EUR
Availability: InStock

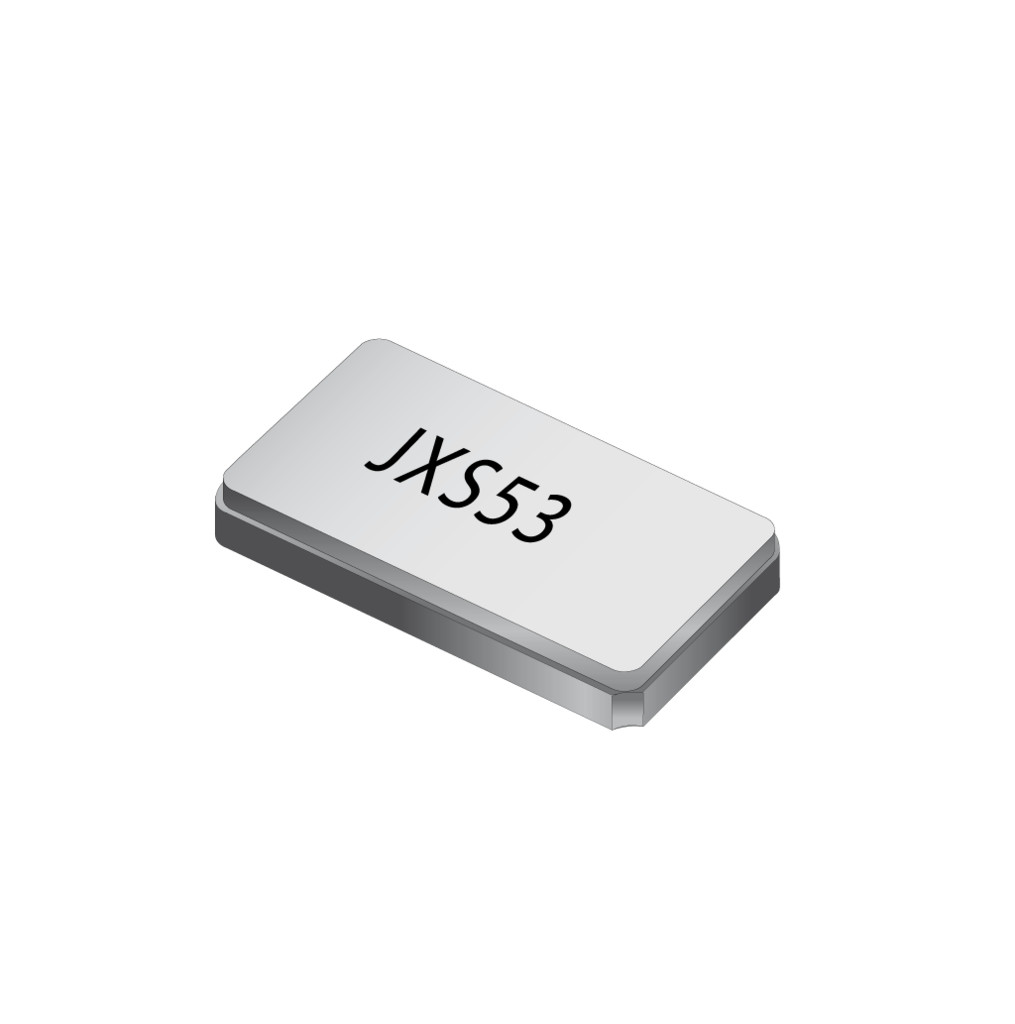

The picture is for illustration purposes only. Please read the product description!

In stock 643 pcs

1.6945 €+ VAT
2.152 € incl. VAT

Quartz Crystal, 30ppm SMD Cl=12pF JXS53

Manufacturer code:

Q10,0-JXS53-12-30/30-LF

Manufacturer:

JAUCH

Datasheet:

JXS53-150213.pdf

Group:

Crystals

Component Family:

Crystal, SMD JXS53-series

Product Range:

JXS53

Case Style:

Surface Mount (SMD)

Case:

JXS53

Termination Type:

Surface mount (SMD)

Number of Pins:

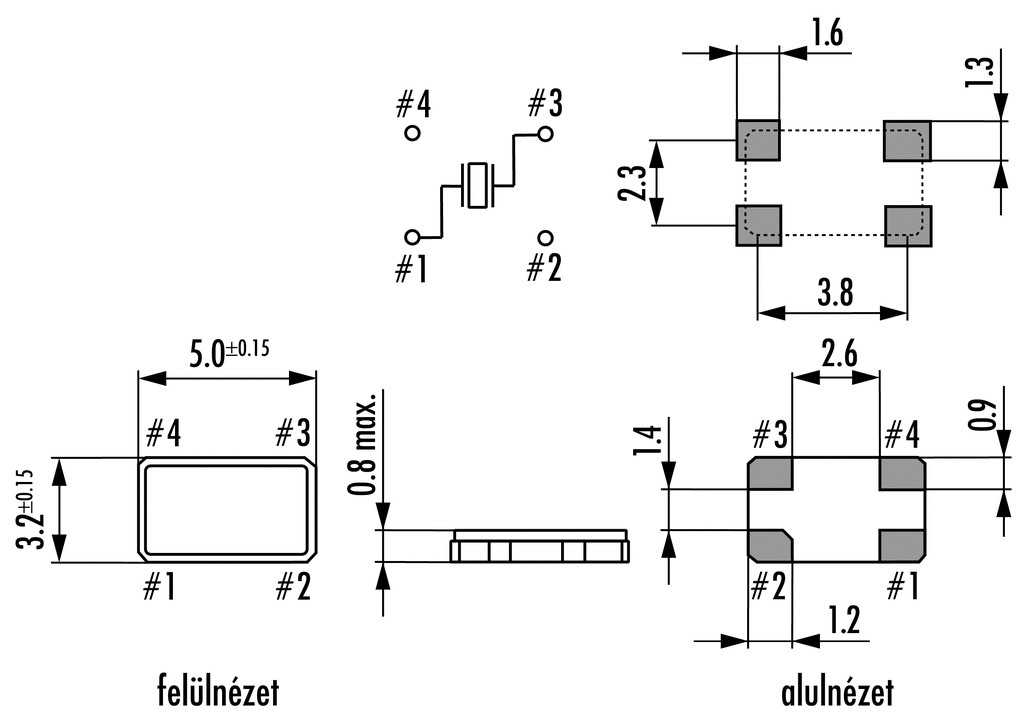

External Length [mm]:

5 mm

External Width [mm]:

3.2 mm

External Height [mm]:

0.8 mm

Raster measure:

2.4 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 30 ppm

Load Capacitance [pF]:

12 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

Frequency [MHz]:

8 MHz

25 MHz

16 MHz

10 MHz

24 MHz

20 MHz

17.734475 MHz

32 MHz

11.0592 MHz

13.56 MHz

14.31818 MHz

14.7456 MHz

pcs

Our Warehouse

643 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_004.pdf ROHS_Jauch.pdf

Weight:

0.0848 g/pcs
