Q32,0-JXS53-12-30/30-FU-LF - 32MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH

1.8521 €+ VAT
2.3522 € incl. VAT

Q32,0-JXS53-12-30/30-FU-LF - 32MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH

Name: Q32,0-JXS53-12-30/30-FU-LF - 32MHz 30ppm SMD Cl=12pF JXS53 kvarc - JAUCH
Brand: JAUCH
SKU: 62-02-59
Price: 2.3522 EUR
Availability: InStock

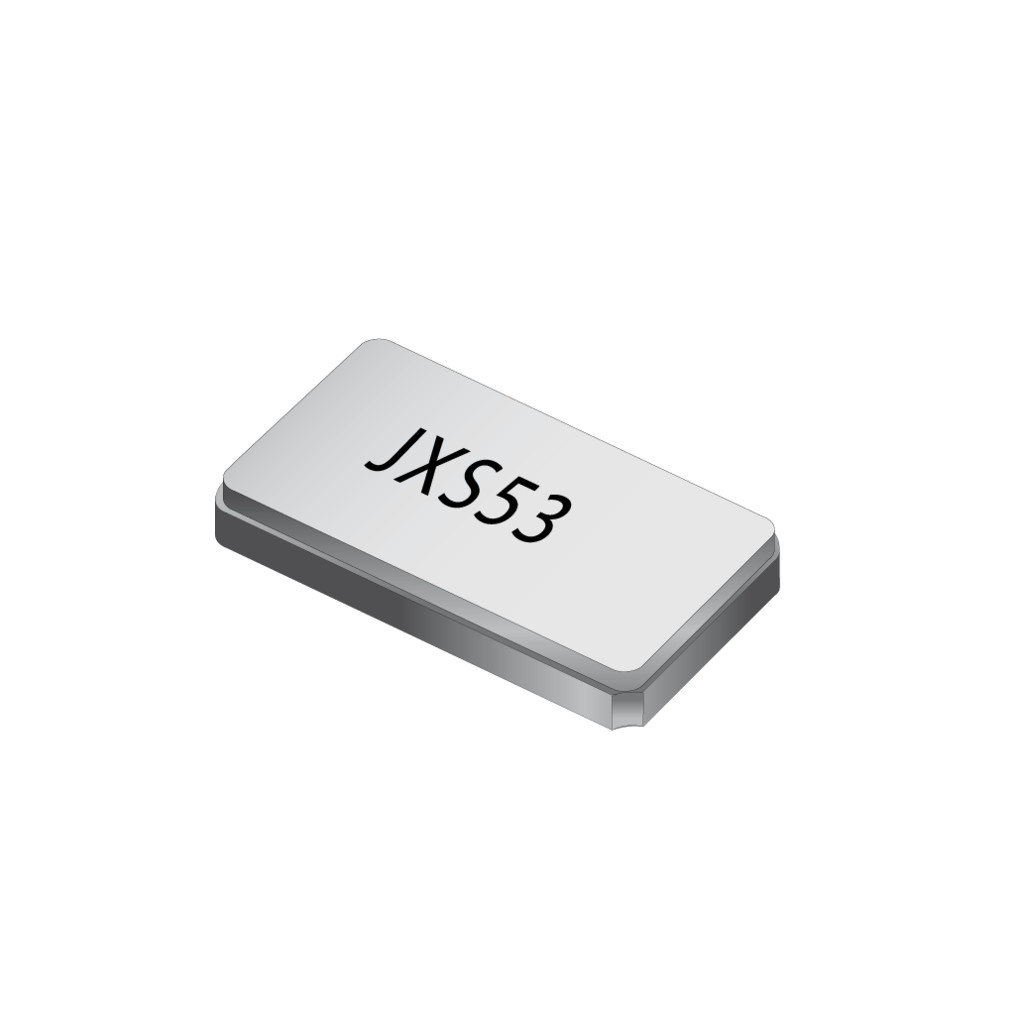

The picture is for illustration purposes only. Please read the product description!

In stock 88 pcs

1.8521 €+ VAT
2.3522 € incl. VAT

Quartz Crystal, 30ppm SMD Cl=12pF JXS53

Manufacturer code:

Q32,0-JXS53-12-30/30-FU-LF

Manufacturer:

JAUCH

Datasheet:

JXS53-150213.pdf

Group:

Crystals

Component Family:

Crystal, SMD JXS53-series

Product Range:

JXS53

Case Style:

Surface Mount (SMD)

Case:

JXS53

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

5 mm

External Width [mm]:

3.2 mm

External Height [mm]:

0.8 mm

Raster measure:

2.4 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 30 ppm

Load Capacitance [pF]:

12 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

Frequency [MHz]:

8 MHz

25 MHz

16 MHz

10 MHz

24 MHz

20 MHz

17.734475 MHz

32 MHz

11.0592 MHz

13.56 MHz

14.31818 MHz

14.7456 MHz

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

1,48 €

1,88 €

Our Warehouse

88 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_004.pdf ROHS_Jauch.pdf
