AKZ1550/18-3.81-GREEN - sorkapocs 18-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK

4.7803 €+ VAT
6.0709 € incl. VAT

AKZ1550/18-3.81-GREEN - sorkapocs 18-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK

Name: AKZ1550/18-3.81-GREEN - sorkapocs 18-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-29-11
Price: 6.0709 EUR
Availability: InStock

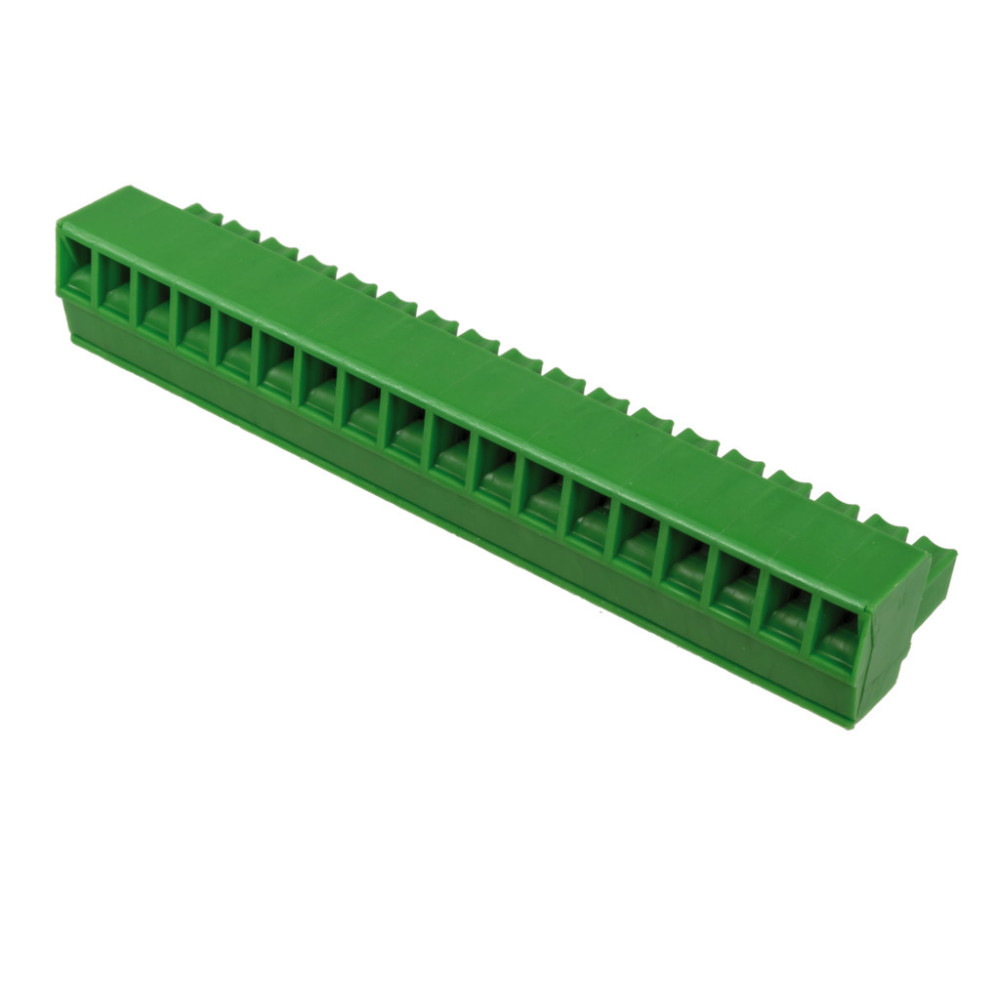

The picture is for illustration purposes only. Please read the product description!

In stock 20 pcs

4.7803 €+ VAT
6.0709 € incl. VAT

Terminal Block, 18-pole Socket for Cable RM1.5 (3.81mm)

Manufacturer code:

AKZ1550/18-3.81-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AKZ1550_..-3.81-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=3.81mm

Product Range:

AKZ1550

Case:

Swinging

Termination Type:

screwy

Insulation Voltage [V], Max.:

2.5 kV

Raster measure:

3.81 mm

Standard:

VDE, UL

Continual Current [A], Max.:

8 A

Connector Configuration:

1-row, axial, side wire

Connector Type:

Terminal block for cable

Voltage [V], Max.:

160 V

Cable Diameter [mm], Max:

1.5 mm²

Cable Diameter [mm], Min.:

0.14 mm²

Contact Material:

Bronze

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Our Warehouse

20 pcs

Available for immediate delivery

Info

Additional Datasheet:

ROHS_PTR2.pdf

Weight:

12.7 g/pcs
