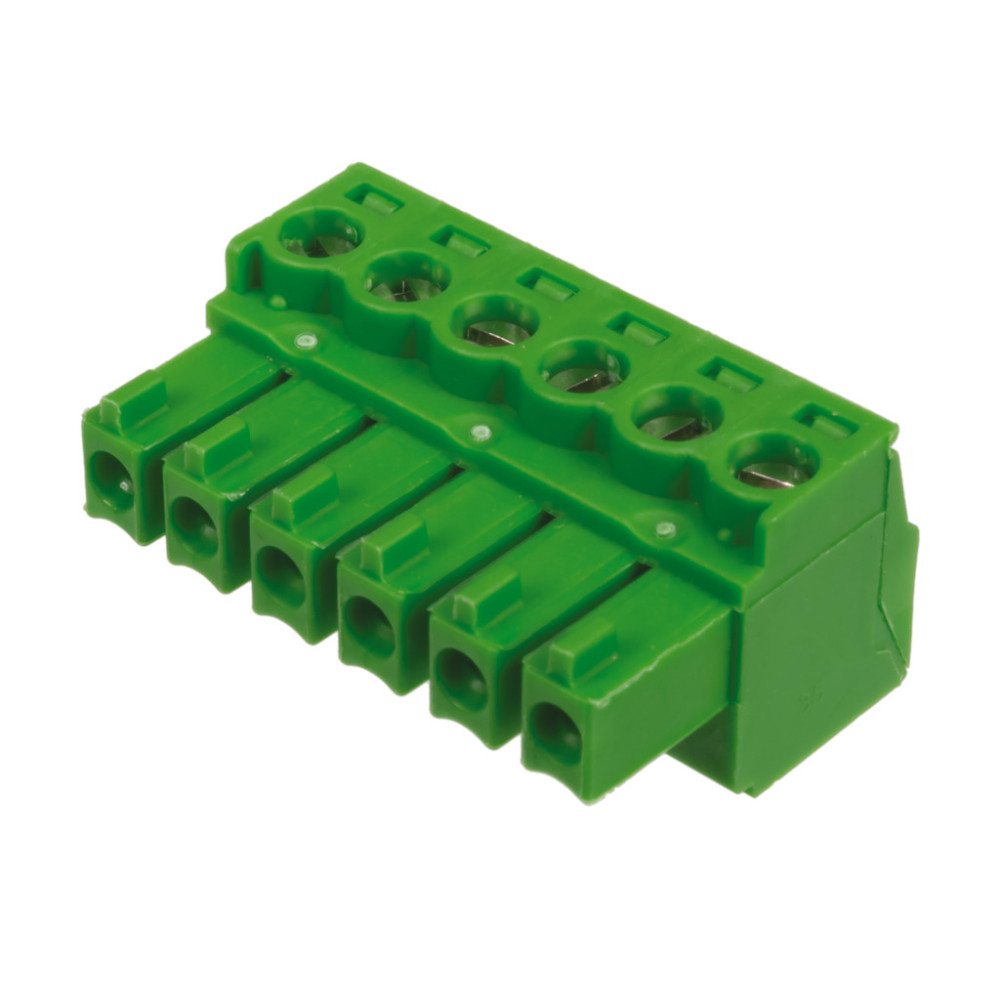

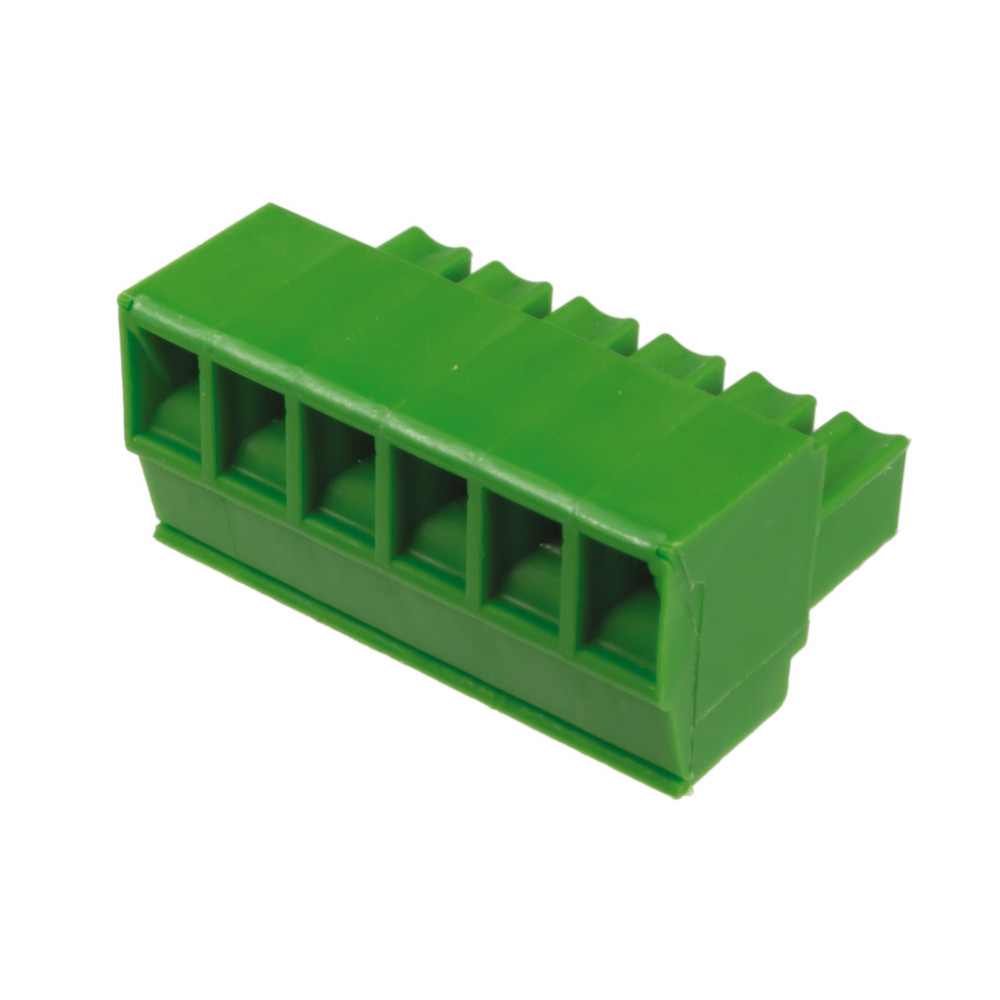

AKZ1550/6-3.81-GREEN - sorkapocs 6-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK

2.1564 €+ VAT
2.7386 € incl. VAT

AKZ1550/6-3.81-GREEN - sorkapocs 6-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK

Name: AKZ1550/6-3.81-GREEN - sorkapocs 6-pólusú lengő aljzat RM1.5 (3.81mm) - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-05-02
Price: 2.7386 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 168 pcs

2.1564 €+ VAT
2.7386 € incl. VAT

Terminal Block, 6-pole Socket for Cable RM1.5 (3.81mm)

Manufacturer code:

AKZ1550/6-3.81-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AKZ1550_..-3.81-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=3.81mm

Product Range:

AKZ1550

Case:

Swinging

Termination Type:

screwy

Insulation Voltage [V], Max.:

2.5 kV

Raster measure:

3.81 mm

Standard:

VDE, UL

Continual Current [A], Max.:

8 A

Connector Configuration:

1-row, axial, side wire

Connector Type:

Terminal block for cable

Voltage [V], Max.:

160 V

Cable Diameter [mm], Max:

1.5 mm²

Cable Diameter [mm], Min.:

0.14 mm²

Contact Material:

Bronze

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

1,80 €

2,28 €

Our Warehouse

168 pcs

Available for immediate delivery

Info

Additional Datasheet:

RETKAT2012_L_031.pdf ROHS_PTR2.pdf

Weight:

4.21 g/pcs
