JS-12N-K-X - jelfogó 12V 660Ohm 250V/8A 1 áramkör - FUJITSU

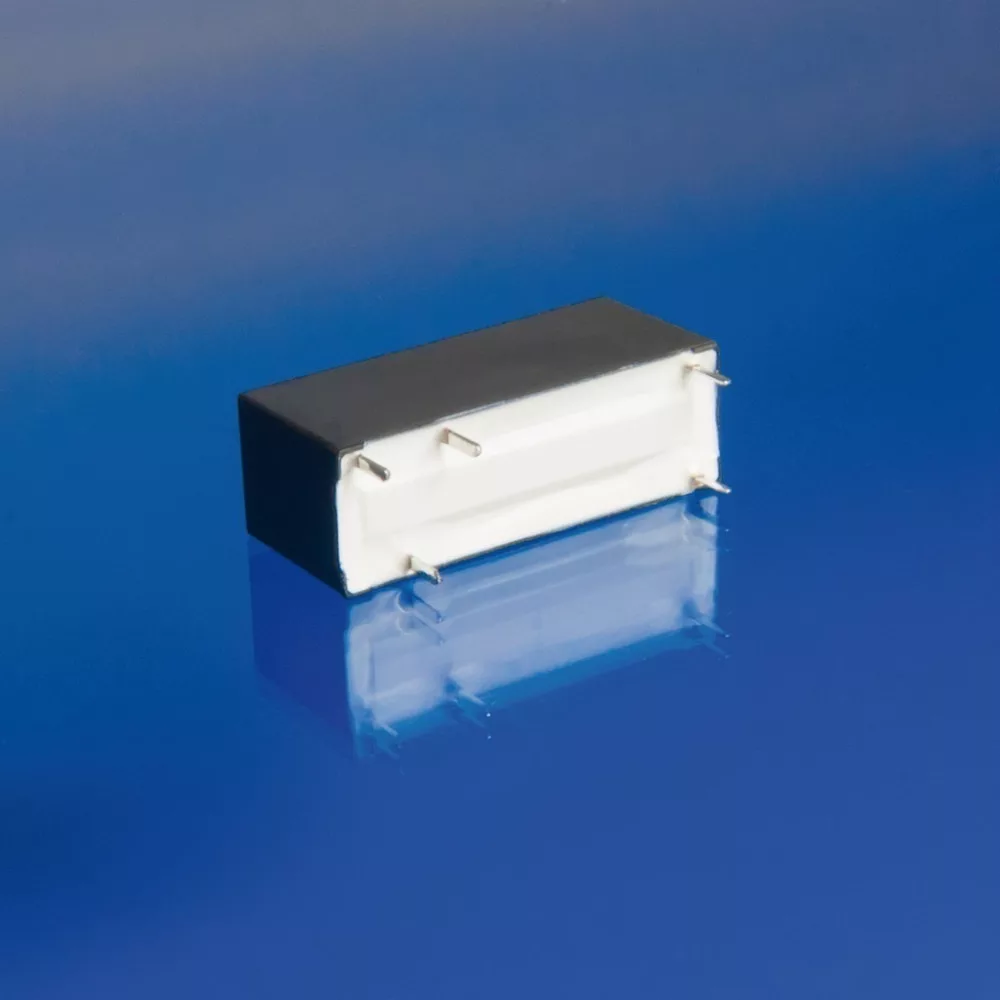

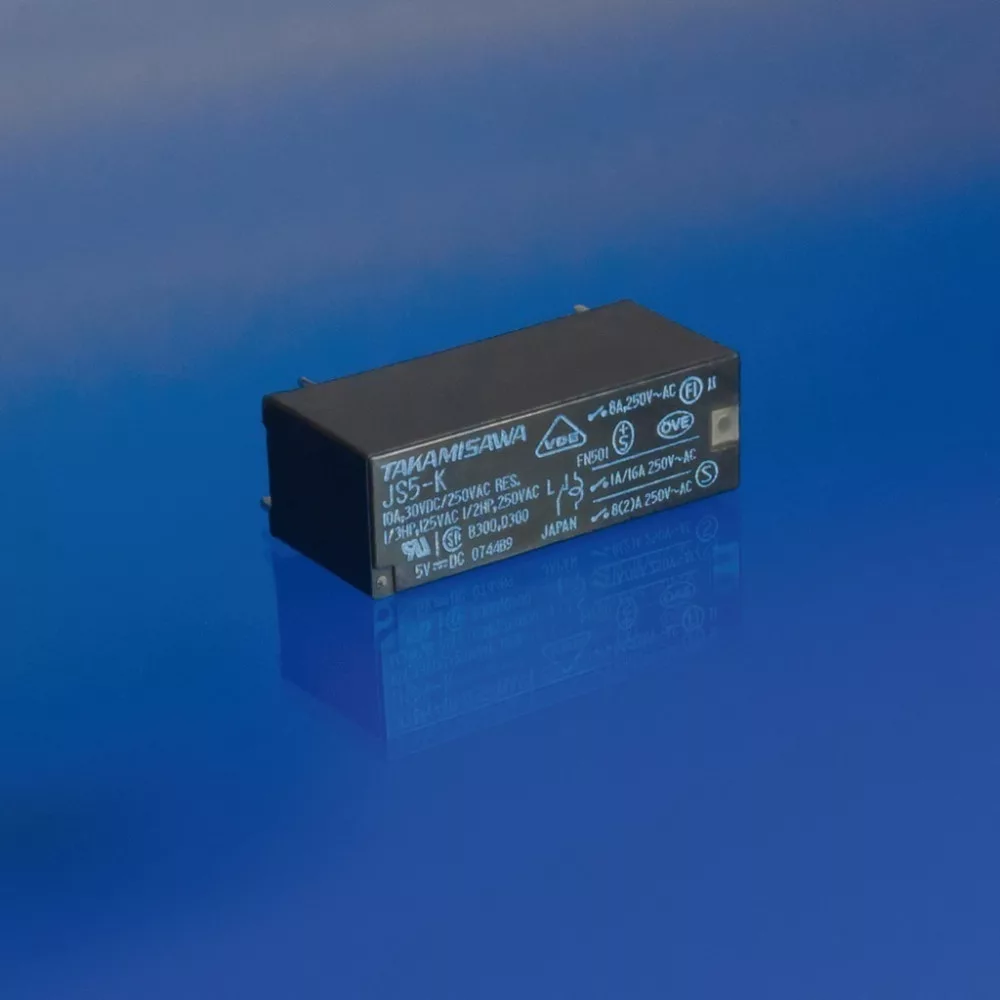

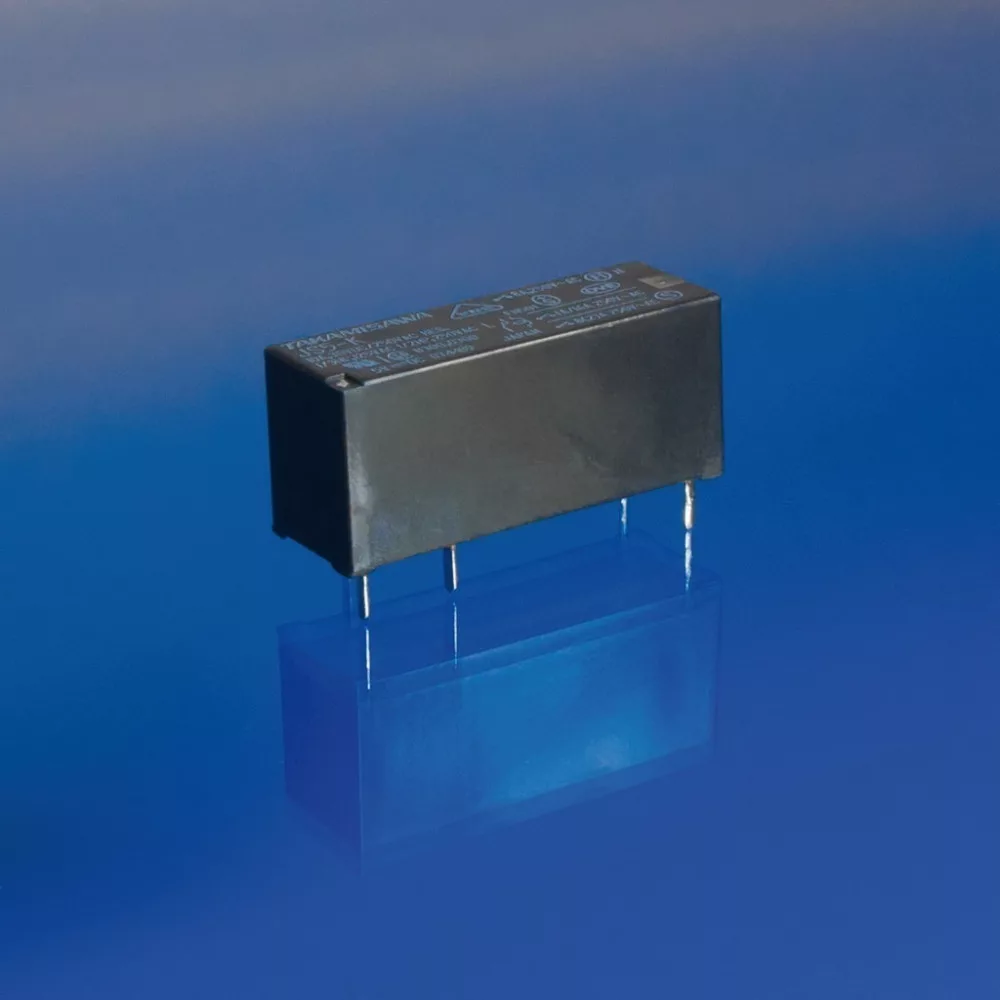

The picture is for illustration purposes only. Please read the product description!
Out of stock
Relay, 12V 660Ohm 250V/8A 1-circuit
Manufacturer code:
JS-12N-K-X
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
5
Dimension Parameters:
29 x 10 x 12.5 mm
Contact Voltage, Max. DC [V]:
300 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
8 A
Contact Voltage, Max. AC [V]:
400 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
660 Ohm
Coil Voltage [V], Min.:
8.5 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
1.2 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Data
Additional Datasheet:
Weight:
8 g/pcs
