G2R-1-E-DC12 - jelfogó 12V 275Ohm 250V/16A 1 áramkör álló SPDT - OMRON
3.554 €+ VAT
4.5136 € incl. VAT
4.5136 € incl. VAT
G2R-1-E-DC12 - jelfogó 12V 275Ohm 250V/16A 1 áramkör álló SPDT - OMRON

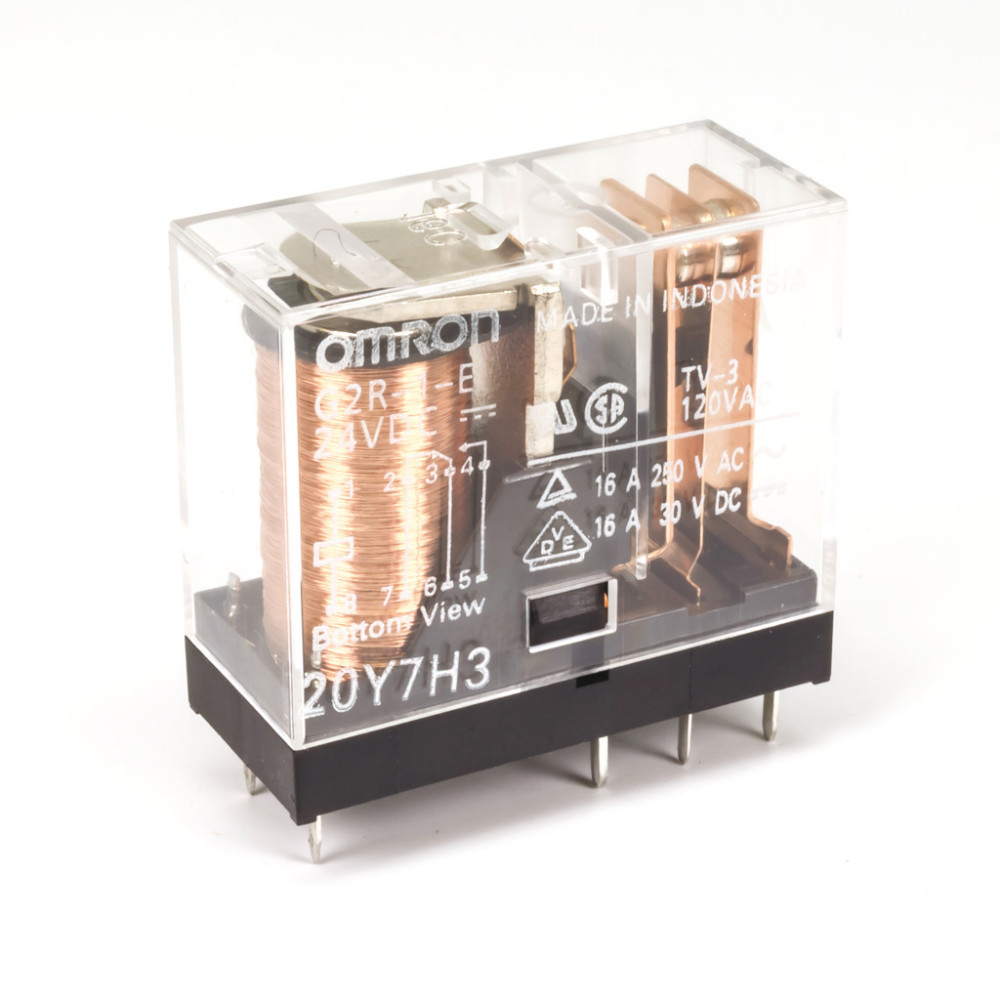

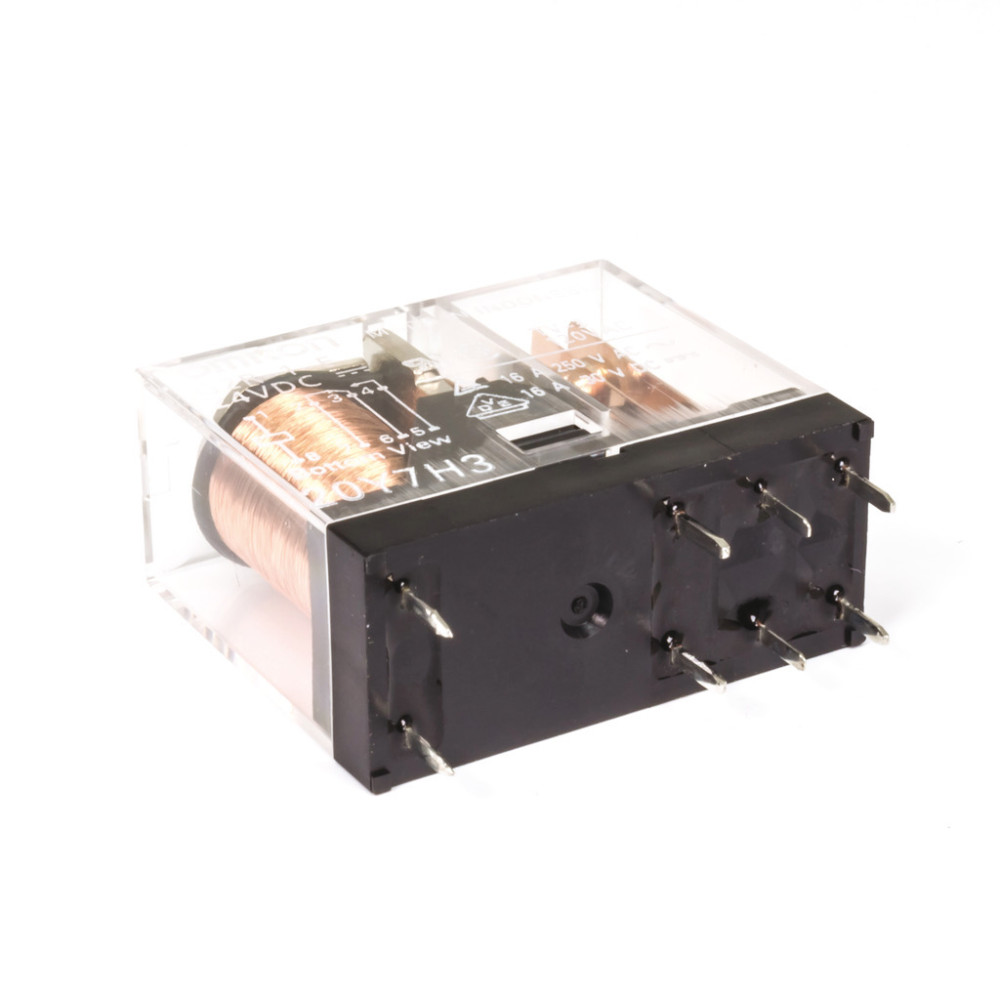

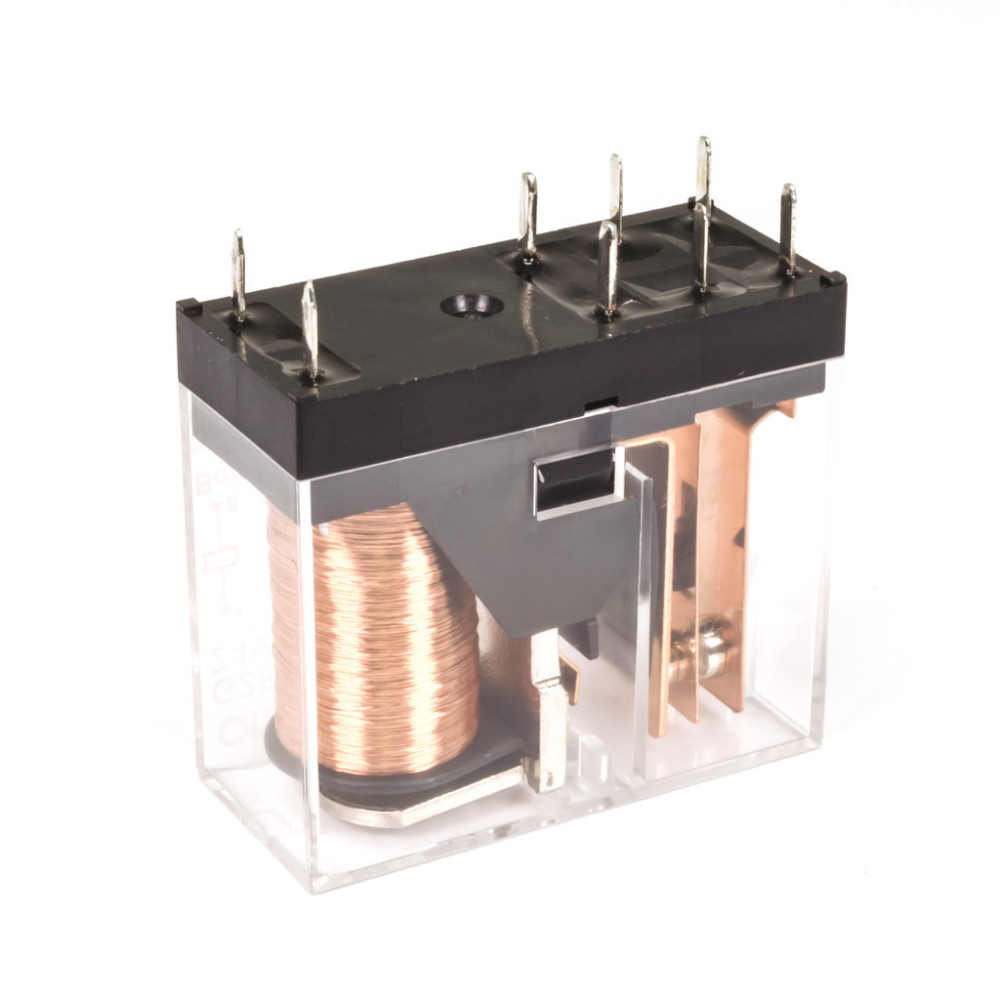

The picture is for illustration purposes only. Please read the product description!
In stock 351 pcs
3.554 €+ VAT
4.5136 € incl. VAT
4.5136 € incl. VAT
Relay, 12V 275Ohm 250V/16A 1-circuit Radial SPDT
Manufacturer code:
G2R-1-E-DC12
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
8
Dimension Parameters:
29 x 25.5 x 13 mm
Contact Voltage, Max. DC [V]:
125 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
16 A
Contact Voltage, Max. AC [V]:
380 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
275 Ohm
Coil Voltage [V], Min.:
8.2 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
1.8 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
Yes
Package deals
Data
Weight:
17 g/pcs
