G5Q-1DC24 - jelfogó 24V 1440Ohm 125V/10A 1-áramkör váltó, SPDT - OMRON
1.4061 €+ VAT
1.7858 € incl. VAT
1.7858 € incl. VAT
G5Q-1DC24 - jelfogó 24V 1440Ohm 125V/10A 1-áramkör váltó, SPDT - OMRON

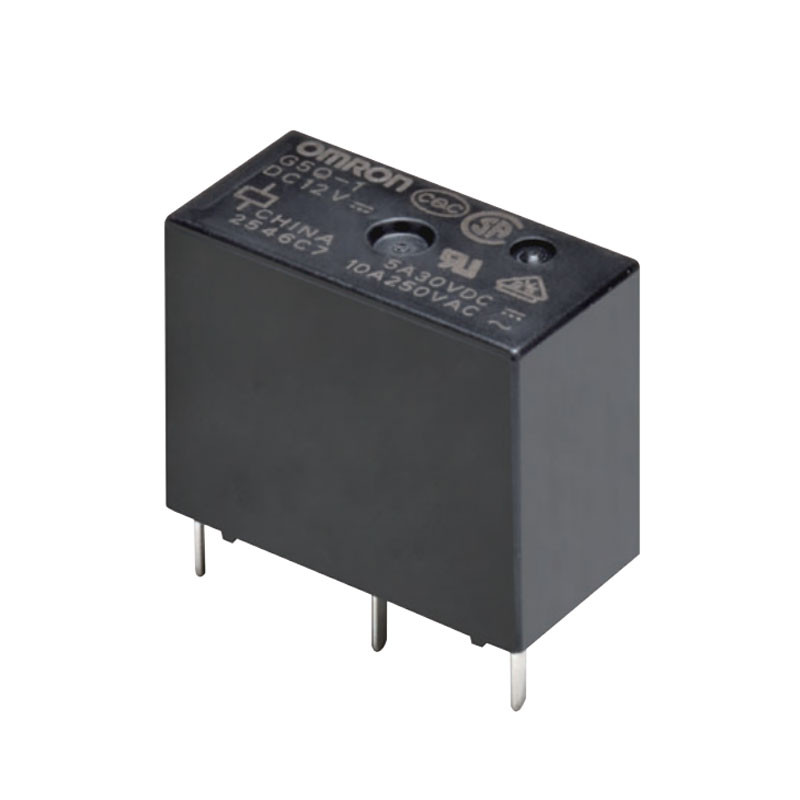

The picture is for illustration purposes only. Please read the product description!
In stock 306 pcs
1.4061 €+ VAT
1.7858 € incl. VAT
1.7858 € incl. VAT
Relay, 24V 1440Ohm 125V/10A 1-circuit, SPDT
Manufacturer code:
G5Q-1DC24
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
5
Dimension Parameters:
20.3 x 10.3 x 16 mm
Contact Voltage, Max. DC [V]:
30 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
10 A
Contact Voltage, Max. AC [V]:
125 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
1440 Ohm
Coil Voltage [V], Min.:
18 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
6 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Data
Weight:
6.5 g/pcs
