JY-12W-K - jelfogó 12V 720Ohm 250V/3A 1 áramkör záró, kétpogácsás - FUJITSU
2.7296 €+ VAT
3.4666 € incl. VAT
3.4666 € incl. VAT
JY-12W-K - jelfogó 12V 720Ohm 250V/3A 1 áramkör záró, kétpogácsás - FUJITSU

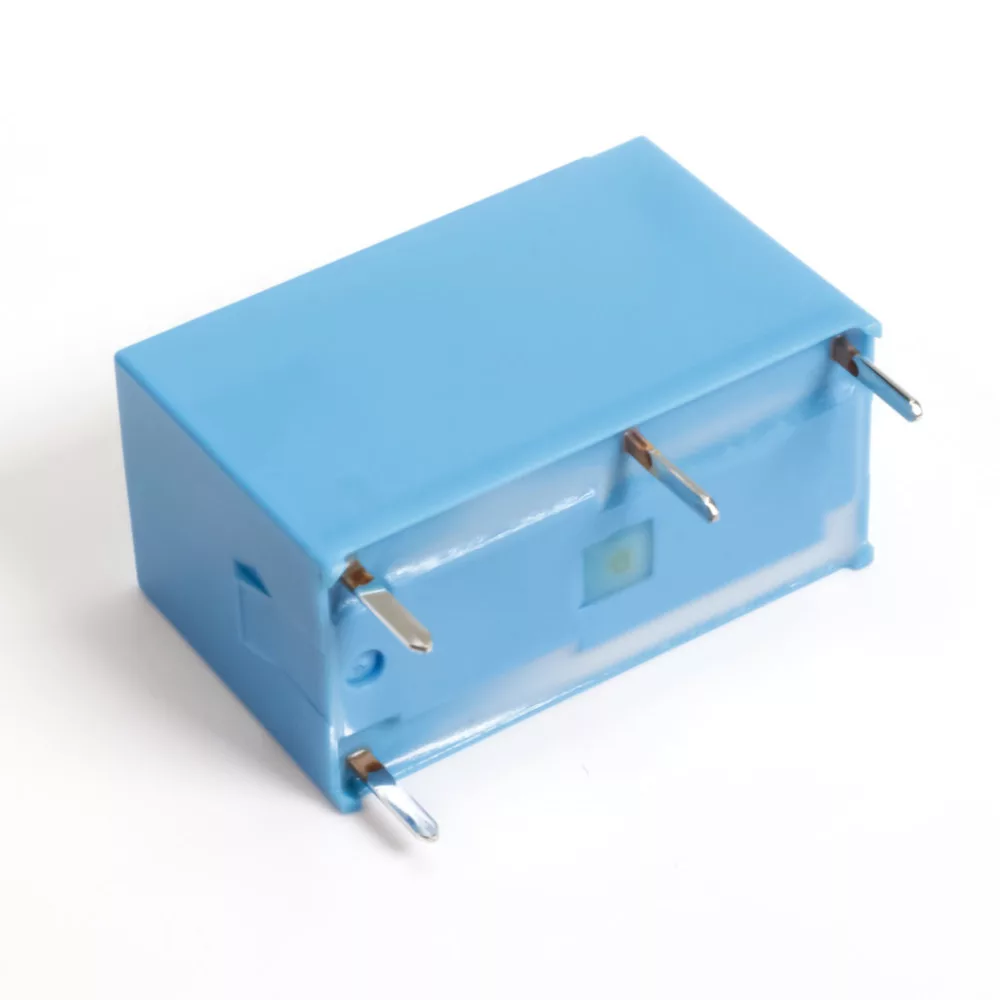

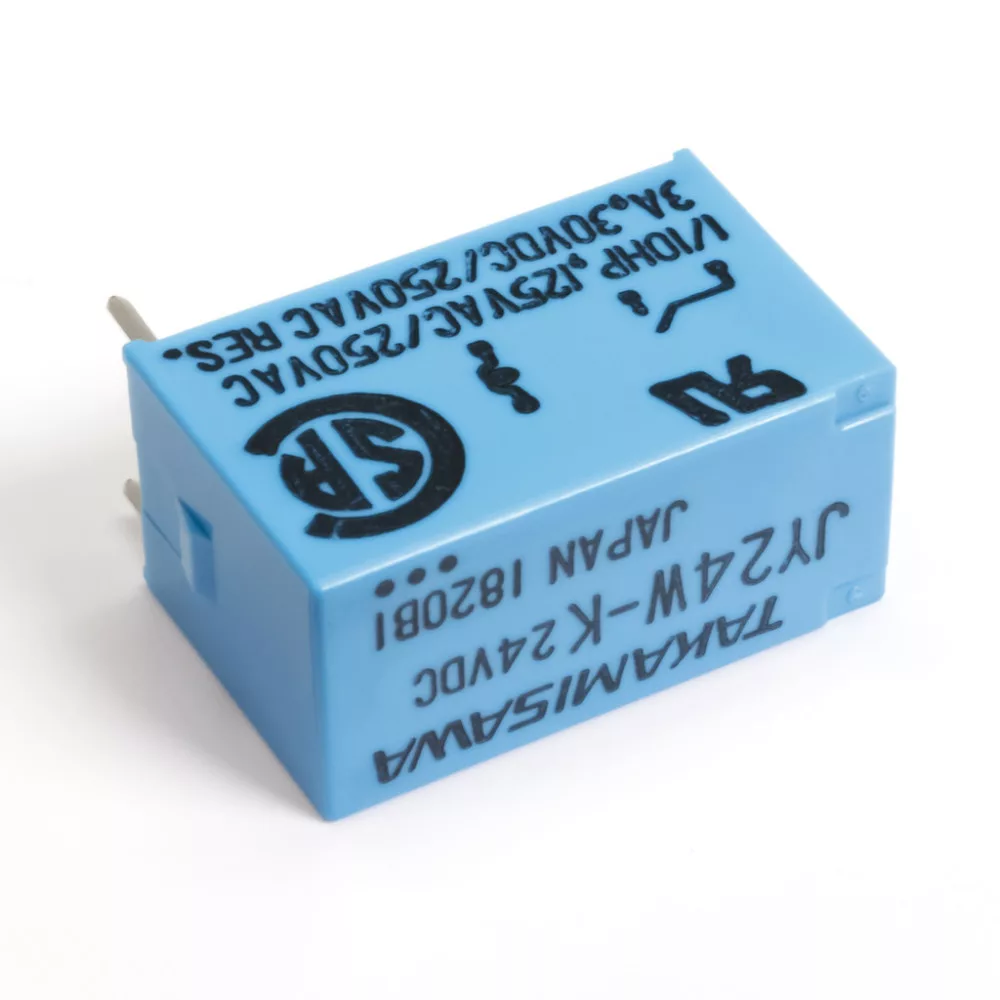

The picture is for illustration purposes only. Please read the product description!
In stock 1995 pcs
2.7296 €+ VAT
3.4666 € incl. VAT
3.4666 € incl. VAT
Relay, 12V 720Ohm 250V/3A 1-circuit NO-contact, Bifurcated
Manufacturer code:
JY-12W-K
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
4
Dimension Parameters:
20 x 9.8 x 12.8 mm
Contact Voltage, Max. DC [V]:
150 V
Contact Configuration :
SPST
Contact Current, Max. AC/DC [A]:
3 A
Contact Voltage, Max. AC [V]:
250 V
Contact resistance [Ohm]:
0.03 Ohm
Coil Resistance [Ohm]:
720 Ohm
Coil Voltage [V], Min.:
8.4 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
0.6 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Data
Weight:
5 g/pcs
