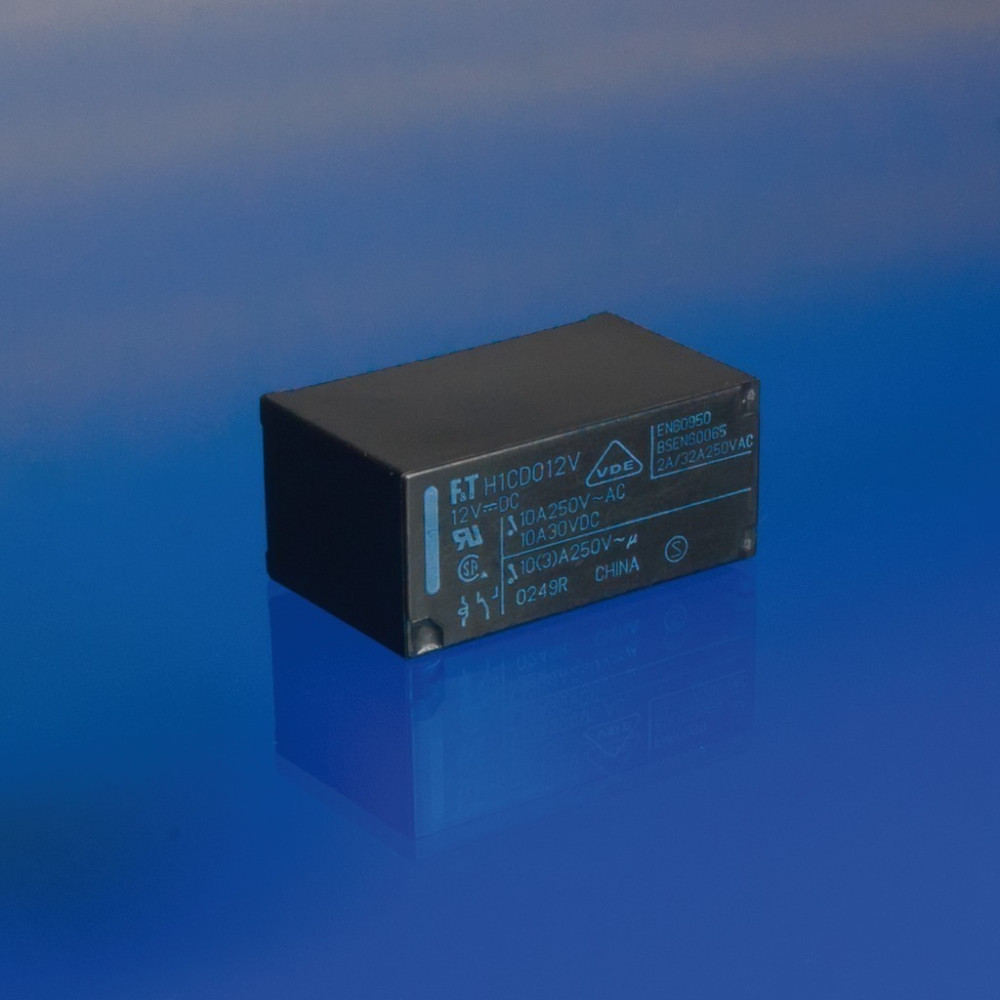

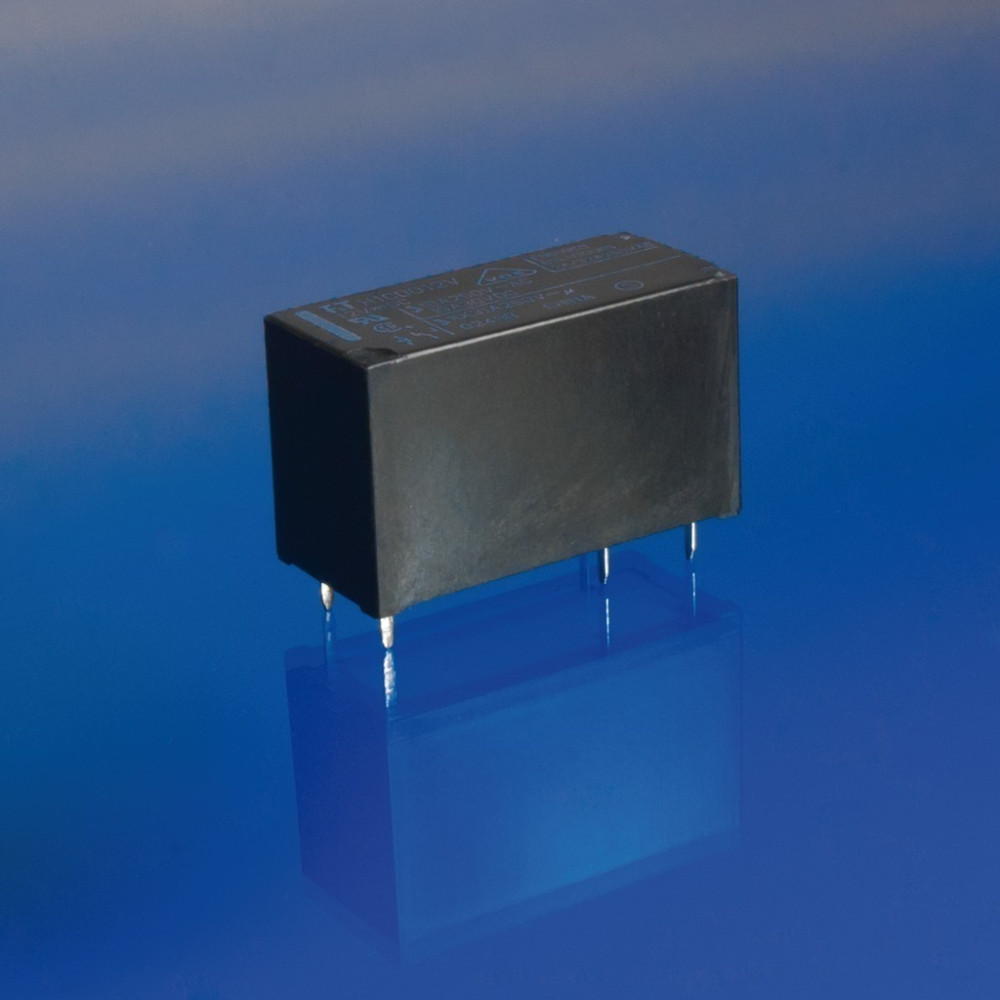

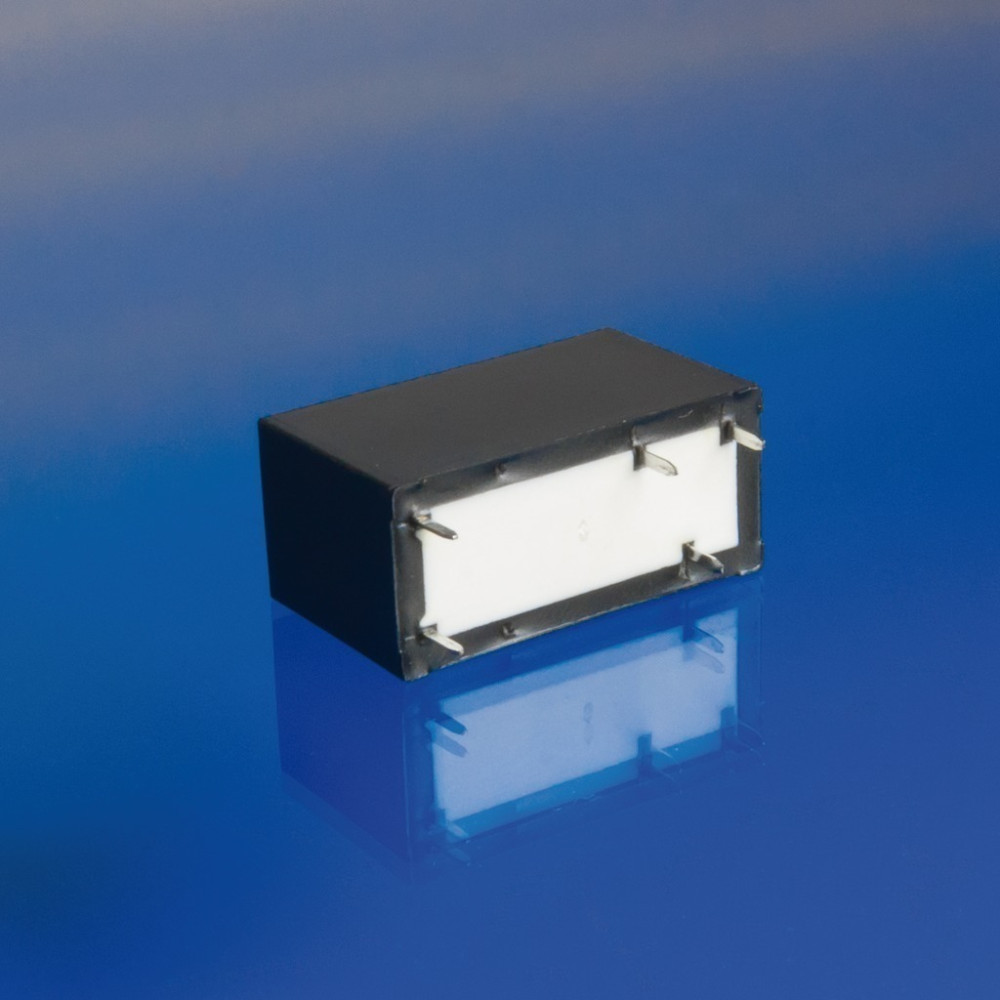

FTR-H1CD024V - jelfogó 24V 1100Ohm 250V/10A 1 áramkör(1-2) álló VSxx lábkompatibilis - FUJITSU
4.3741 €+ VAT
5.5552 € incl. VAT
5.5552 € incl. VAT
FTR-H1CD024V - jelfogó 24V 1100Ohm 250V/10A 1 áramkör(1-2) álló VSxx lábkompatibilis - FUJITSU
The picture is for illustration purposes only. Please read the product description!
In stock 58 pcs
4.3741 €+ VAT
5.5552 € incl. VAT
5.5552 € incl. VAT
Relay, 24V 1100Ohm 250V/10A 1-circuit(1-2) RadialVSxx Pin-compatible
Manufacturer code:
FTR-H1CD024V
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
5
Dimension Parameters:
28 x 12.8 x 16.5 mm
Contact Voltage, Max. DC [V]:
300 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
14 A
Contact Voltage, Max. AC [V]:
400 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
1440 Ohm
Coil Voltage [V], Min.:
18 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
2.4 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+75 °C
ROHS:
Yes
Package deals
Data
Additional Datasheet:
Weight:
12 g/pcs
