FTR-F1CD012V - jelfogó 12V 360Ohm 250V/5A 2 áramkör álló VBxx lábkompatibilis - FUJITSU

1.8254 €+ VAT
2.3182 € incl. VAT

FTR-F1CD012V - jelfogó 12V 360Ohm 250V/5A 2 áramkör álló VBxx lábkompatibilis - FUJITSU

Name: FTR-F1CD012V - jelfogó 12V 360Ohm 250V/5A 2 áramkör álló VBxx lábkompatibilis - FUJITSU
Brand: FUJITSU
SKU: 49-02-32
Price: 2.3182 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 3089 pcs

1.8254 €+ VAT
2.3182 € incl. VAT

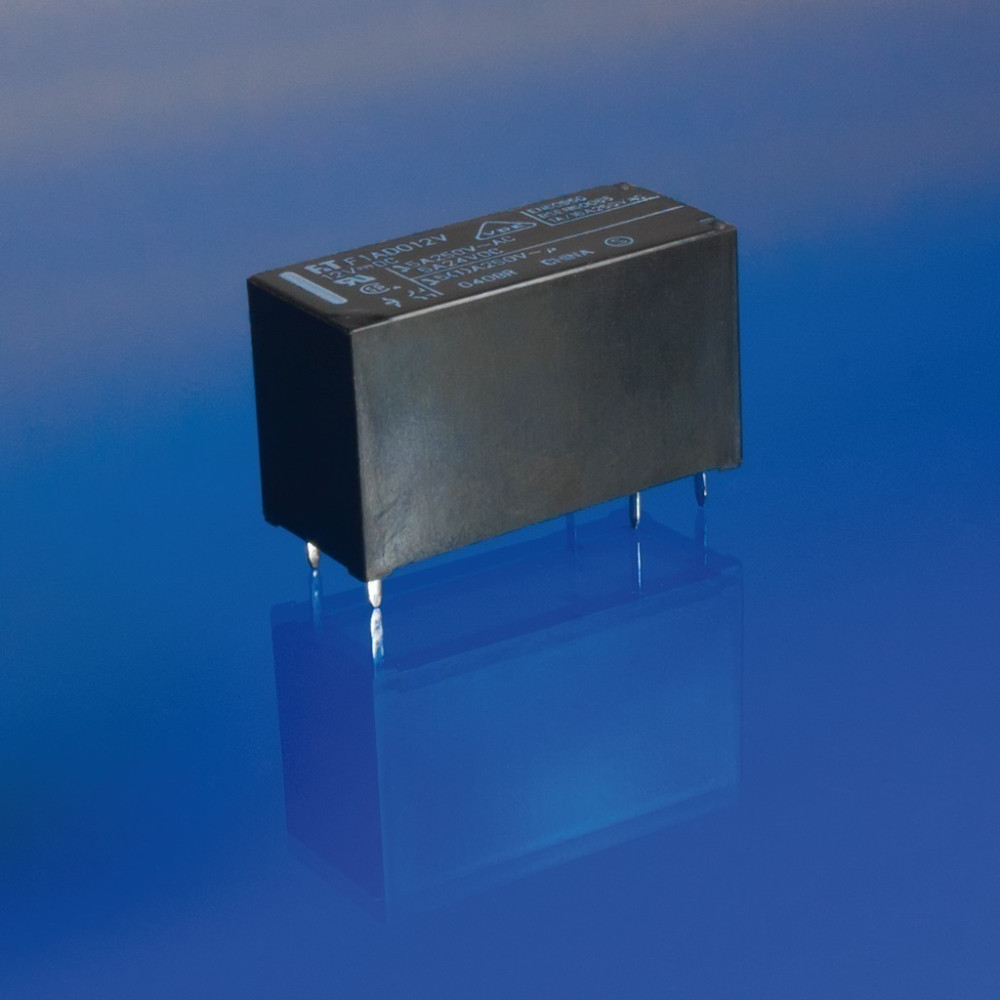

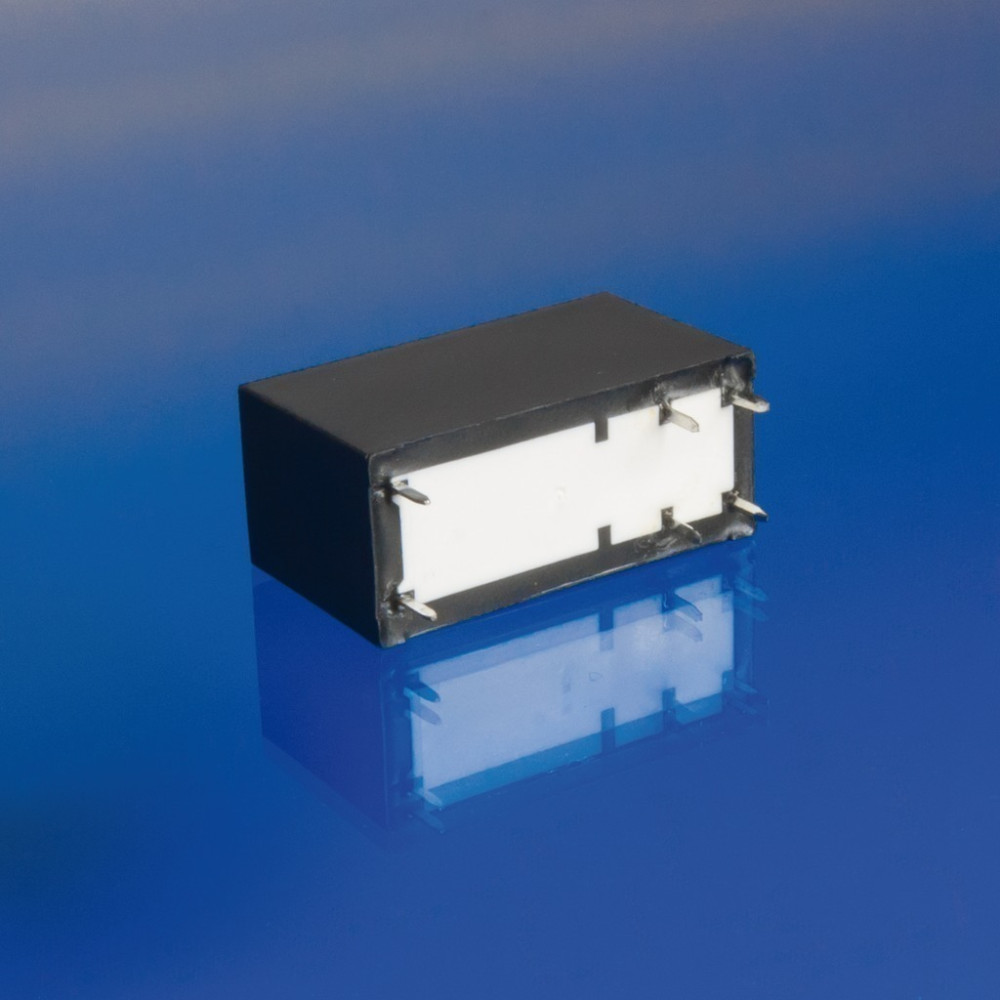

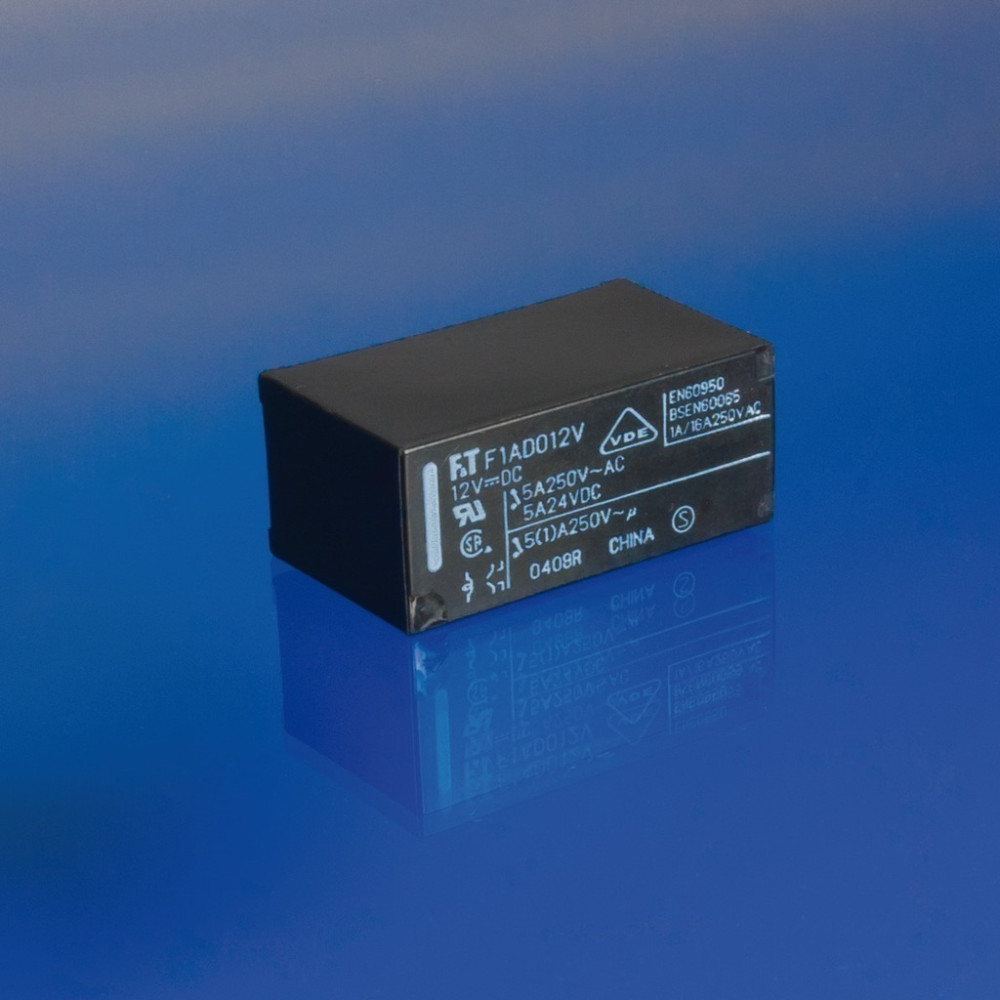

Relay, 12V 360Ohm 250V/5A 2-circuit RadialVBxx Pin-compatible

Manufacturer code:

FTR-F1CD012V

Manufacturer:

FUJITSU

Datasheet:

ftr-f1.pdf

Group:

Relays - PCB

Component Family:

Relay, mechanical

Product Range:

FTR-F1

Case:

PCB-mountable

Termination Type:

Through-hole technology

Number of Pins:

Dimension Parameters:

29 x 12.8 x 16.5 mm

Contact Voltage, Max. DC [V]:

300 V

Contact Configuration :

DPDT

Contact Current, Max. AC/DC [A]:

7 A

Contact Voltage, Max. AC [V]:

400 V

Contact resistance [Ohm]:

0.1 Ohm

Coil Resistance [Ohm]:

360 Ohm

Coil Voltage [V], Min.:

9 V DC

Coil Configuration:

1 coil

Coil Holding Voltage [V], Min.:

1.2 V DC

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+75 °C

ROHS:

Yes

Coil Voltage [V], Nom.:

5 V DC

6 V DC

12 V DC

24 V DC

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

1,31 €

1,66 €

Our Warehouse

3080 pcs

Available for immediate delivery

Our Shop in Szeged

9 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_K_034.pdf ROHS_Fujitsu_Relay.pdf

Weight:

13 g/pcs
