FBR51ND09-W1-T1 - jelfogó 9V 135Ohm 14Vdc/25A 1 áramkör - FUJITSU
1.3759 €+ VAT
1.7473 € incl. VAT
1.7473 € incl. VAT
FBR51ND09-W1-T1 - jelfogó 9V 135Ohm 14Vdc/25A 1 áramkör - FUJITSU
The picture is for illustration purposes only. Please read the product description!
In stock 662 pcs
1.3759 €+ VAT
1.7473 € incl. VAT
1.7473 € incl. VAT

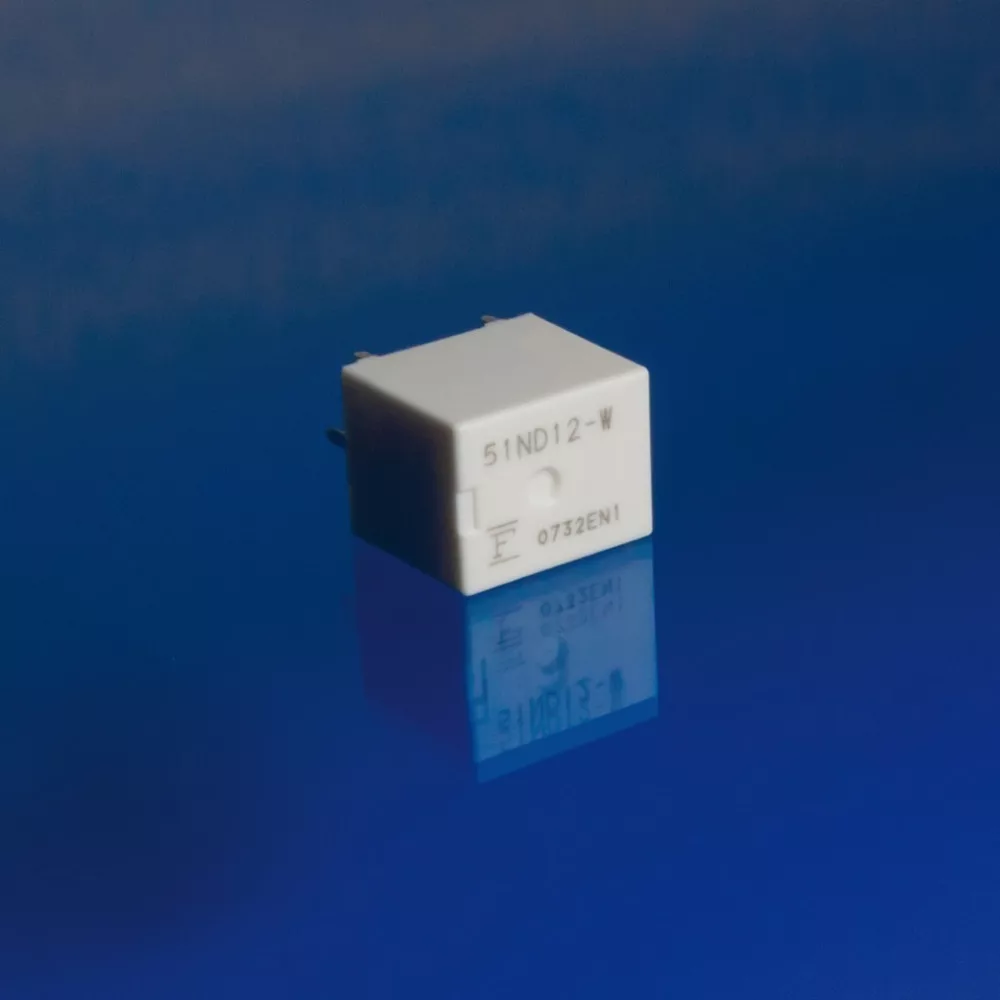

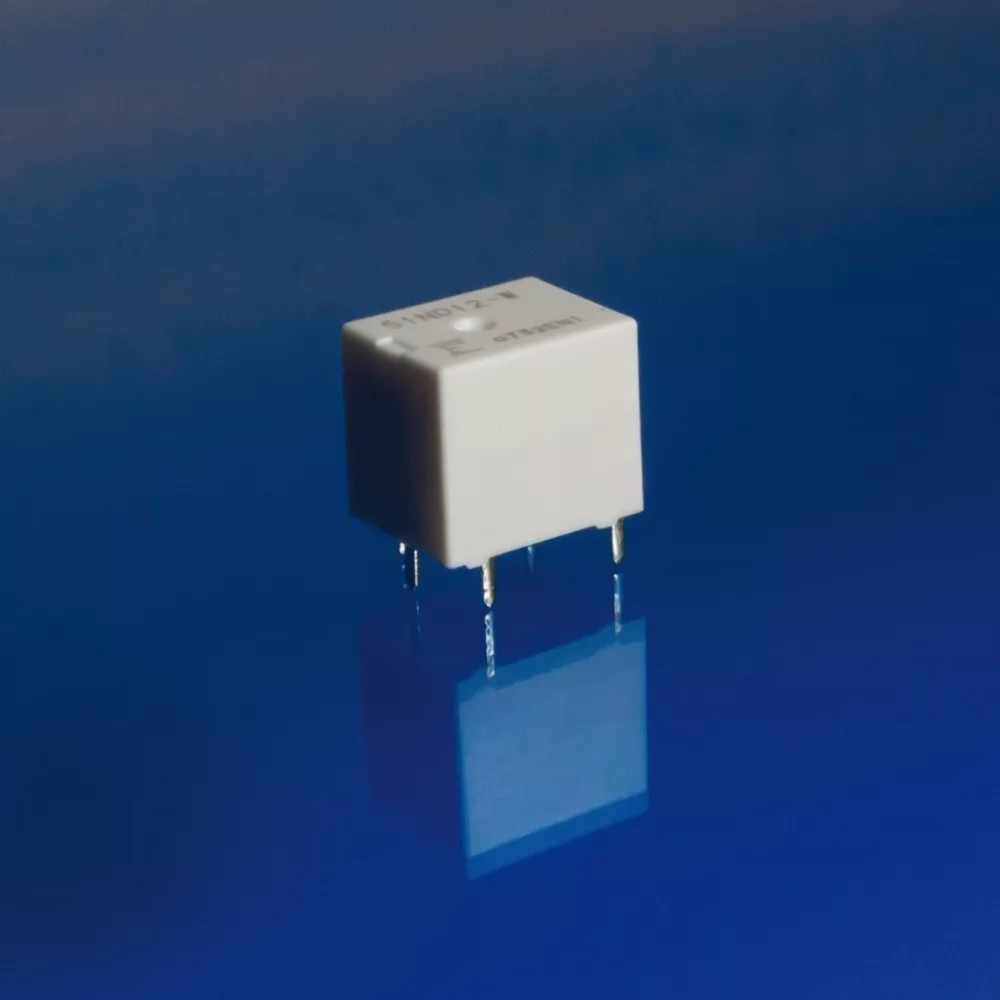

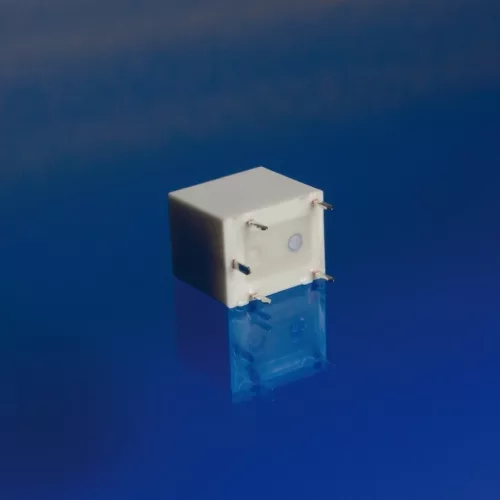

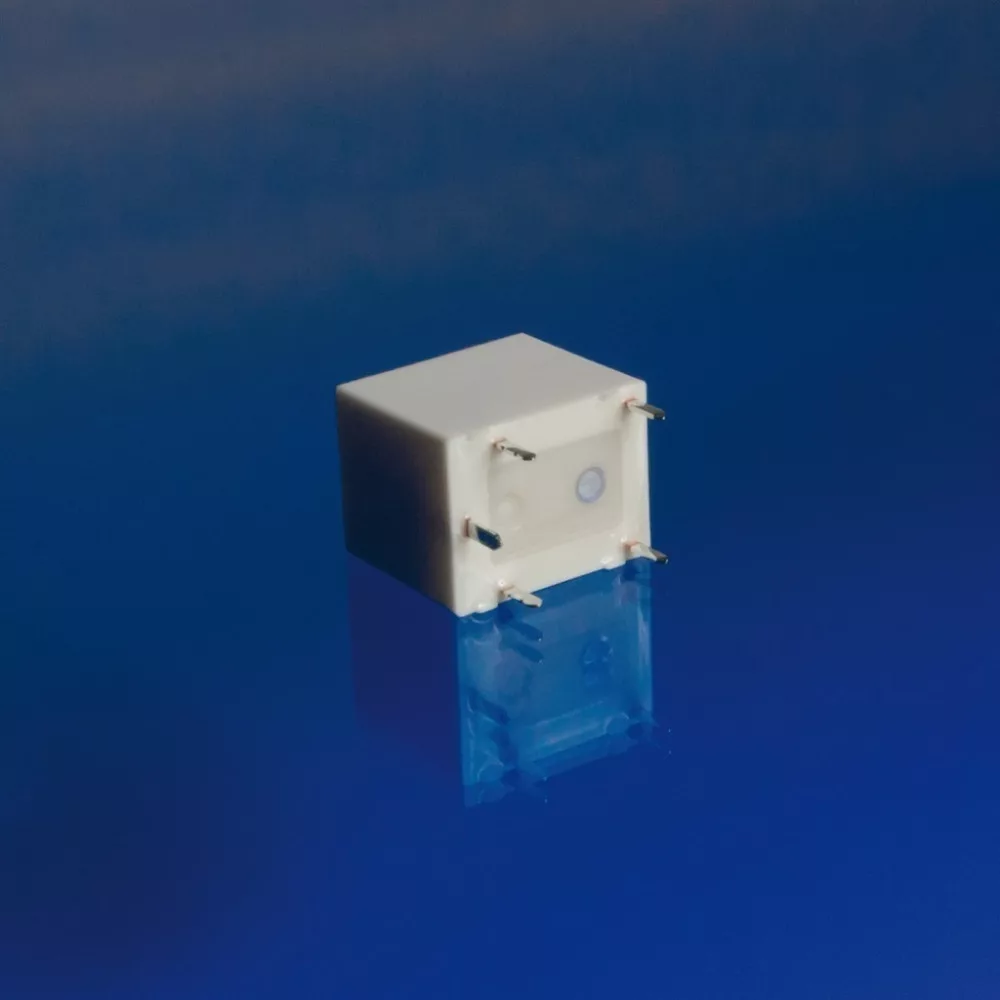

Relay, 9V 135Ohm 14Vdc/25A 1-circuit
Manufacturer code:
FBR51ND09-W1-T1
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
5
Dimension Parameters:
15.5 x 12.1 x 13.7 mm
Contact Voltage, Max. DC [V]:
16 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
35 A
Coil Resistance [Ohm]:
135 Ohm
Coil Voltage [V], Min.:
6.8 V DC
Coil Configuration:
1 coil
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
6 g/pcs
