JV-24S-KT - jelfogó 24 V 2880 Ohm 250V/5 A 1 áramkör záró - TAKAMISAWA

1.3133 €+ VAT
1.6679 € incl. VAT

JV-24S-KT - jelfogó 24 V 2880 Ohm 250V/5 A 1 áramkör záró - TAKAMISAWA

Name: JV-24S-KT - jelfogó 24 V 2880 Ohm 250V/5 A 1 áramkör záró - TAKAMISAWA
Brand: TAKAMISAWA
SKU: 49-00-81
Price: 1.6679 EUR
Availability: InStock

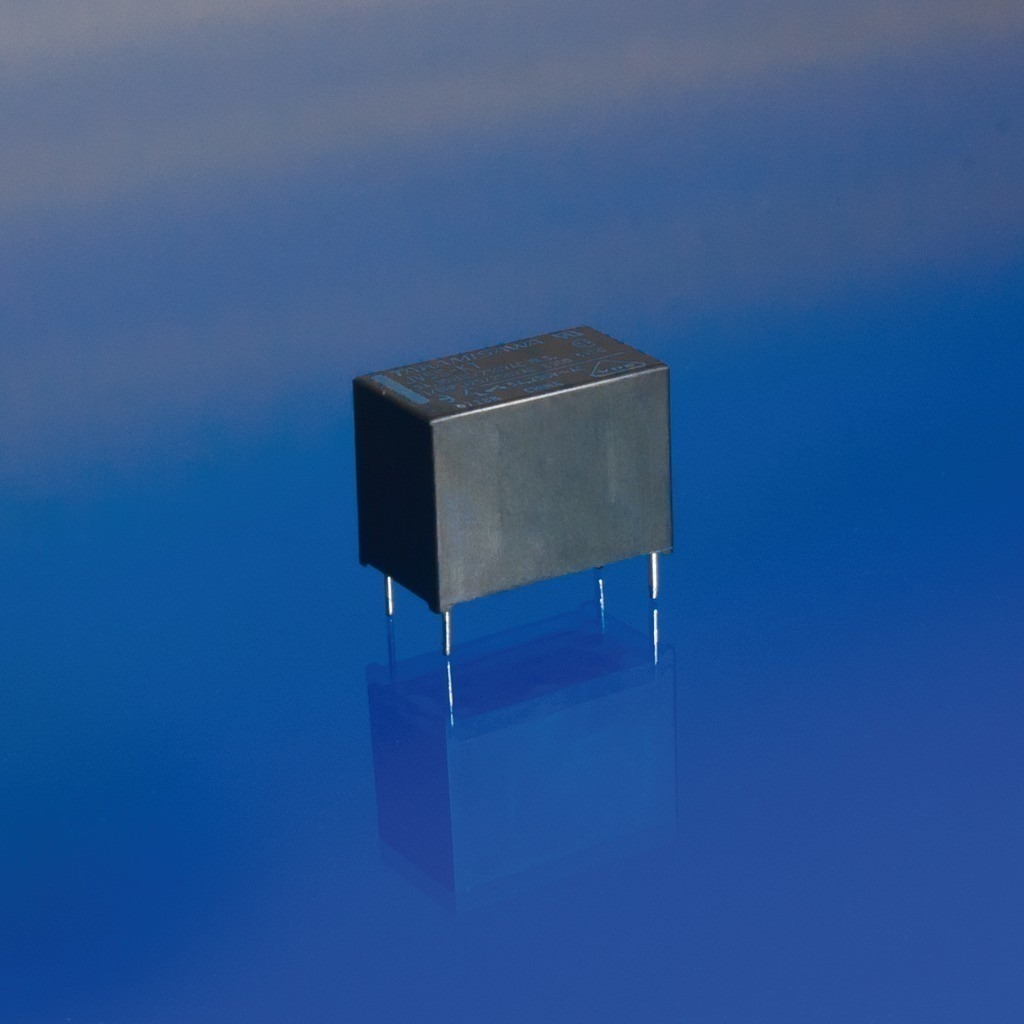

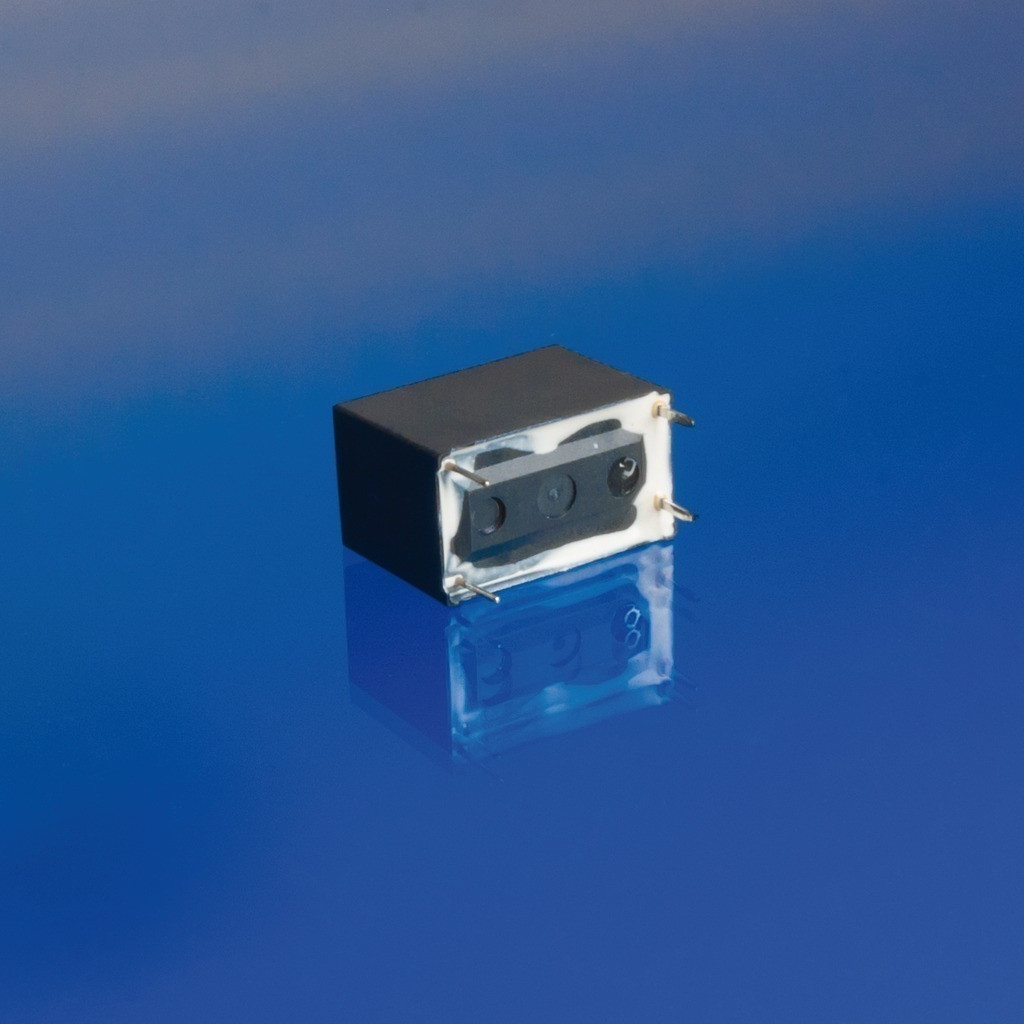

The picture is for illustration purposes only. Please read the product description!

In stock 3730 pcs

1.3133 €+ VAT
1.6679 € incl. VAT

Relay, 24 V 2880 Ohm 250V/5 A 1-circuit NO-contact

Manufacturer code:

JV-24S-KT

Manufacturer:

TAKAMISAWA

Datasheet:

JV-serie.pdf

Group:

Relays - PCB

Component Family:

Relay, mechanical

Product Range:

Case:

PCB-mountable

Termination Type:

Through-hole technology

Number of Pins:

Dimension Parameters:

17.5 x 10 x 12.5 mm

Contact Voltage, Max. DC [V]:

150 V

Contact Configuration :

SPST

Contact Current, Max. AC/DC [A]:

5 A

Contact Voltage, Max. AC [V]:

250 V

Contact resistance [Ohm]:

0.07 Ohm

Coil Resistance [Ohm]:

2880 Ohm

Coil Voltage [V], Min.:

18 V DC

Coil Configuration:

1 coil

Coil Holding Voltage [V], Min.:

1.2 V DC

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

Coil Voltage [V], Nom.:

5 V DC

12 V DC

24 V DC

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

1,09 €

1,39 €

Our Warehouse

3728 pcs

Available for immediate delivery

Our Shop in Szeged

2 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Info

Additional Datasheet:

RETKAT2012_K_031.pdf

Weight:

4.3 g/pcs
