10 KOhm/SMD TSM4ZJ Trimmer - VISHAY (SFERNICE) - TSM4ZJ103KR05
2.4636 €+ VAT
3.1288 € incl. VAT
3.1288 € incl. VAT
10 KOhm/SMD TSM4ZJ Trimmer - VISHAY (SFERNICE) - TSM4ZJ103KR05

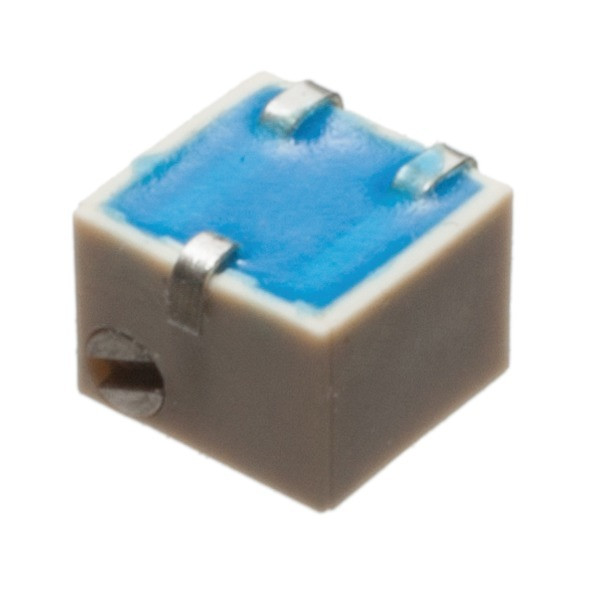

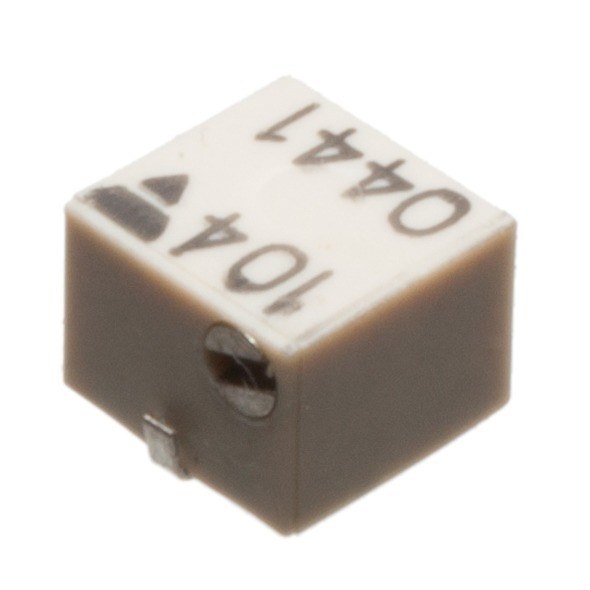

The picture is for illustration purposes only. Please read the product description!
In stock 224 pcs
2.4636 €+ VAT
3.1288 € incl. VAT
3.1288 € incl. VAT
Trimmer TSM4ZJ SMD-trimmer 11±2-Turn, Axial 0.25W
Manufacturer code:
TSM4ZJ103KR05
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
3
Nominal Power [W @ °C]:
0.25 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
200 V
Insulation Voltage [V], Max.:
500 V
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
11
Rotation Mechanical Angle [°]:
360 °
Dimension Parameters:
4.8x5.1x3.5 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Data
Weight:
0.15 g/pcs
