22 KOhm T18 Trimmer - VISHAY (SFERNICE) - T18223KT10

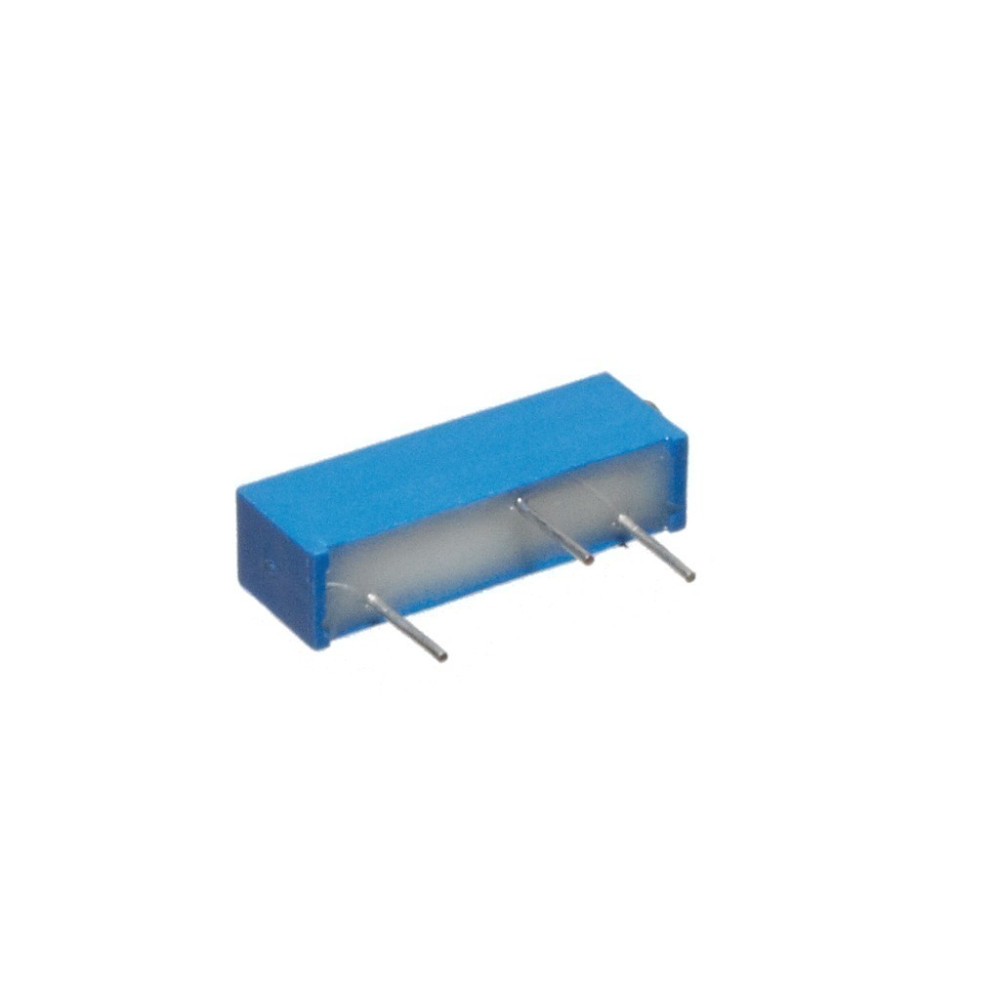

The picture is for illustration purposes only. Please read the product description!
Out of stock
Trimmer T18 15-Turn, Axial
Manufacturer code:
T18223KT10
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.75 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
400 V
Insulation Voltage [V], Max.:
1 kV
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
15 ± 1
Rotation Mechanical Angle [°]:
360 °
Dimension Parameters:
4.8 x 6.4 x 19.0 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Data
Additional Datasheet:
Weight:
1.2 g/pcs
