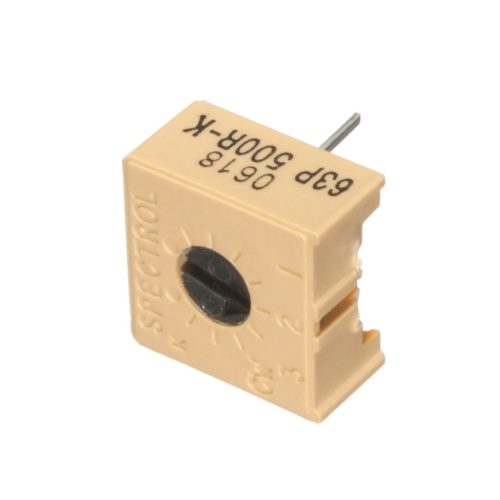

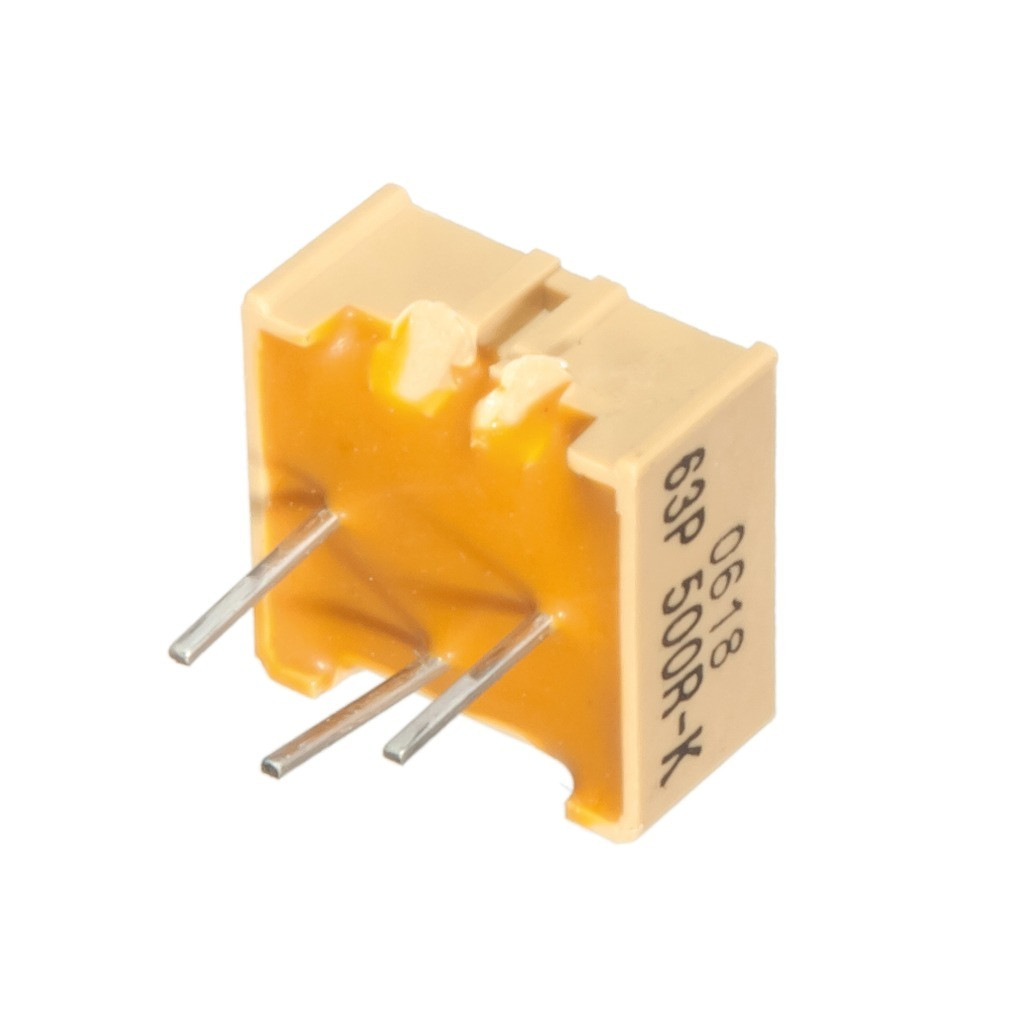

500 KOhm 63P Trimmer - VISHAY (SPECTROL) - M63P501KB40
The picture is for illustration purposes only. Please read the product description!
Out of stock
Trimmer 63P 1-Turn CERMET Axial 0.5W
Manufacturer code:
M63P501KB40
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.5 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
250 V
Insulation Voltage [V], Max.:
500 V
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
1
Rotation Mechanical Angle [°]:
270°
Dimension Parameters:
9.52 x 9.61 x 9.52 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Data
Weight:
0.85 g/pcs
