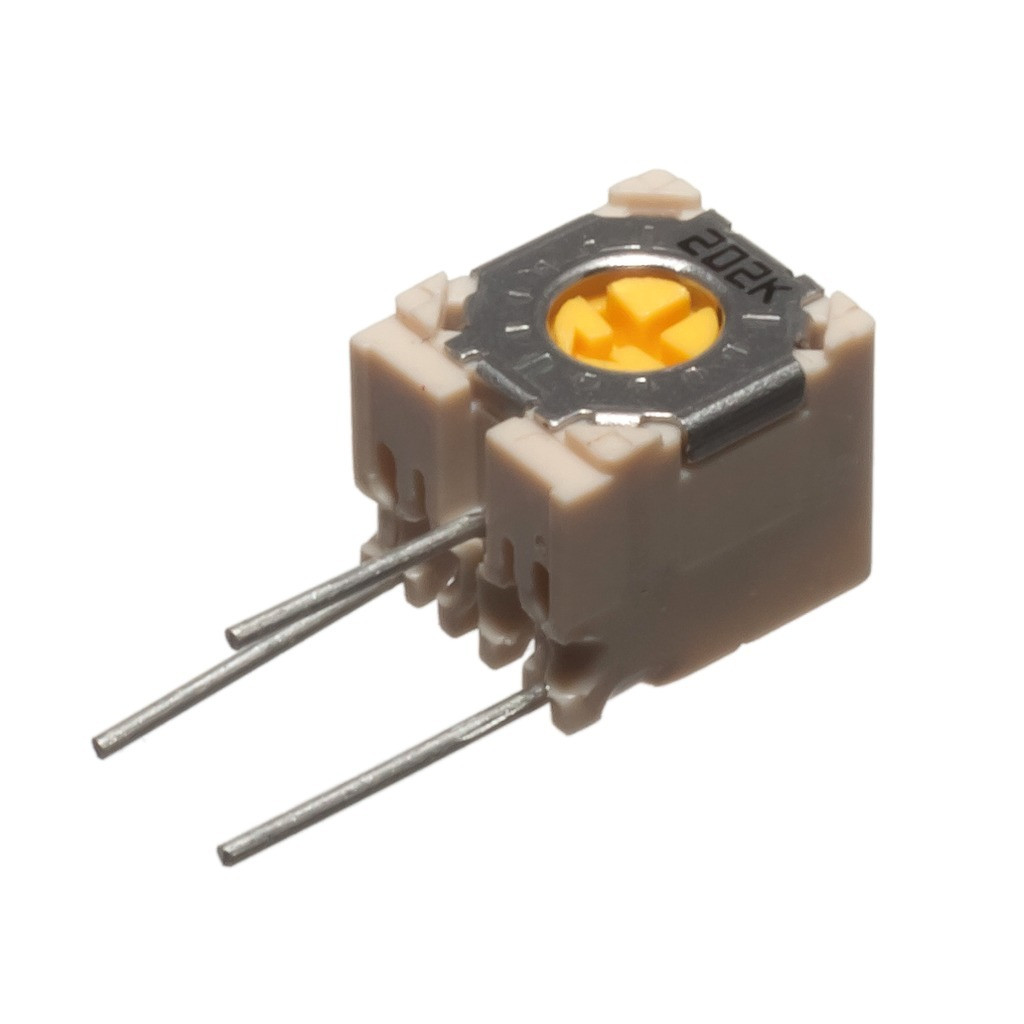

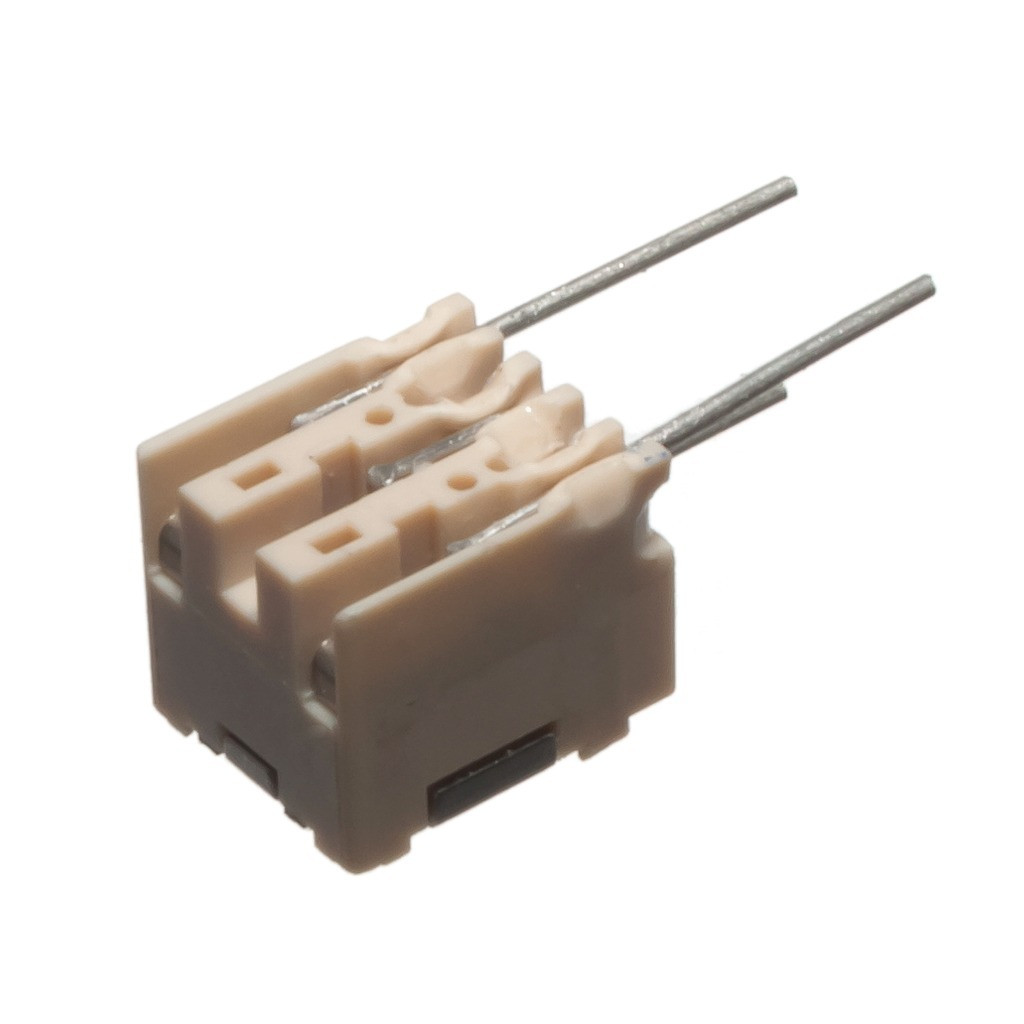

10 KOhm 76W Trimmer - VISHAY (SPECTROL) - 76-W-103
The picture is for illustration purposes only. Please read the product description!
Out of stock
Trimmer 76W Closed Radial 10% 0.5W CERMET
Manufacturer code:
76-W-103
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.5 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
300 V
Insulation Voltage [V], Max.:
600 V
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
1
Rotation Mechanical Angle [°]:
240°
Dimension Parameters:
6.9 x 6.5 x 15.5 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
No
Package deals
Data
Weight:
0.567 g/pcs
