2 KOhm 63MT-607 Trimmer - VISHAY (SPECTROL) - M63M202KB40T607
The picture is for illustration purposes only. Please read the product description!
Out of stock

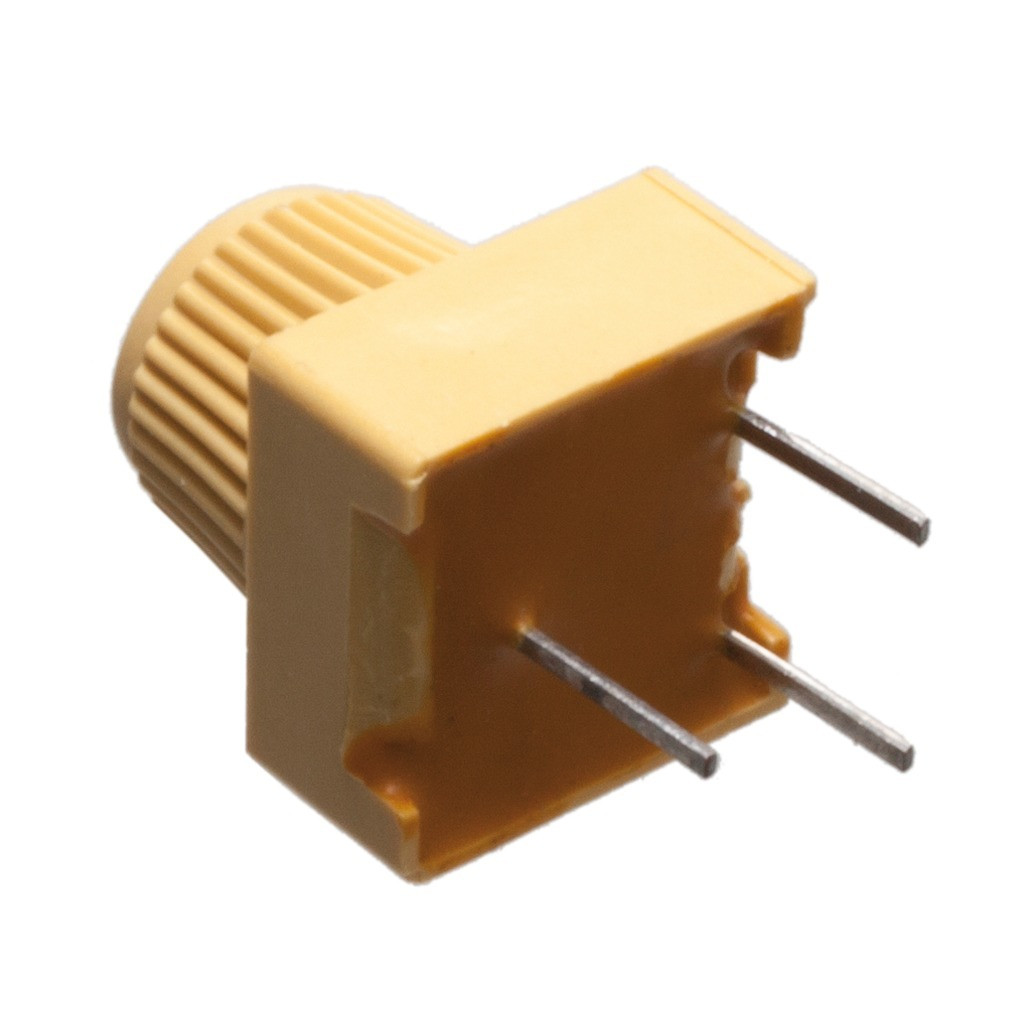

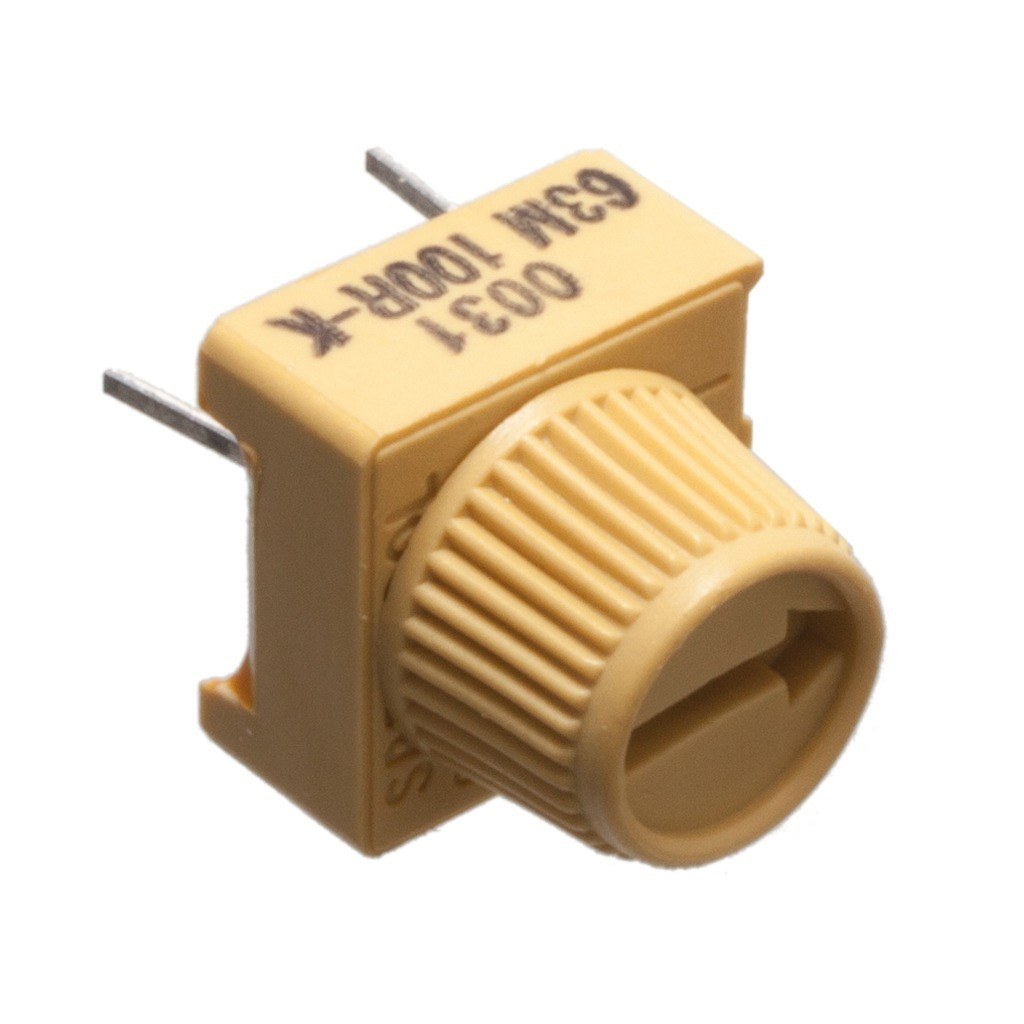

Trimmer 63MT-607 w. Spindle 1-Turn CERMET Axial 0.5W
Manufacturer code:
M63M202KB40T607
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
PCB-mountable
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.5 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
250 V
Insulation Voltage [V], Max.:
500 V
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
1
Rotation Mechanical Angle [°]:
270°
Dimension Parameters:
9.52 x 15.19 x 9.52 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
No
