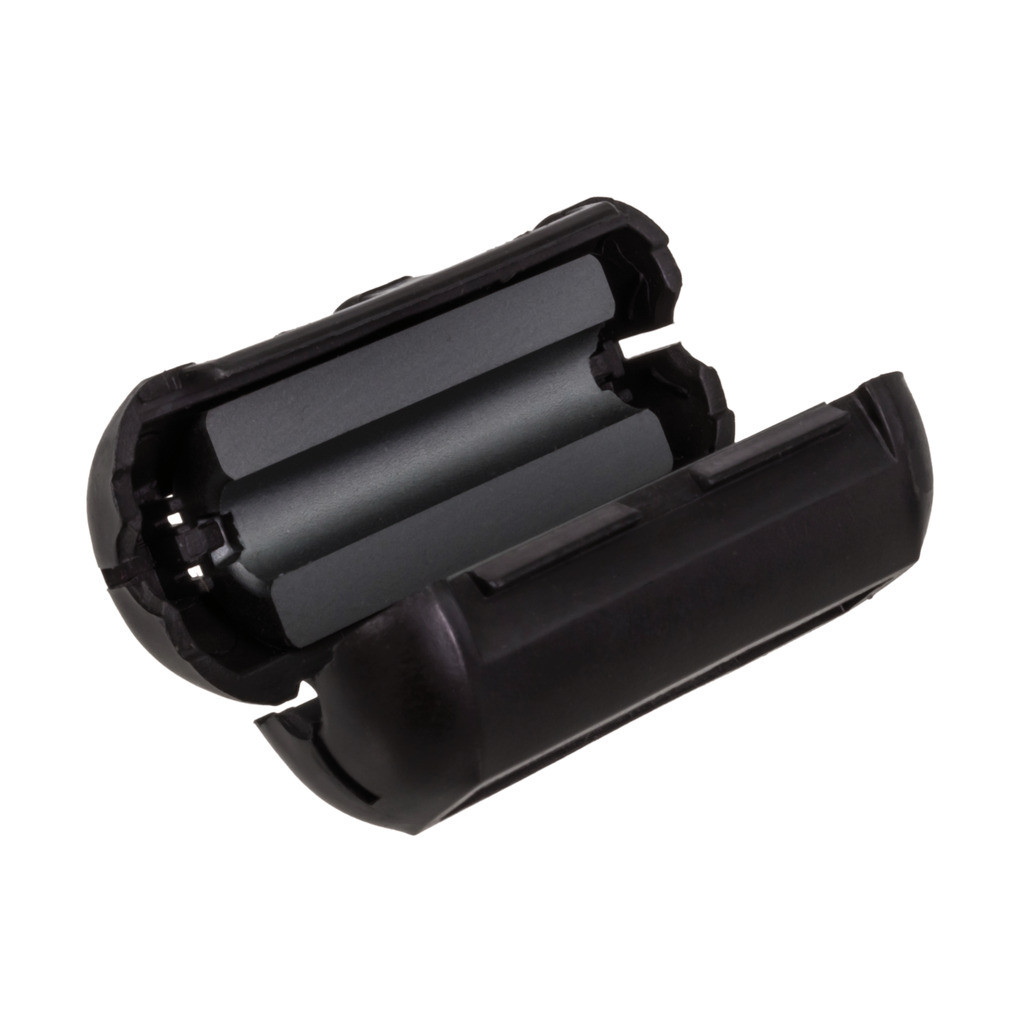

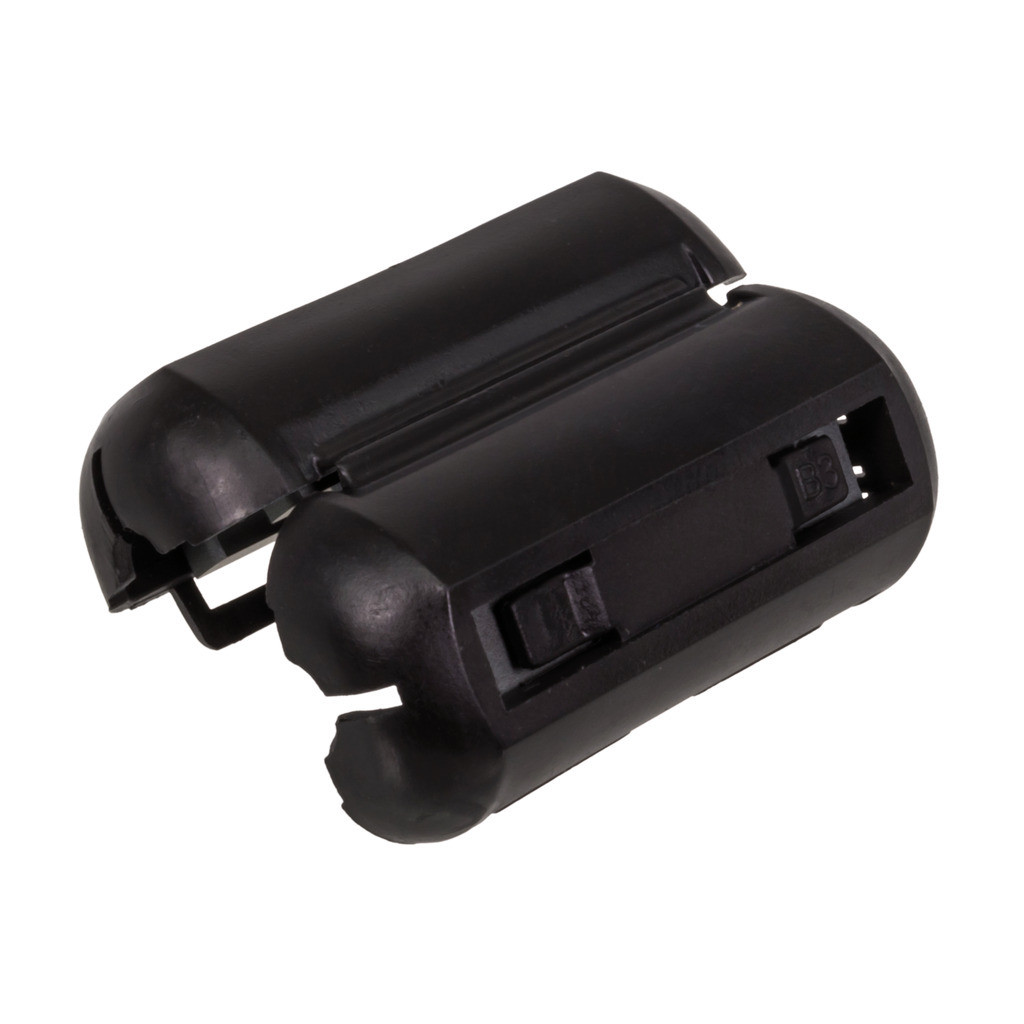

0431164951 - EMI-szűrő ferrit kábelre 370Ohm/250MHz D=4.9mm - FAIR-RITE
2.2516 €+ VAT
2.8596 € incl. VAT
2.8596 € incl. VAT
0431164951 - EMI-szűrő ferrit kábelre 370Ohm/250MHz D=4.9mm - FAIR-RITE
The picture is for illustration purposes only. Please read the product description!
In stock 623 pcs
2.2516 €+ VAT
2.8596 € incl. VAT
2.8596 € incl. VAT
EMI-filter, Ferrire core for Cable, 370Ohm/250MHz D=4.9mm
Manufacturer code:
0431164951
Manufacturer:
Datasheet:
Group:
EMC/RFI-supression
Component Family:
Product Range:
Case Style:
mountable
Termination Type:
Cable-mount
External Width [mm]:
16.8 mm
External Height [mm]:
16.8 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Package deals
Details
Lower & Broadband Frequencies 1-300 MHz (31 material)
| RET-cikkszám | Rajz | Fair-Rite cikkszám | Anyaga | Max. kábel átmérő ϕ [mm] |
@1MHz | @5MHz | @10MHz | @25MHz | @100MHz | @250MHz | A [mm] | B [mm] | C [mm] | D [mm] |
| 65-21-90 | 1 | 0431178181 | 31 | 4,1 | 11,3 | 42 | 60 | 94 | 164 | 195 | 11,5 ±1,5 | 4,1 | 23,0 ±1,5 | 5,5 ±0,6 |
| 65-18-37 | 1 | 0431164951 | 31 | 4,9 | 20,5 | 77 | 106 | 174 | 324 | 370 | 16,8 ±1,0 | 4,9 | 36,2 ±1,5 | 8,5 ±0,6 |
| 65-20-54 | 1 | 0431173951 | 31 | 4,9 | 12 | 45 | 65 | 103 | 172 | 199 | 12,3 ±1,0 | 4,9 | 25,0 ±1,5 | 5,9 ±0,5 |
| 65-21-91 | 2 | 0431164281 | 31 | 6,3 | 20 | 75 | 104 | 170 | 315 | 380 | 20,0 ±1,5 | 6,3 | 39,5 ±2,0 | 9,8 ±0,5 |
| 65-20-55 | 1 | 0431178281 | 31 | 8,7 | 23 | 66 | 89 | 142 | 256 | 312 | 21,0 ±1,0 | 8,7 | 39,4 ±1,5 | 10,5 ±1,0 |
| 65-21-92 | 1 | 0431176451 | 31 | 18 | 32 | 110 | 145 | 225 | 388 | 433 | 38,5 ±1,5 | 18 | 47,5 ±2,0 | 19,15 ±1,0 |
Broadband Frequencies 25-300 MHz (43 & 44 materials)
| RET-cikkszám | Rajz | Fair-Rite cikkszám | Anyaga | Max. kábel átmérő ϕ [mm] |
@10MHz | @25MHz | @100MHz | @250MHz | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
| 65-21-96 | 3 | 0443806406 | 43 | 15 | 24 | 45 | 81,5 | 112 | 34,3 ±1,5 | 15 | 21,2 ±1,0 | 15,0 ±1,0 | 16,0 ±1,0 |
| 65-21-93 | 1 | 0443178181 | 43 | 4,1 | 37 | 83 | 155 | 174 | 11,5 ±1,5 | 4,1 | 23,0 ±1,5 | 5,5 ±0,6 | - |
| 65-21-94 | 1 | 0444164951 | 44 | 4,9 | 98 | 162 | 255 | 295 | 16,8 ±1,0 | 4,9 | 36,2 ±1,5 | 8,5 ±0,6 | - |
| 65-21-95 | 1 | 0444164181 | 44 | 12,7 | 83 | 137 | 215 | 275 | 30,0 ±1,5 | 12,75 | 39,5 ±2,0 | 15,5 ±0,75 | - |
Higher Frequencies 200-1000 MHz (61 material)
| RET-cikkszám | Rajz | Fair-Rite cikkszám | Anyaga | Max. kábel átmérő ϕ [mm] |
@100MHz | @250MHz | @500MHz | @1000MHz | A [mm] | B [mm] | C [mm] | D [mm] |
| 65-27-75 | 1 | 0461164281 | 61 | 6,3 | 233 | 355 | 475 | 435 | 20,0 ±1,5 | 6,3 | 39,5 ±2,0 | 9,8 ±0,5 |
Data
Weight:
17 g/pcs
