220uF 16V ESR ±20% 105°C radial d=6.3x11mm - PANASONIC - EEUFR1C221

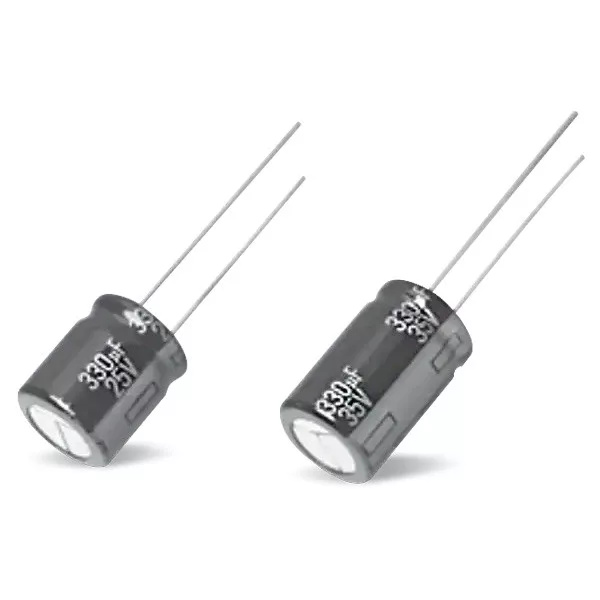

The picture is for illustration purposes only. Please read the product description!
Out of stock
Electrolytic Capacitor 16V ±20% radial d=6.3x11mm RM=2.5mm
Manufacturer code:
EEUFR1C221
Manufacturer:
Datasheet:
Group:
Electrolytic Capacitors
Component Family:
Product Range:
Capacitance [F]:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Voltage Rating [V]:
16V
Number of Pins:
2
Tolerance [ % ]:
±20 %
External Diameter [mm]:
6.3 mm
External Height [mm]:
11 mm
Raster measure:
2.5 mm
ESR type:
Low-ESR
Serienersatzwiderstand [Ohm/Hz/°C]:
138 mOhm @ 100kHz @ 20°C
Ripple Current max. [mA]:
455 mA @ 100kHz @ 105°C
Endurance [h/°C]:
5.000h @ 105°C
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+105 °C
ROHS:
Yes
Package deals
Data
Weight:
0.65 g/pcs
