L-7104 SYCK - KINGBRIGHT - L-7104SYCK
0.1048 €+ VAT
0.1331 € incl. VAT
0.1331 € incl. VAT
L-7104 SYCK - KINGBRIGHT - L-7104SYCK
The picture is for illustration purposes only. Please read the product description!
In stock 5097 pcs
0.1048 €+ VAT
0.1331 € incl. VAT
0.1331 € incl. VAT

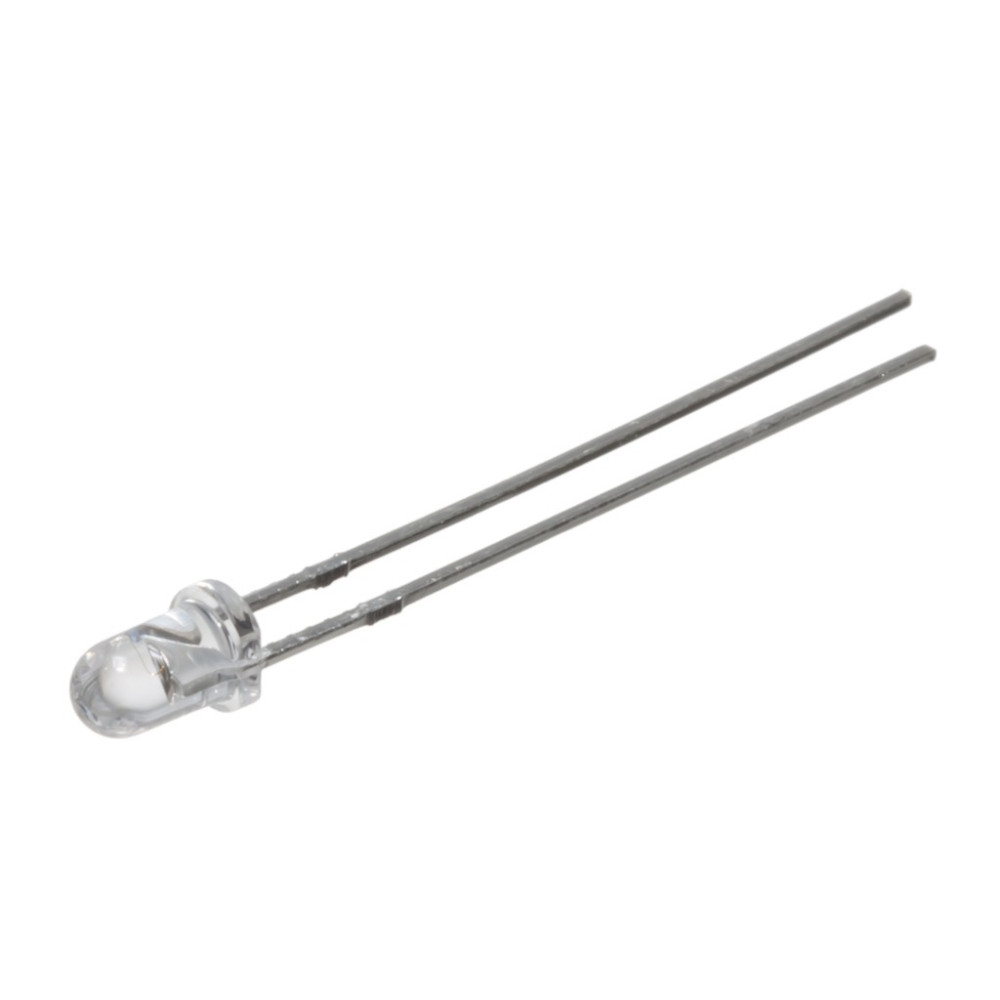

LED, Yellow d=3mm(T-1) 1150mcd Clear-case 34°
Manufacturer code:
L-7104SYCK
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
4.6 mm
External Thickness [mm]:
3.2 mm
External Diameter [mm]:
3.2 mm
External Width [mm]:
3.2 mm
Dominant Wavelength [nm] :
590 nm
Luminous Intensity Iv [mCd @ mA]:
1150 mcd @ 20 mA
Forward voltage Uf [V @ mA]:
2 V @ 20 mA
Forward Current If [mA], Nom.:
20 mA
Viewing Angle 2 Theta 1/2 [°]:
34°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
