HB10b-438ABD - HUEY JANN - HB10b-438ABD
0.2509 €+ VAT
0.3186 € incl. VAT
0.3186 € incl. VAT
HB10b-438ABD - HUEY JANN - HB10b-438ABD
The picture is for illustration purposes only. Please read the product description!
In stock 5064 pcs
0.2509 €+ VAT
0.3186 € incl. VAT
0.3186 € incl. VAT

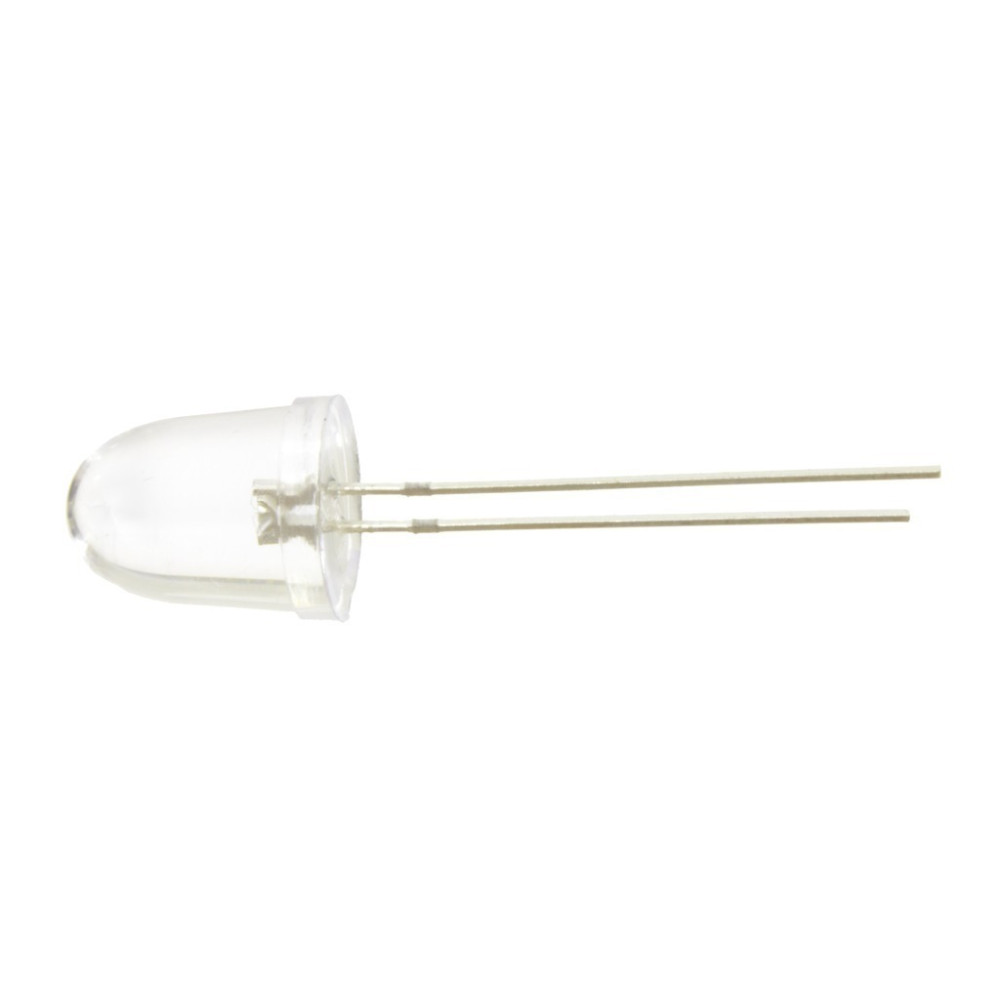

LED, d=10mm Blue, L=465nm d=8° Iv=4-8 cd Improved Brightness Uf=3.3,If=20mA
Manufacturer code:
HB10b-438ABD
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
11.2 mm
External Thickness [mm]:
10.65 mm
External Diameter [mm]:
9.8 mm
External Width [mm]:
10.65 mm
Dominant Wavelength [nm] :
465 nm
Luminous Intensity Iv [mCd @ mA]:
8000 mcd @ 20 mA
Forward voltage Uf [V @ mA]:
3.3 V @ 20 mA
Forward Current If [mA], Nom.:
20 mA
Viewing Angle 2 Theta 1/2 [°]:
8°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
