L-813GD - KINGBRIGHT - L-813GD
0.386 €+ VAT
0.4902 € incl. VAT
0.4902 € incl. VAT
L-813GD - KINGBRIGHT - L-813GD
The picture is for illustration purposes only. Please read the product description!
In stock 925 pcs
0.386 €+ VAT
0.4902 € incl. VAT
0.4902 € incl. VAT

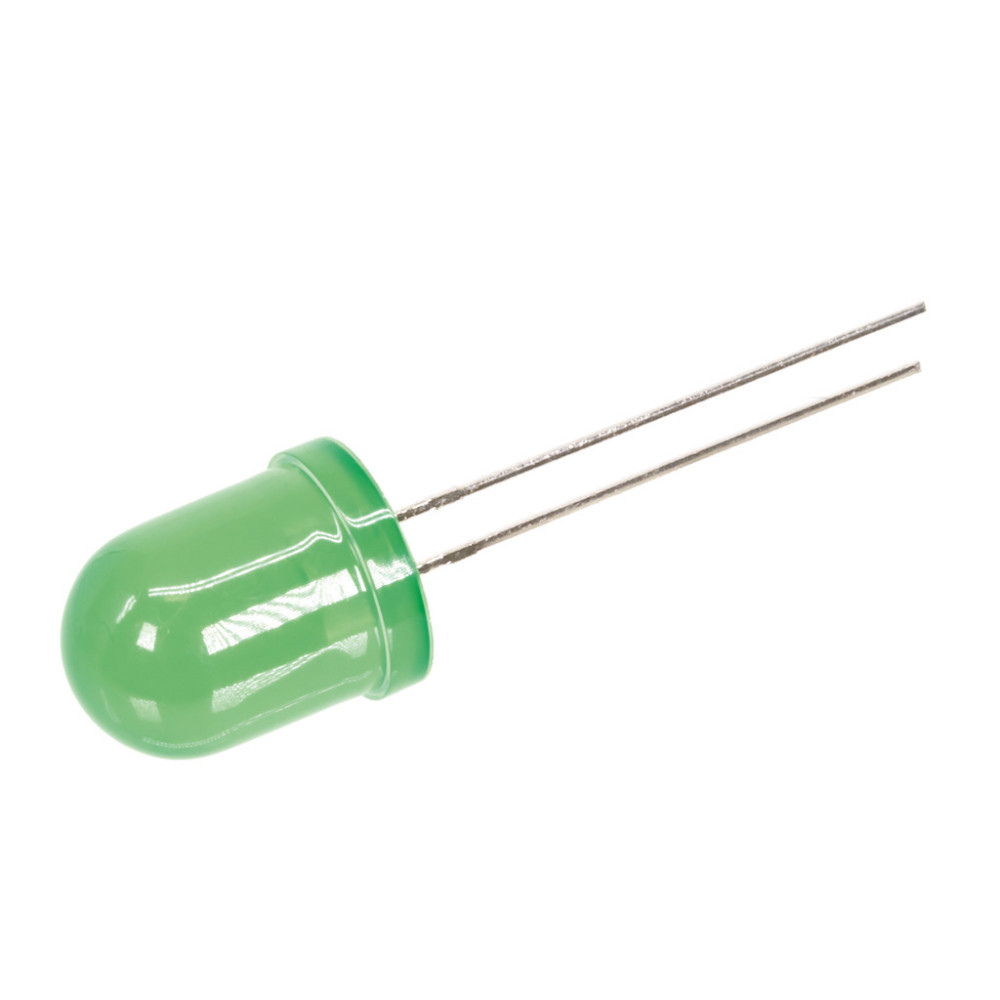

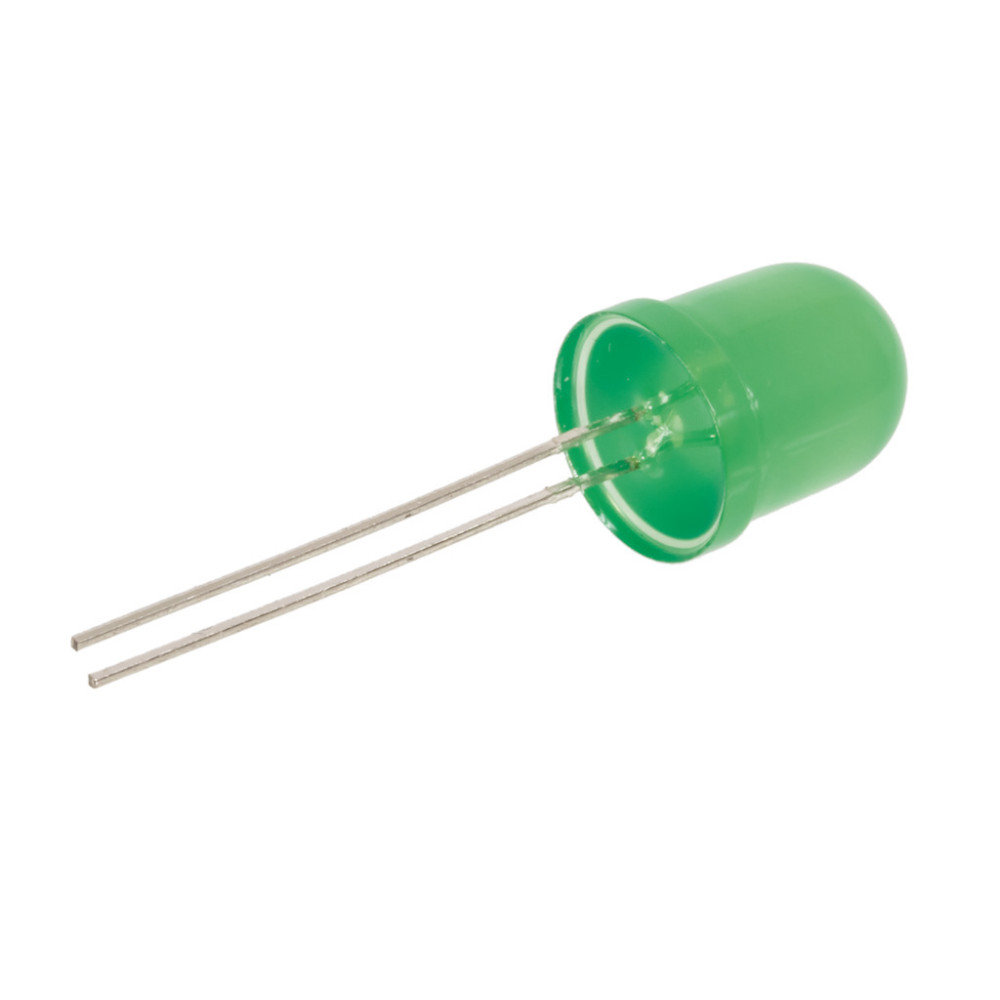

LED, Green d=10mm 10mm Iv=60mcd
Manufacturer code:
L-813GD
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
13.5 mm
External Thickness [mm]:
11 mm
External Diameter [mm]:
10 mm
External Width [mm]:
11 mm
Dominant Wavelength [nm] :
568 nm
Luminous Intensity Iv [mCd @ mA]:
60 mCd @ 20 mA
Forward voltage Uf [V @ mA]:
2.2 V @ 20 mA
Forward Current If [mA], Nom.:
20 mA
Viewing Angle 2 Theta 1/2 [°]:
30°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
1.217 g/pcs
