SMZS 086 - SIGNAL CONSTRUCT - SMZS086
2.3933 €+ VAT
3.0395 € incl. VAT
3.0395 € incl. VAT
SMZS 086 - SIGNAL CONSTRUCT - SMZS086
The picture is for illustration purposes only. Please read the product description!
In stock 90 pcs
2.3933 €+ VAT
3.0395 € incl. VAT
3.0395 € incl. VAT

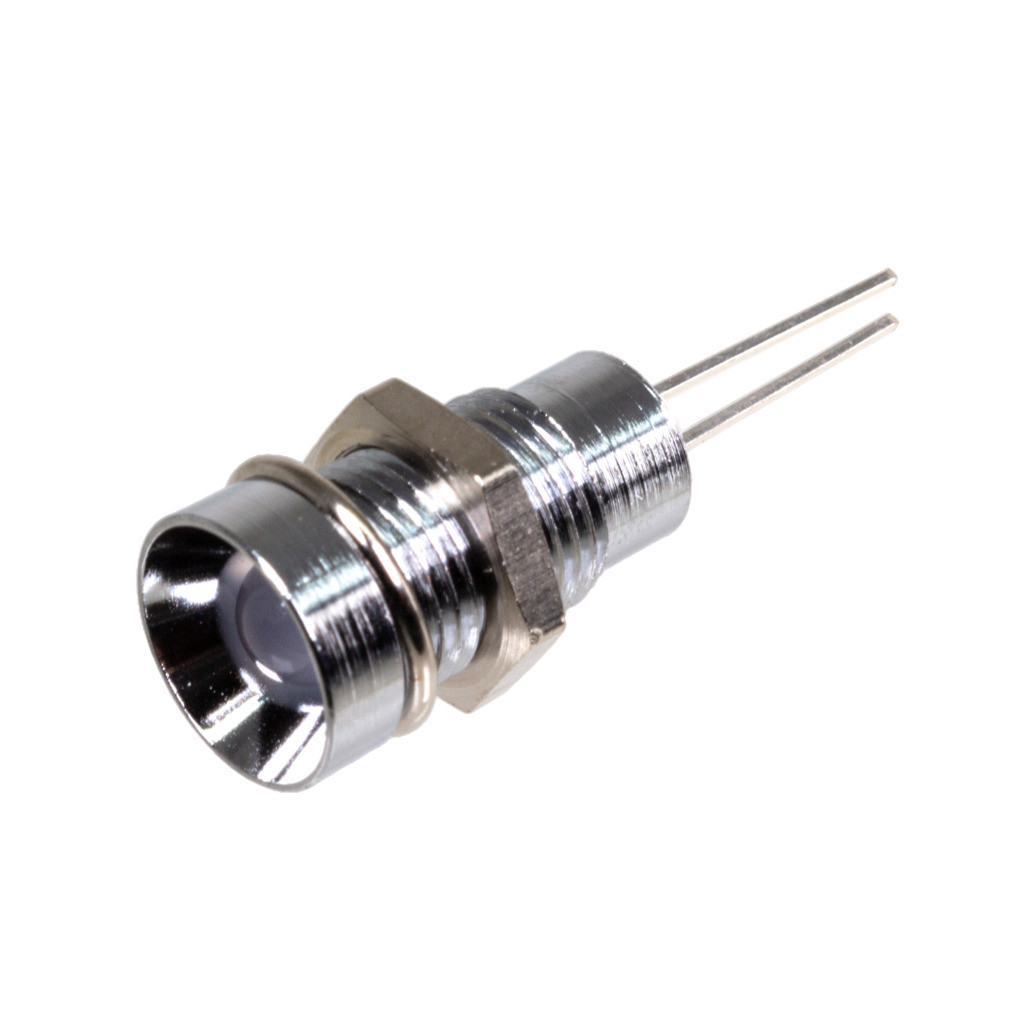

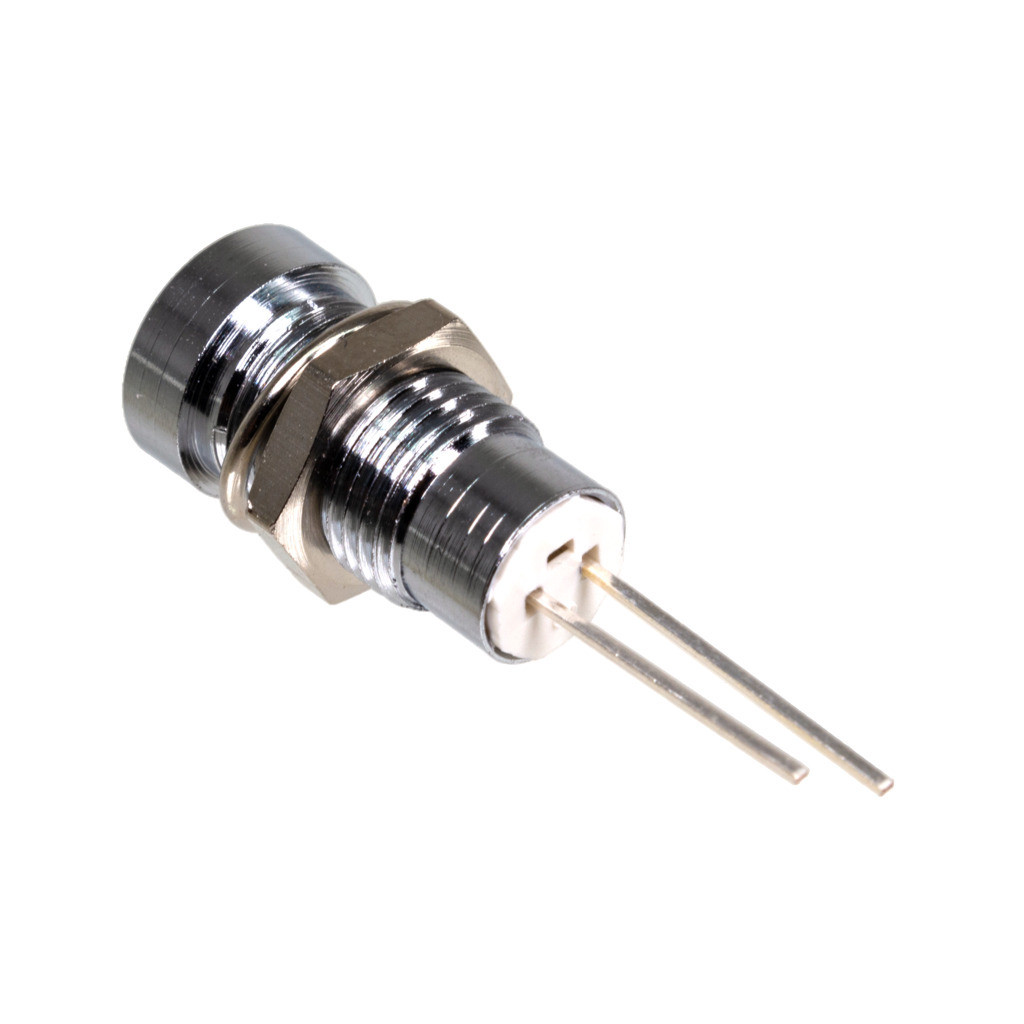

LED, d=5mm Metal Case White Konvex Lens
Manufacturer code:
SMZS086
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
Mountable, screwy
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
19.6 mm
External Thickness [mm]:
M8
External Diameter [mm]:
9.5 mm
External Width [mm]:
M8
Luminous Intensity Iv [mCd @ mA]:
75 mcd @ 20 mA
Forward Current If [mA], Nom.:
15 mA
Viewing Angle 2 Theta 1/2 [°]:
60°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
Yes
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
3.95 g/pcs
