64.3040-25 Green LB4H-IF/A - STAUBLI - 64.3040-25
1.7071 €+ VAT
2.168 € incl. VAT
2.168 € incl. VAT
NEW
64.3040-25 Green LB4H-IF/A - STAUBLI - 64.3040-25
NEW
The picture is for illustration purposes only. Please read the product description!
In stock 40 pcs
1.7071 €+ VAT
2.168 € incl. VAT
2.168 € incl. VAT

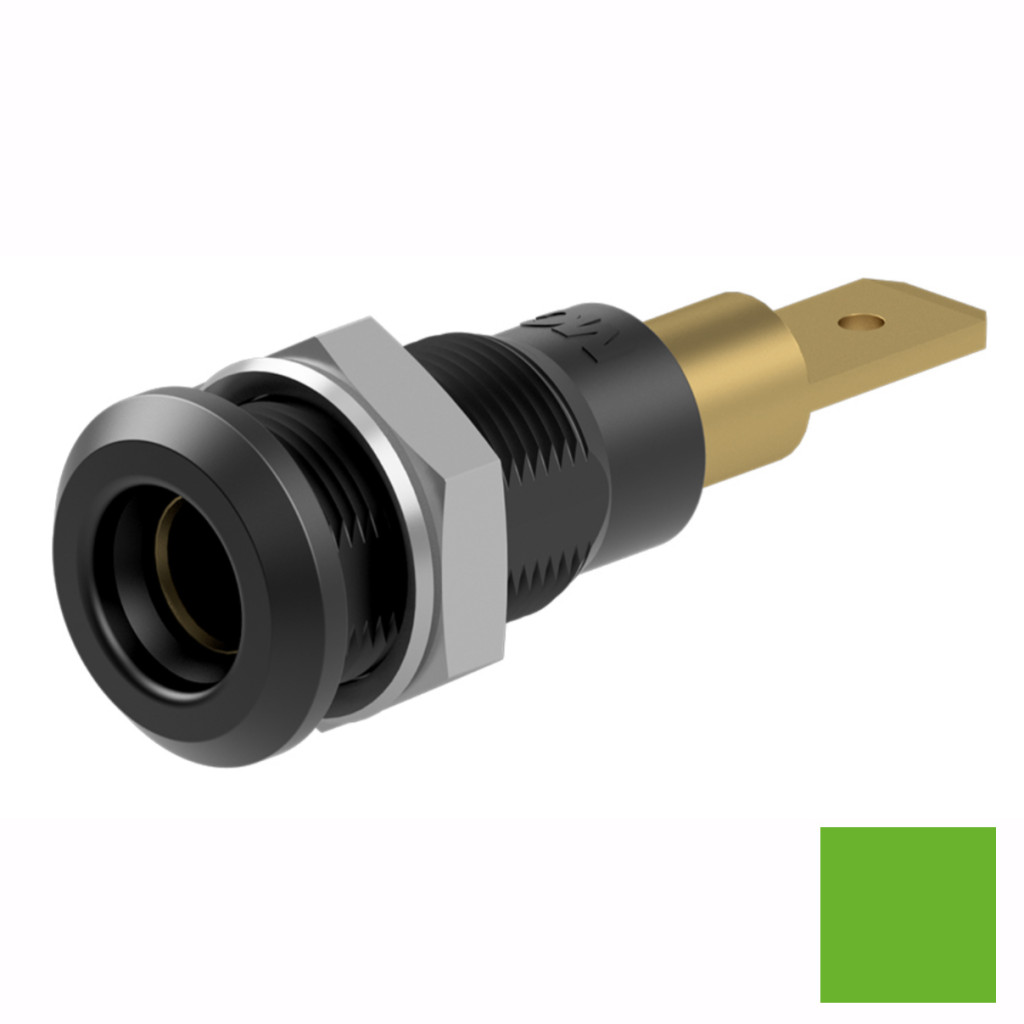

Connector, 4mm Banana Socket, Mountable Screwy, Insulated, 60V, 25A, 4,8mm Faston
Manufacturer code:
64.3040-25
Manufacturer:
Datasheet:
Group:
Banana Plugs and Sockets
Component Family:
Product Range:
Case:
Termination Type:
Quick-connect 4.8mm, FASTON .187
Number of Pins:
1
Voltage [V]:
60 V DC/30 V AC
Continual Current [A], Max.:
25 A
Connector Type:
Mountable socket
Contact Material:
Brass
Contact Plating:
Gold-plated
ROHS:
Yes
Package deals
Data
Weight:
4.55 g/pcs
