691243110004 - 4-pólusú NYÁK-os sorkapocs RM=3.5mm zöld, 9.1mm magas - WÜRTH
The picture is for illustration purposes only. Please read the product description!
Out of stock

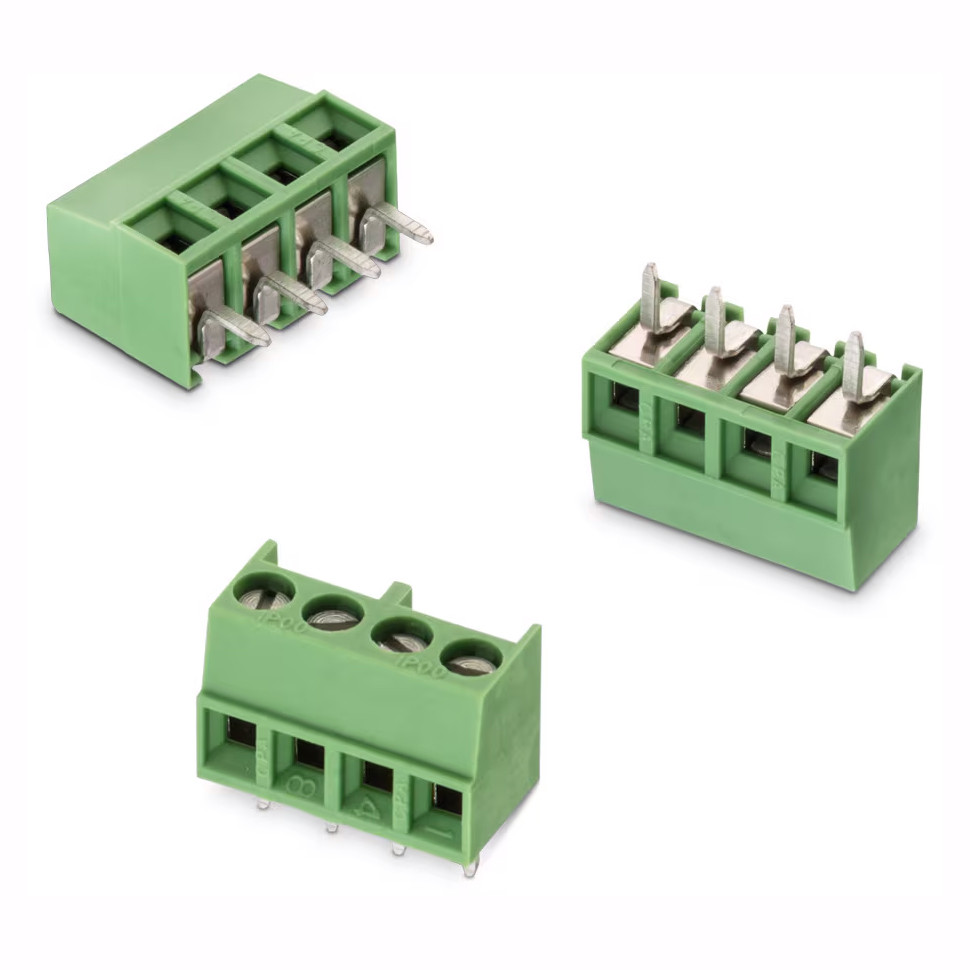

Terminal Block, 4-pole for PCB RM=3.5mm Green, 9.1mm High
Manufacturer code:
691243110004
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Insulation Voltage [V], Max.:
1.6 kV
Raster measure:
3.5 mm
Standard:
VDE, UL
Continual Current [A], Max.:
10 A
Connector Configuration:
1-row, radial, side wire
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
300 V
Cable Diameter [mm], Max:
1.31 mm²
Cable Diameter [mm], Min.:
0.05 mm²
Contact Material:
Réz ötvözet
Contact Plating:
Tinned
Insulator Material:
PA66
Operating Temperature Min. [°C]:
-30 °C
Operating Temperature Max. [°C]:
+120 °C
ROHS:
Yes
Package deals
Data
Weight:
1 g/pcs
