STLZ1550/18G-3.81-V-GREEN - sorkapocs 18-pólusú NYÁK-os dugó RM1.5 (3.81mm) - PTR MESSTECHNIK

2.5918 €+ VAT
3.2916 € incl. VAT

STLZ1550/18G-3.81-V-GREEN - sorkapocs 18-pólusú NYÁK-os dugó RM1.5 (3.81mm) - PTR MESSTECHNIK

Name: STLZ1550/18G-3.81-V-GREEN - sorkapocs 18-pólusú NYÁK-os dugó RM1.5 (3.81mm) - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-29-13
Price: 3.2916 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 20 pcs

2.5918 €+ VAT
3.2916 € incl. VAT

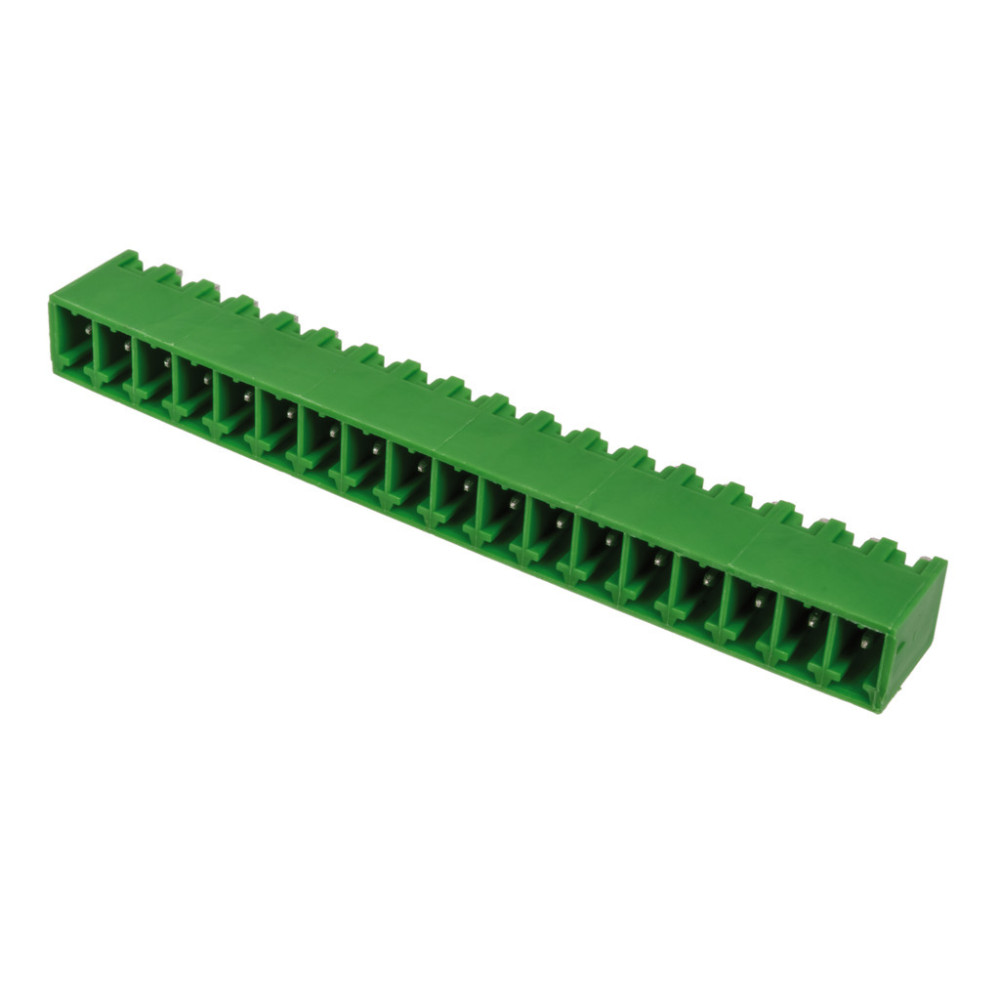

Terminal Block, 18-pole Plug for PCB RM1.5 (3.81mm)

Manufacturer code:

STLZ1550/18G-3.81-V-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_STLZ1550_..G-3.81-V-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=3.81mm

Product Range:

STLZ1550

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2.5 kV

Raster measure:

3.81 mm

Standard:

VDE, UL

Continual Current [A], Max.:

10 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

160 V

Contact Material:

Copper alloy

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Connector Configuration:

1-row, axial, 90°

1-row, radial

pcs

Our Warehouse

20 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_PTR2.pdf

Weight:

3.35 g/pcs
