MRT1P5/2GR - sorkapocs 2-pólusú rugós csatlakozás, RM=5,0mm - STELVIO
0.4095 €+ VAT
0.5201 € incl. VAT
0.5201 € incl. VAT
MRT1P5/2GR - sorkapocs 2-pólusú rugós csatlakozás, RM=5,0mm - STELVIO
The picture is for illustration purposes only. Please read the product description!
In stock 1667 pcs
0.4095 €+ VAT
0.5201 € incl. VAT
0.5201 € incl. VAT

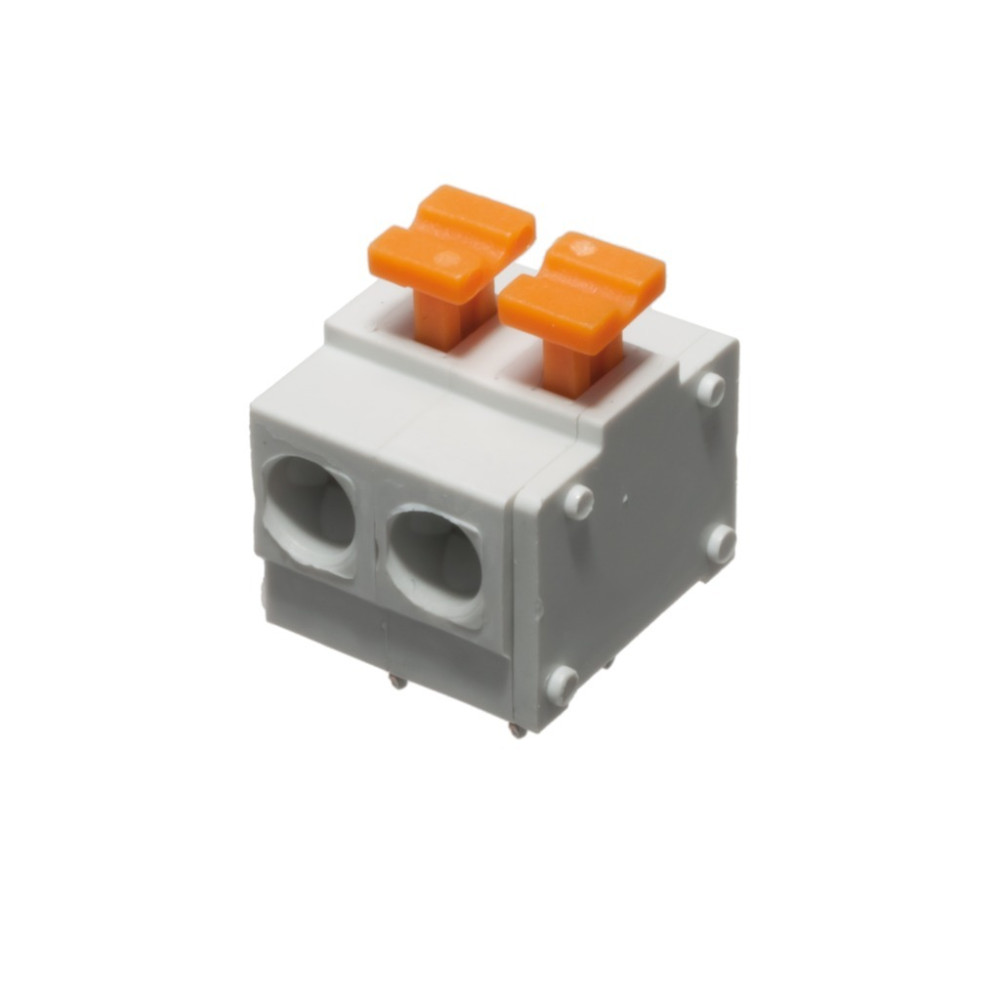

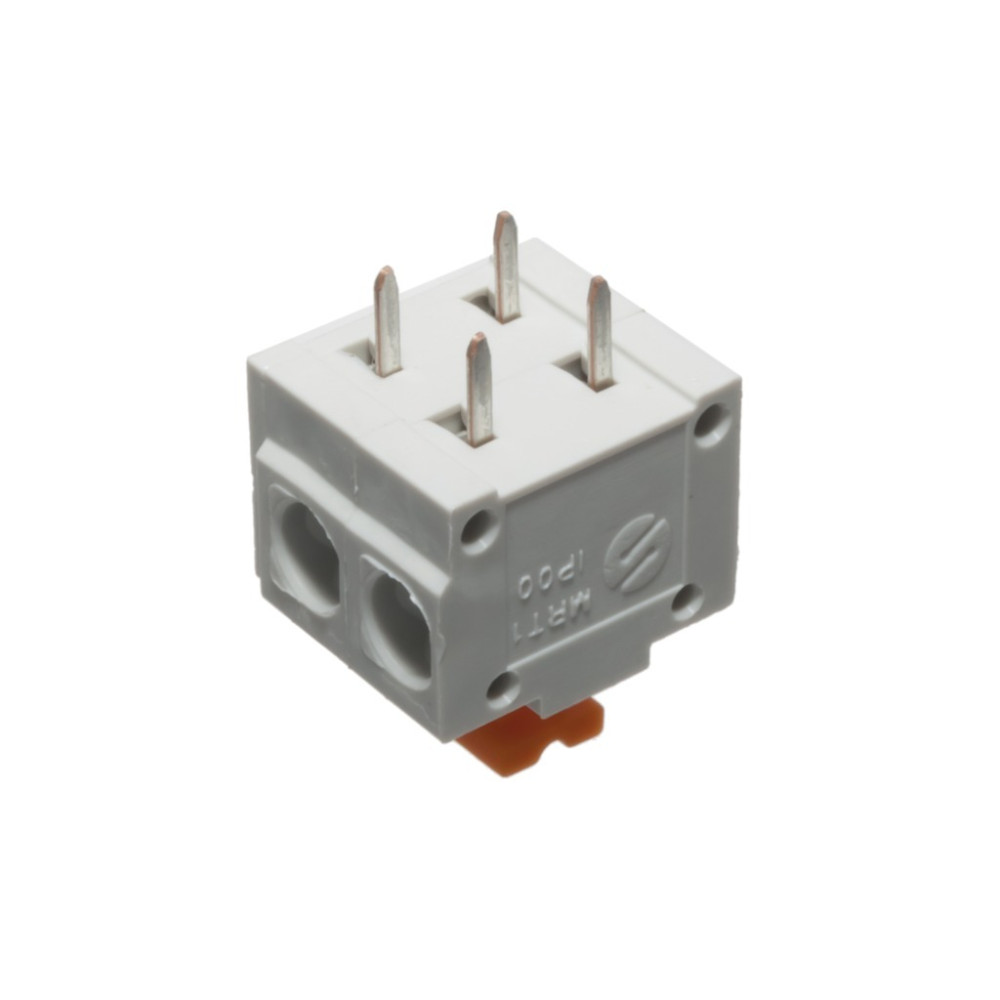

Terminal Block, 2-pole with Spring Contact, RM=5,0mm
Manufacturer code:
MRT1P5/2GR
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Spring-type
Raster measure:
5 mm
Standard:
UL, VDE, IMQ
Continual Current [A], Max.:
10 A
Connector Configuration:
1-row, radial, side wire
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
250 V
Cable Diameter [mm], Max:
1.5 mm²
Cable Diameter [mm], Min.:
0.5 mm²
Insulator Material:
PA
Operating Temperature Min. [°C]:
-30 °C
Operating Temperature Max. [°C]:
+110 °C
ROHS:
Yes
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
1.555 g/pcs
