AK500/2DS-5.0-H-GREY - 90° NYÁK-os sorkapocs 2-pólusú RM=5mm szürke - PTR MESSTECHNIK

0.2719 €+ VAT
0.3454 € incl. VAT

AK500/2DS-5.0-H-GREY - 90° NYÁK-os sorkapocs 2-pólusú RM=5mm szürke - PTR MESSTECHNIK

Name: AK500/2DS-5.0-H-GREY - 90° NYÁK-os sorkapocs 2-pólusú RM=5mm szürke - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-23-05
Price: 0.3454 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 82 pcs

0.2719 €+ VAT
0.3454 € incl. VAT

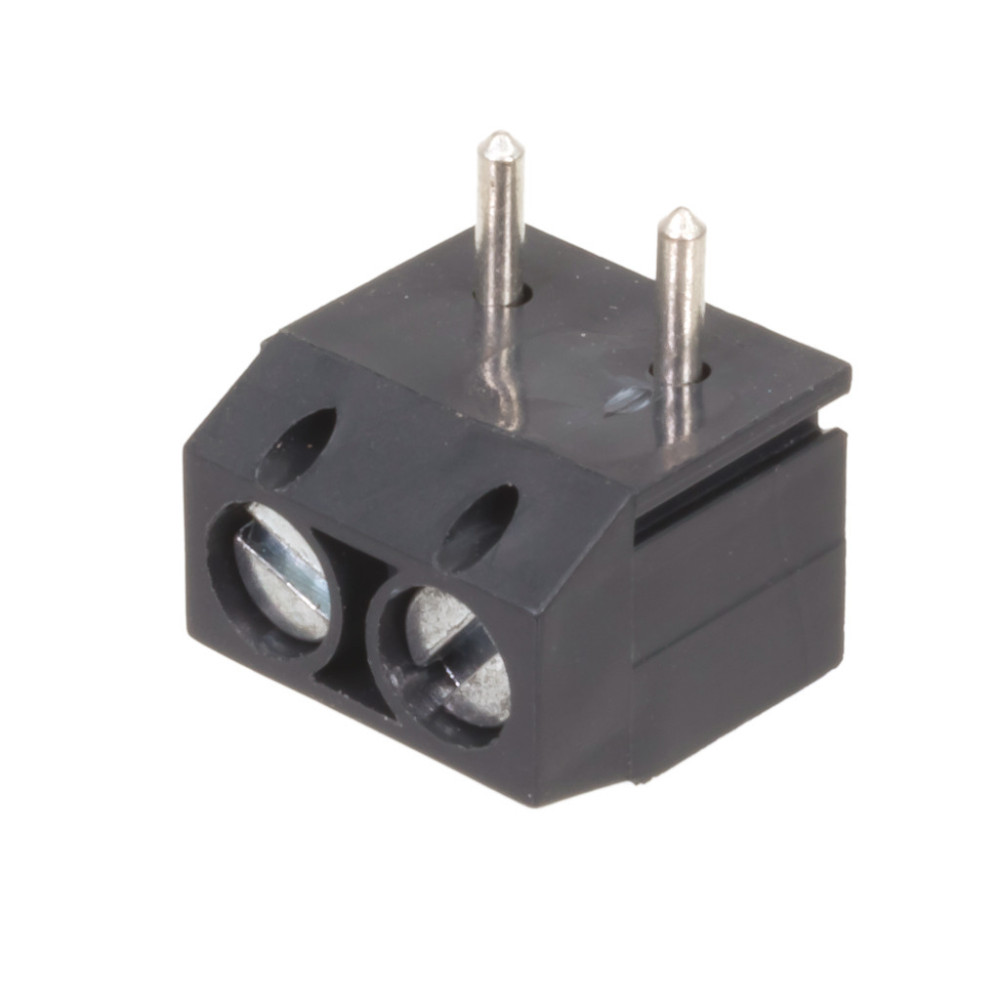

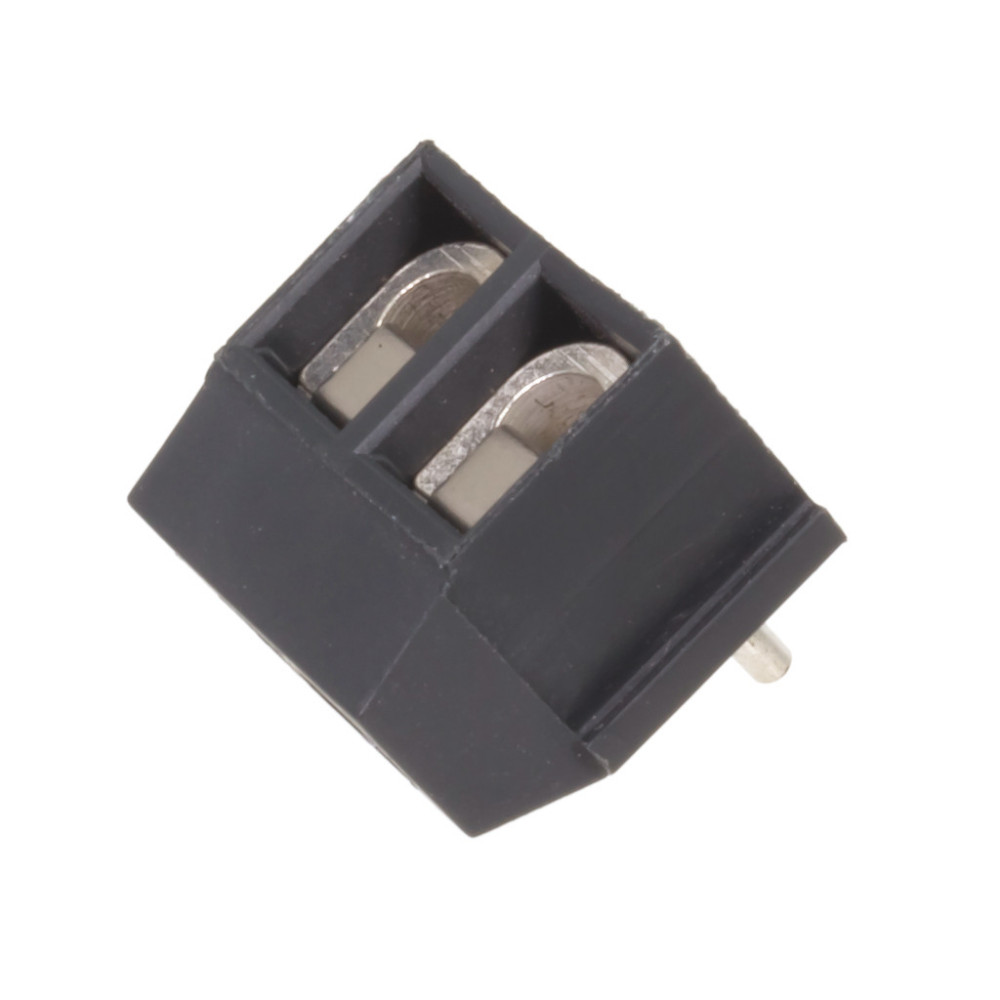

Terminal Block, 90° for PCB 2-pole RM=5mm Grey

Manufacturer code:

AK500/2DS-5.0-H-GREY

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AK500_..DS-5.0-H-GREY.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.0mm

Product Range:

AK500

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

1.6 kV

Raster measure:

5 mm

Standard:

RU, VDE

Continual Current [A], Max.:

15 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

300 V

Cable Diameter [mm], Max:

1.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Brass

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Connector Configuration:

1-row, radial, side wire

1-row, axial, upper wire

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

0,22 €

0,29 €

Our Warehouse

82 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_PTR2.pdf
