AK130/4-5.0-GREY - sorkapocs tüskesorra 4-pólusú RM=5mm - PTR MESSTECHNIK
0.8767 €+ VAT
1.1134 € incl. VAT
1.1134 € incl. VAT
AK130/4-5.0-GREY - sorkapocs tüskesorra 4-pólusú RM=5mm - PTR MESSTECHNIK

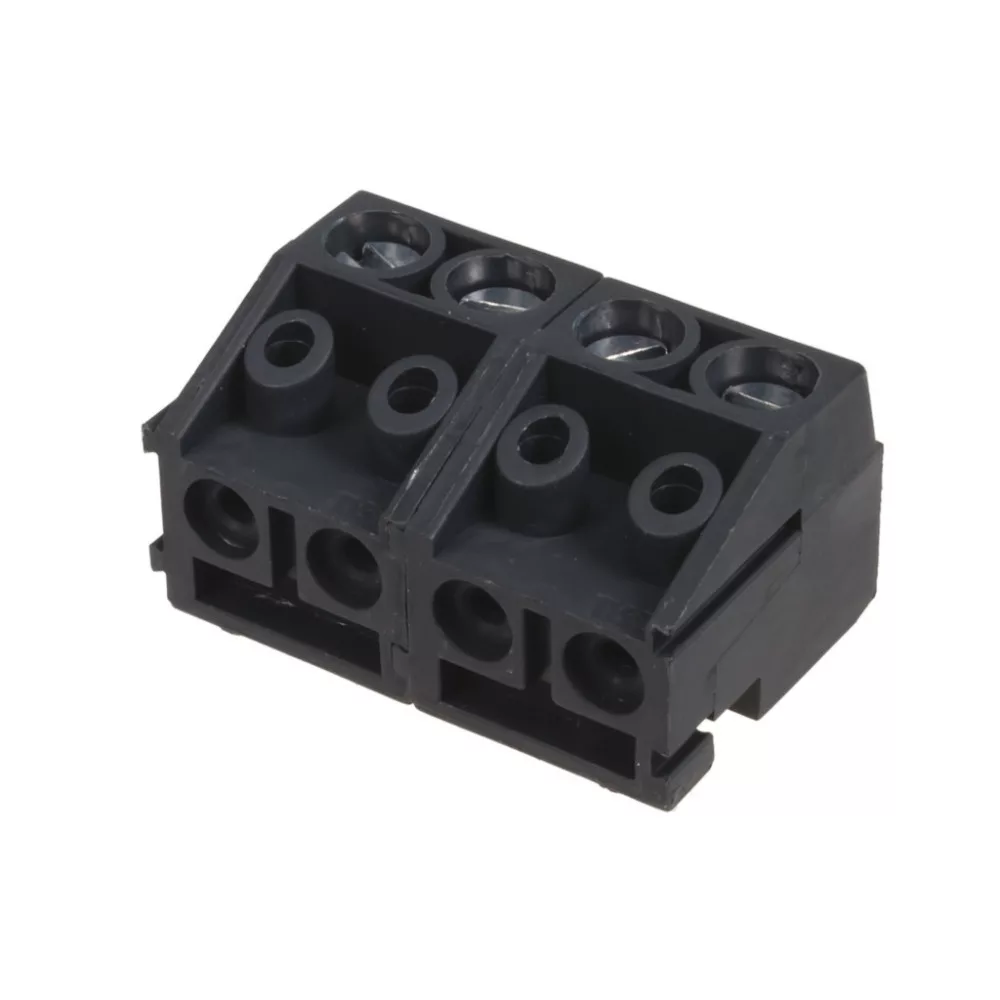

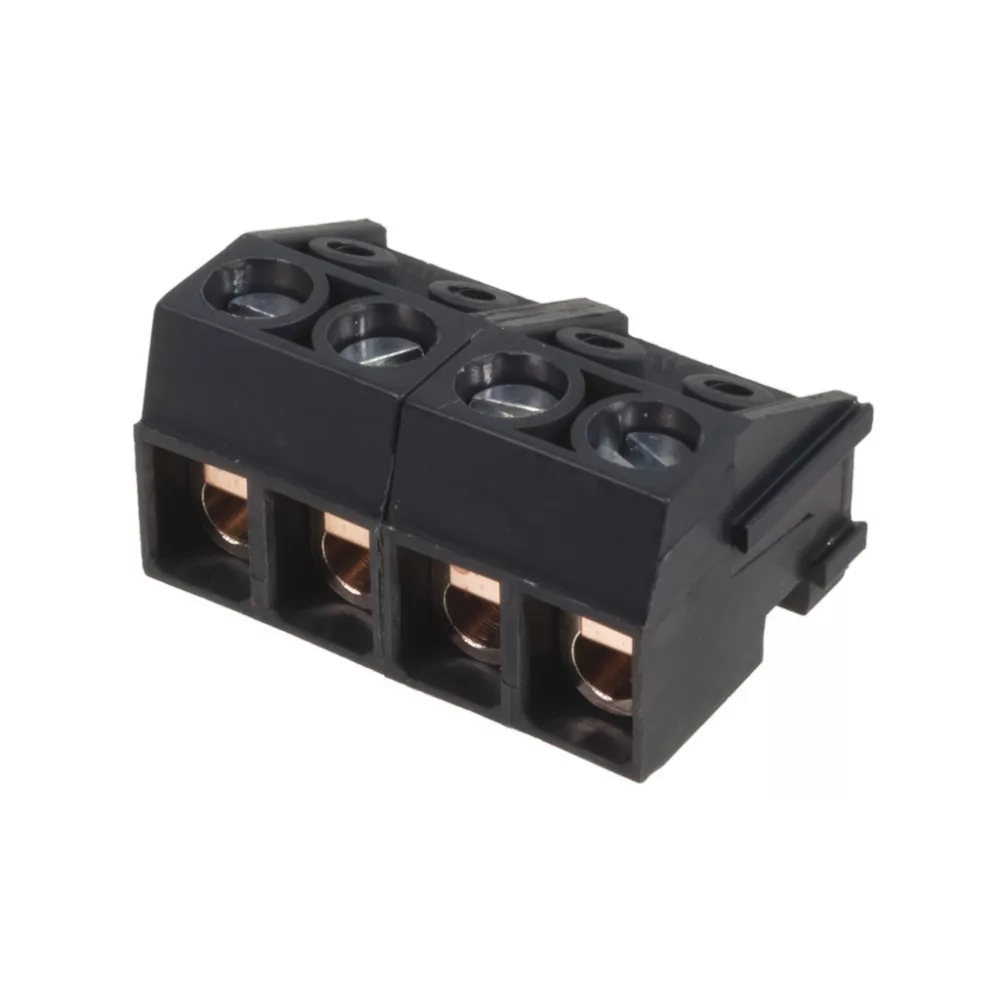

The picture is for illustration purposes only. Please read the product description!
In stock 110 pcs
0.8767 €+ VAT
1.1134 € incl. VAT
1.1134 € incl. VAT
Terminal Block, for Pin Header 4-pole RM=5mm
Manufacturer code:
AK130/4-5.0-GREY
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Insulation Voltage [V], Max.:
4 kV
Raster measure:
5 mm
Standard:
VDE, UL
Continual Current [A], Max.:
7 A
Connector Configuration:
1-row, radial, side wire
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
250 V
Cable Diameter [mm], Max:
1.5 mm²
Cable Diameter [mm], Min.:
0.14 mm²
Contact Material:
Brass-/copper alloy
Insulator Material:
PA 66
Operating Temperature Min. [°C]:
-30 °C
Operating Temperature Max. [°C]:
+105 °C
ROHS:
Yes
