CPP3.81/3SQVE - 3-pólusú NYÁK-os 90° sorkapocs RM=3.81mm zöld, 8.35mm magas - STELVIO

0.387 €+ VAT
0.4914 € incl. VAT

CPP3.81/3SQVE - 3-pólusú NYÁK-os 90° sorkapocs RM=3.81mm zöld, 8.35mm magas - STELVIO

Name: CPP3.81/3SQVE - 3-pólusú NYÁK-os 90° sorkapocs RM=3.81mm zöld, 8.35mm magas - STELVIO
Brand: STELVIO
SKU: 53-19-08
Price: 0.4914 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 428 pcs

End of Life

0.387 €+ VAT
0.4914 € incl. VAT

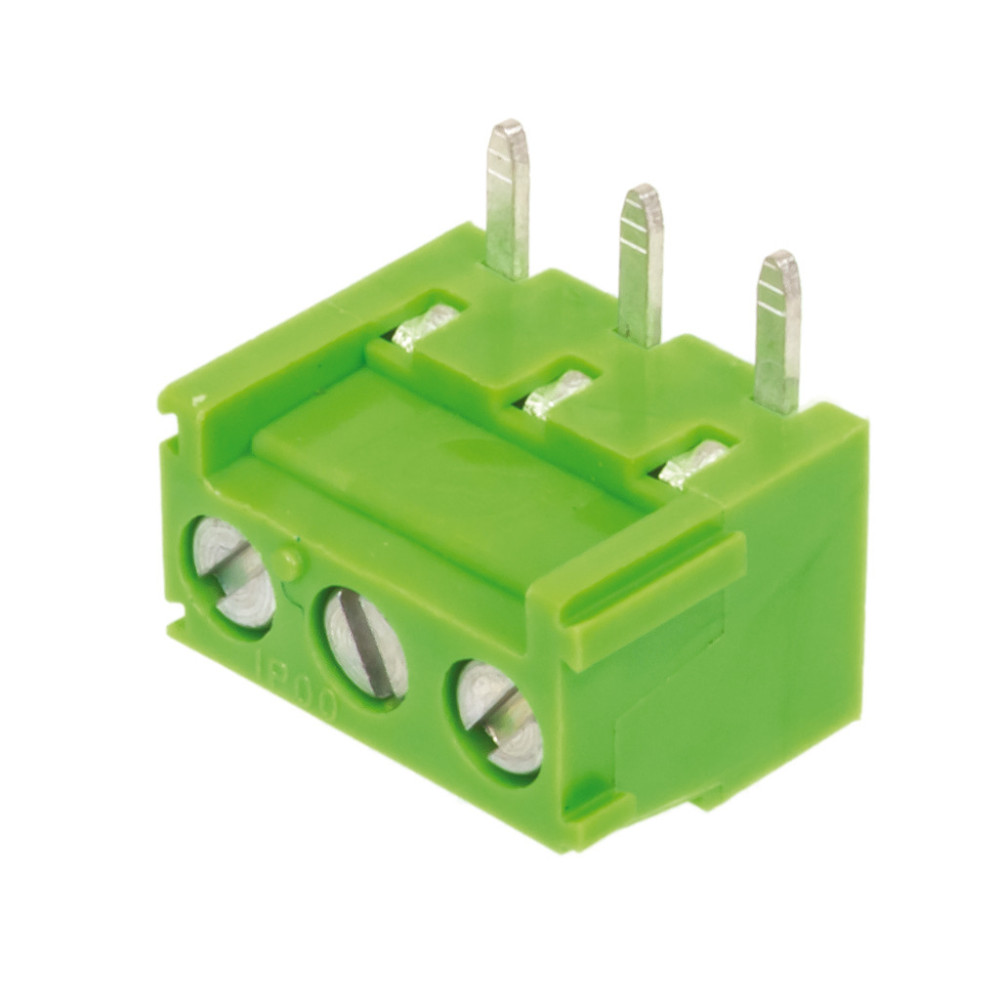

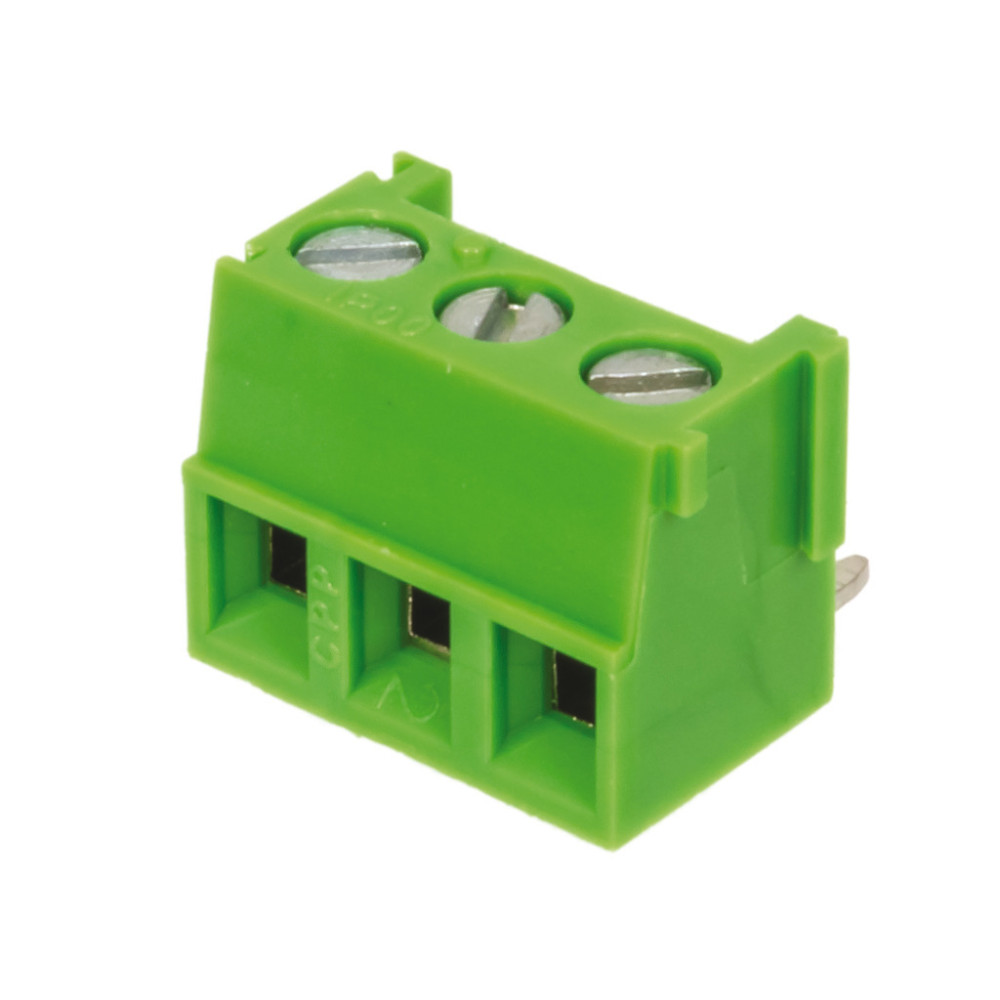

Terminal Block, 3-pole 90° for PCB RM=3.81mm Green, 8.35mm High

Manufacturer code:

CPP3.81/3SQVE

Manufacturer:

STELVIO

Datasheet:

Stelvio_CPP.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=3.81mm

Product Range:

CPP

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2.5 kV

Standard:

VDE, UL, IMQ

Continual Current [A], Max.:

10 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

160 V

Cable Diameter [mm], Max:

1 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Copper alloy

Contact Plating:

Tinned

Insulator Material:

Operating Temperature Max. [°C]:

+110 °C

ROHS:

Yes

Number of Pins:

Raster measure:

3.5 mm

3.81 mm

Connector Configuration:

1-row, radial

1-row, axial, upper wire

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,29 €

0,37 €

Our Warehouse

428 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_040.pdf ROHS_Stelvio.pdf

Weight:

1.487 g/pcs
