AKZ1110/12-5.08-GREEN - sorkapocs 12-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../12-típushoz - PTR MESSTECHNIK

4.7047 €+ VAT
5.9749 € incl. VAT

AKZ1110/12-5.08-GREEN - sorkapocs 12-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../12-típushoz - PTR MESSTECHNIK

Name: AKZ1110/12-5.08-GREEN - sorkapocs 12-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../12-típushoz - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-18-98
Price: 5.9749 EUR
Availability: InStock

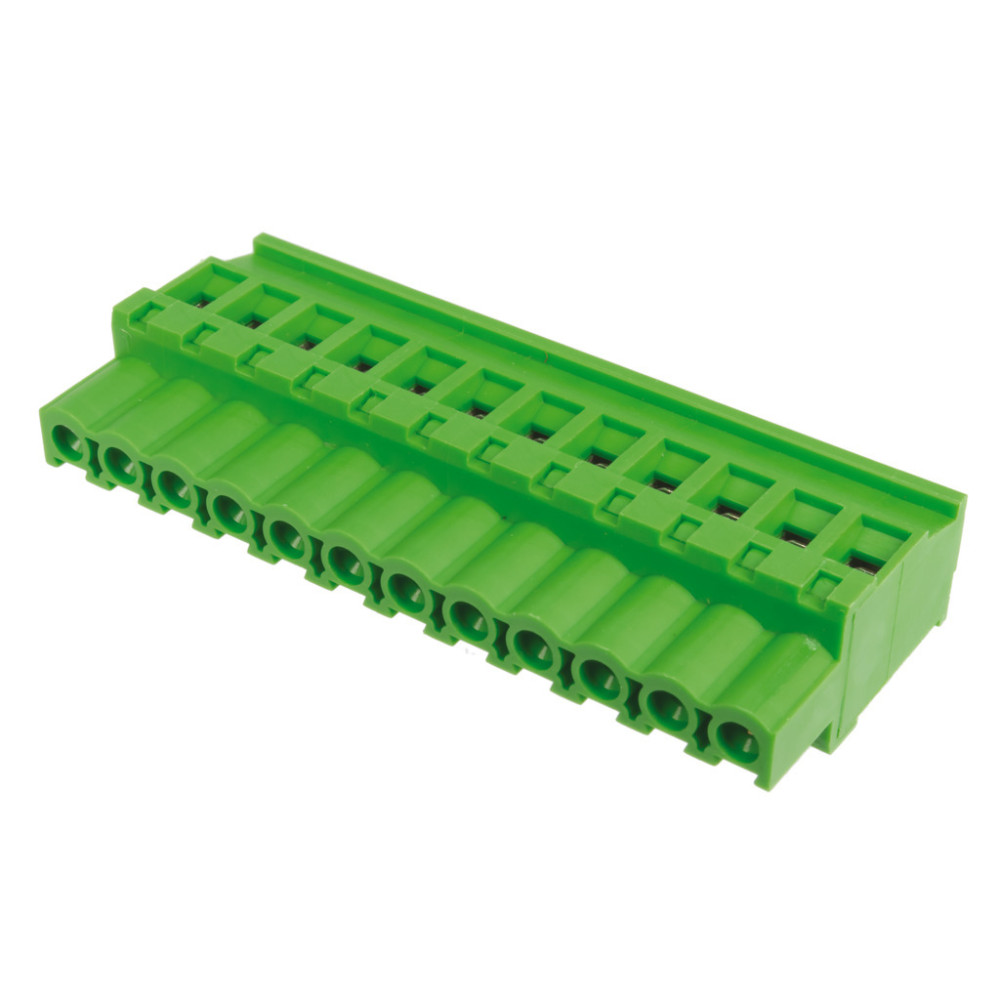

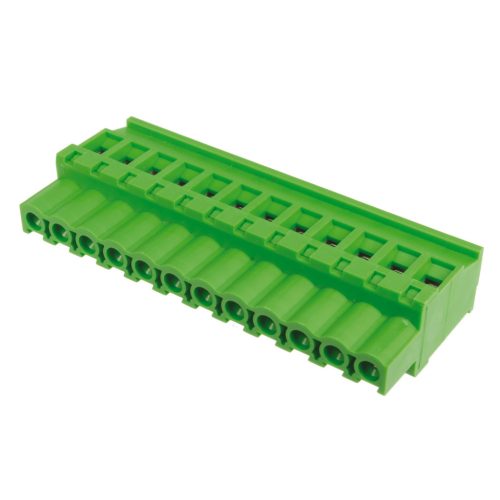

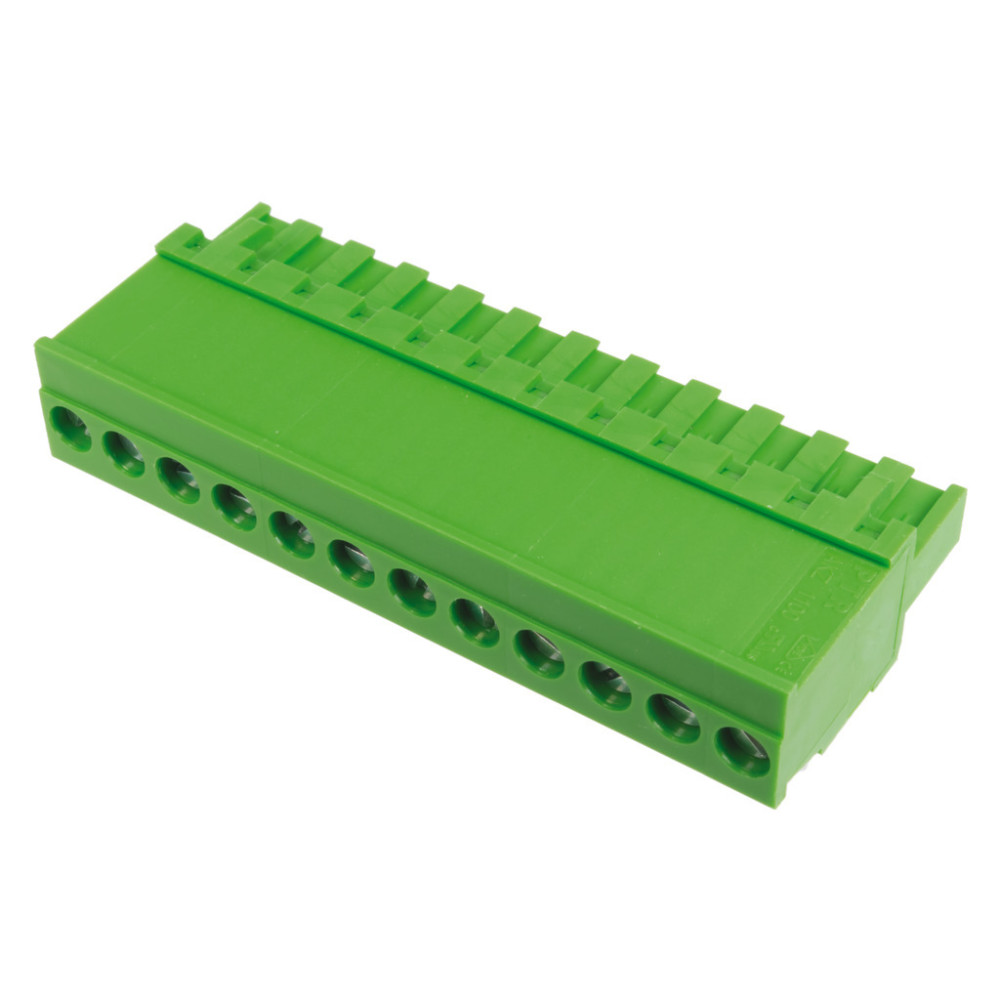

The picture is for illustration purposes only. Please read the product description!

In stock 133 pcs

4.7047 €+ VAT
5.9749 € incl. VAT

Terminal Block, 12-pole Socket for Cable RM2 (5.08mm) for STLZ 9../12

Manufacturer code:

AKZ1110/12-5.08-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AKZ1110_..-5.08-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.08mm

Product Range:

AKZ1110

Case:

Swinging

Termination Type:

screwy

Insulation Voltage [V], Max.:

4 kV

Raster measure:

5.08 mm

Standard:

VDE, UL

Continual Current [A], Max.:

10 A

Connector Configuration:

1-row, radial, side wire

Connector Type:

Terminal block for cable

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Bronze

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Our Warehouse

133 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_032.pdf ROHS_PTR2.pdf

Weight:

23.35 g/pcs
