STLZ950/14G-5.08-H-GREEN - 90° sorkapocs 14-pólusú NYÁK-os dugó RM2 (5.08mm) ARKZ 950/14-típushoz - PTR MESSTECHNIK

1.9168 €+ VAT
2.4344 € incl. VAT

STLZ950/14G-5.08-H-GREEN - 90° sorkapocs 14-pólusú NYÁK-os dugó RM2 (5.08mm) ARKZ 950/14-típushoz - PTR MESSTECHNIK

Name: STLZ950/14G-5.08-H-GREEN - 90° sorkapocs 14-pólusú NYÁK-os dugó RM2 (5.08mm) ARKZ 950/14-típushoz - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-16-59
Price: 2.4344 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 20 pcs

1.9168 €+ VAT
2.4344 € incl. VAT

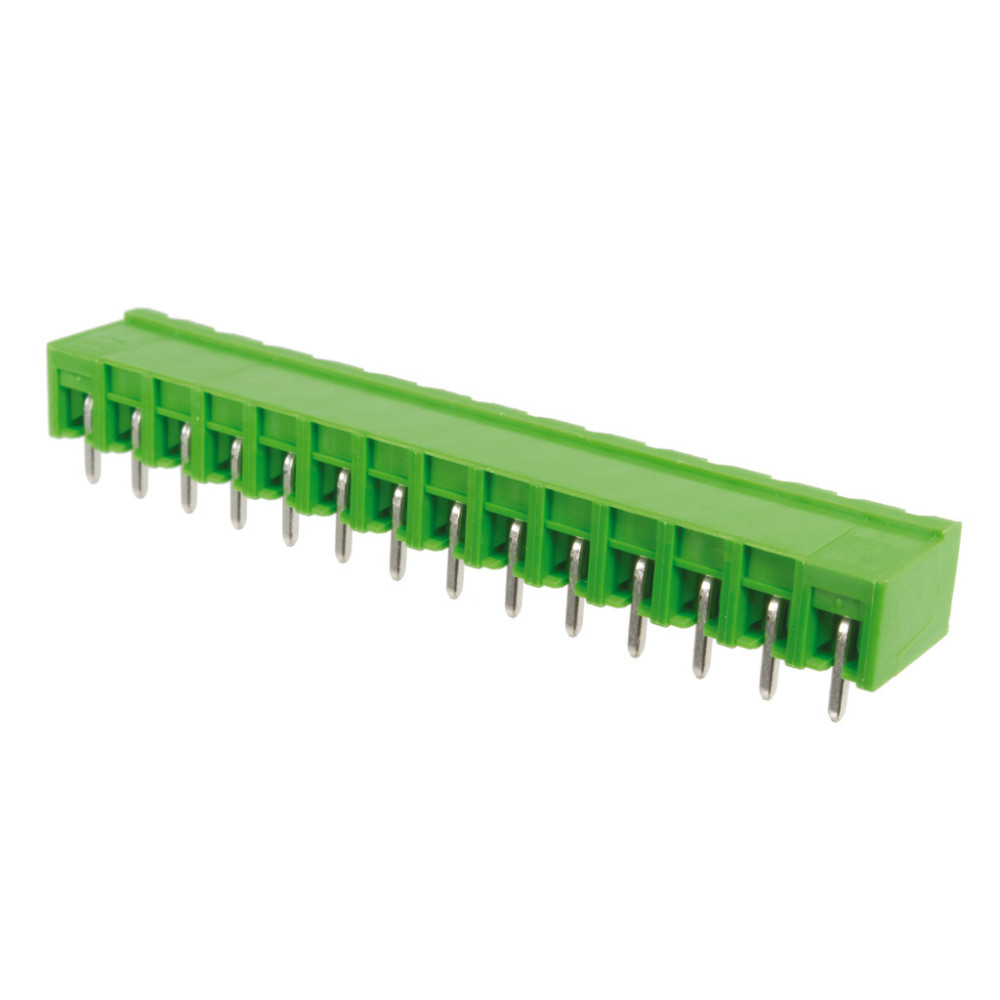

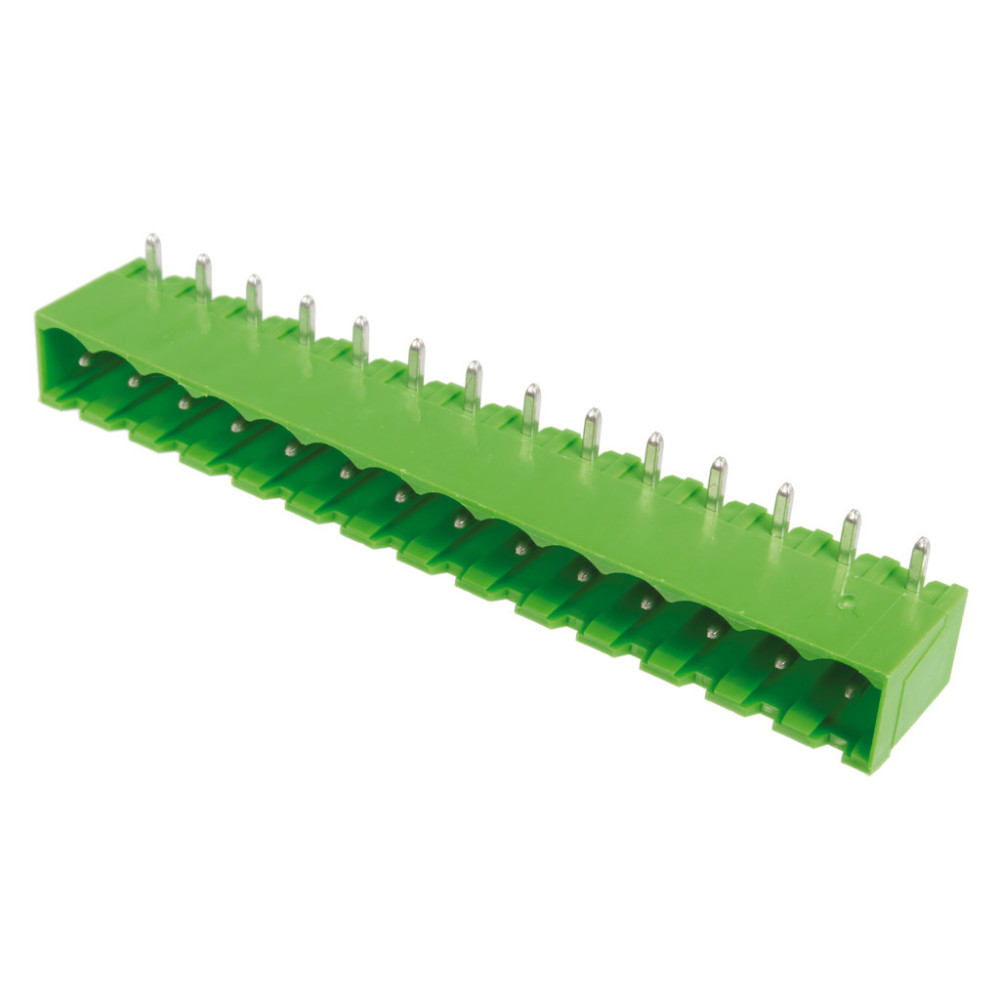

Terminal Block, 90° 14-pole Plug for PCB RM2 (5.08mm) for ARKZ 950/14

Manufacturer code:

STLZ950/14G-5.08-H-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_STLZ950_..G-5.08-H-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.08mm

Product Range:

STLZ950

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

4 kV

Raster measure:

5.08 mm

Standard:

VDE, UL

Continual Current [A], Max.:

12 A

Connector Configuration:

1-row, axial, 90°

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Contact Material:

Copper alloy

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Our Warehouse

20 pcs

Available for immediate delivery

Info

Additional Datasheet:

RETKAT2012_L_031.pdf ROHS_PTR2.pdf
