AK2200/16-5.0-H-GREEN - NYÁK-os sorkapocs 16-pólusú RM=5.00mm zöld 19.5mm magas lezáróval - PTR MESSTECHNIK

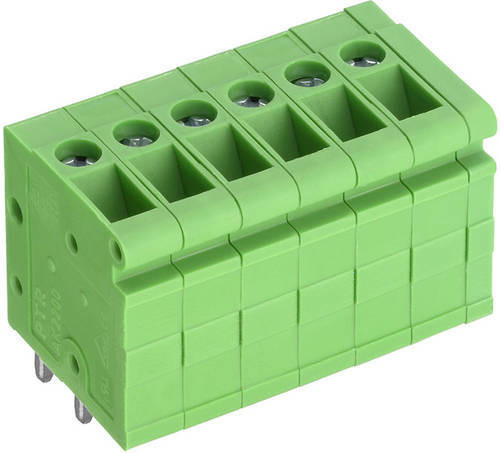

The picture is for illustration purposes only. Please read the product description!
Out of stock
Terminal Block, for PCB 16-pole RM=5.00mm Green 19.5mm High with Side Wall
Manufacturer code:
AK2200/16-5.0-H-GREEN
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Insulation Voltage [V], Max.:
2 kV
Raster measure:
5 mm
Standard:
VDE, UL
Continual Current [A], Max.:
24 A
Connector Configuration:
1-row, radial, upper wire
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
250 V
Cable Diameter [mm], Max:
2.5 mm²
Cable Diameter [mm], Min.:
0.2 mm²
Contact Material:
Steel plate
Insulator Material:
PA 66
Operating Temperature Min. [°C]:
-30 °C
Operating Temperature Max. [°C]:
+105 °C
ROHS:
Yes
Package deals
Data
Additional Datasheet:
