CLL5.08/3VE - NYÁK-os sorkapocs 3-pólusú, RM=5.08mm zöld 13.8mm magas - STELVIO

0.5017 €+ VAT
0.6372 € incl. VAT

CLL5.08/3VE - NYÁK-os sorkapocs 3-pólusú, RM=5.08mm zöld 13.8mm magas - STELVIO

Name: CLL5.08/3VE - NYÁK-os sorkapocs 3-pólusú, RM=5.08mm zöld 13.8mm magas - STELVIO
Brand: STELVIO
SKU: 53-08-06
Price: 0.6372 EUR
Availability: InStock

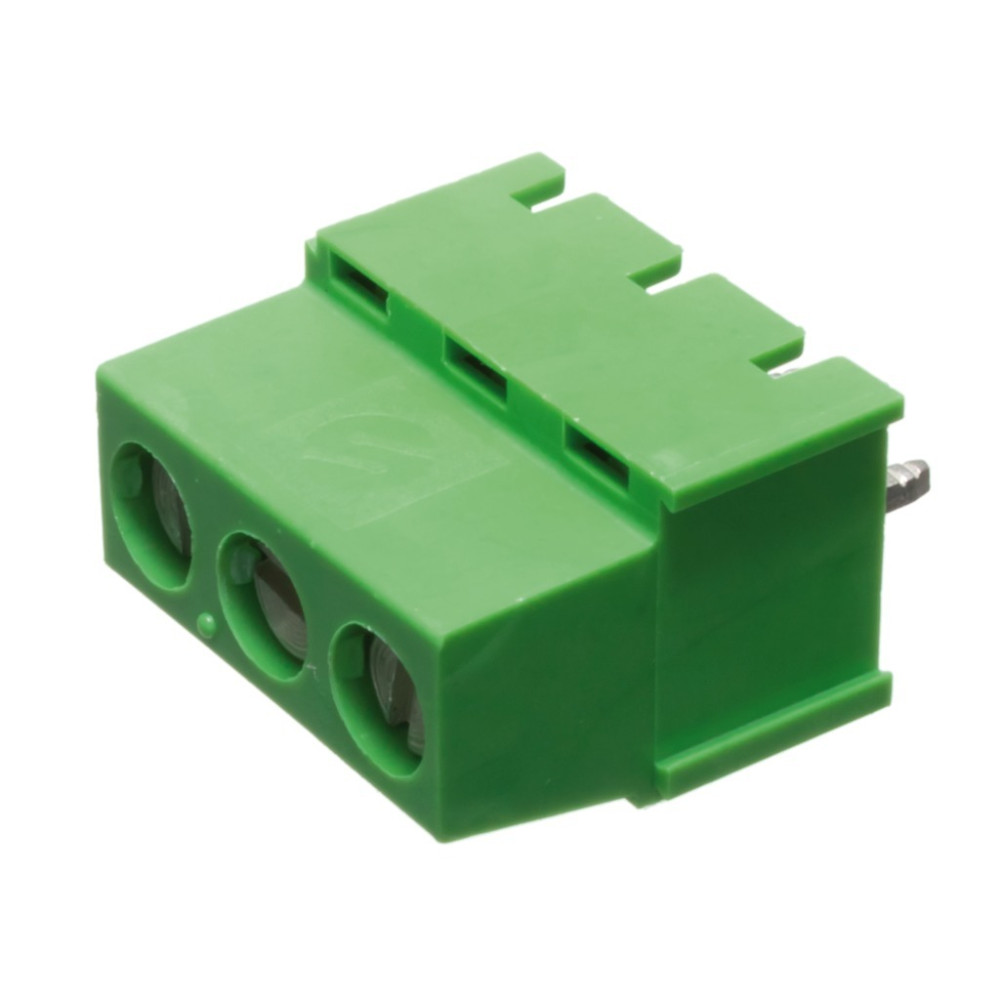

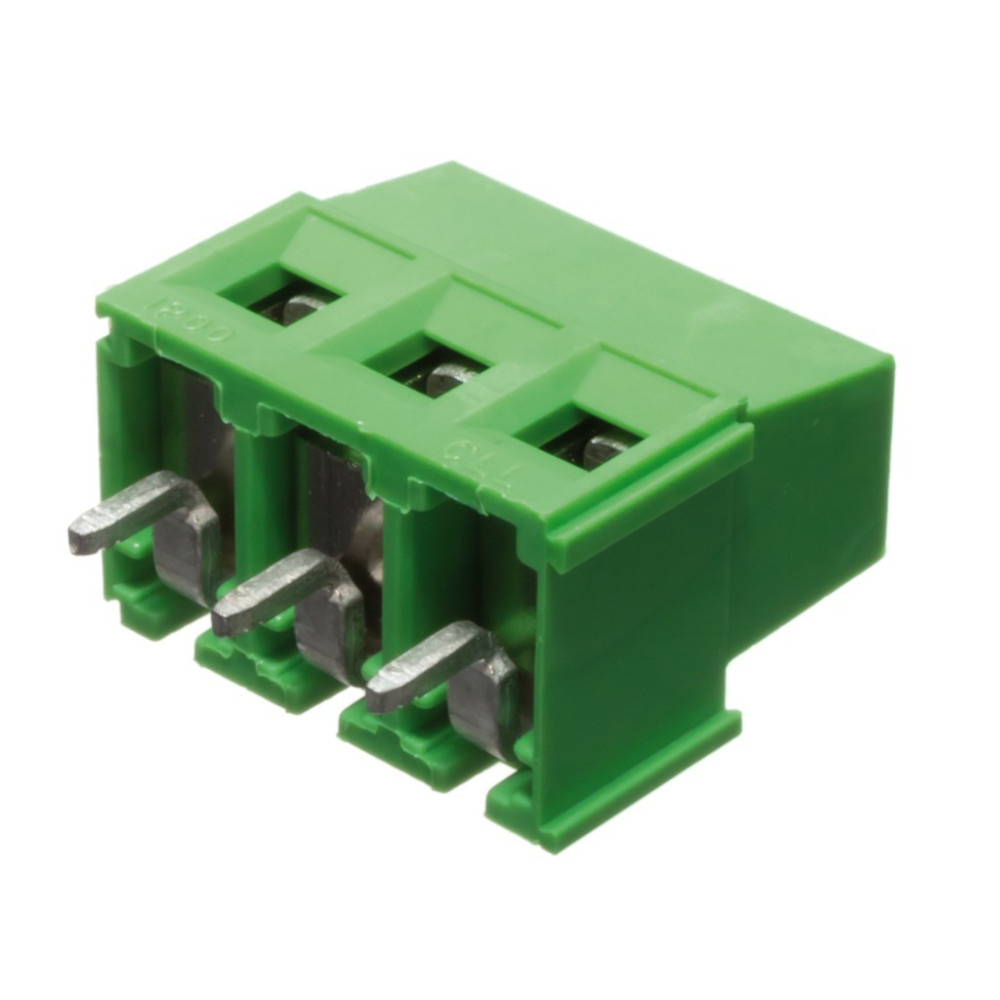

The picture is for illustration purposes only. Please read the product description!

In stock 21134 pcs

End of Life

0.5017 €+ VAT
0.6372 € incl. VAT

Terminal Block, for PCB 3-pole, RM=5.08mm Green 13.8mm High

Manufacturer code:

CLL5.08/3VE

Manufacturer:

STELVIO

Datasheet:

Stelvio_CLL.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.08mm

Product Range:

CLL

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

4 kV

Standard:

VDE, UL, IMQ

Continual Current [A], Max.:

24 A

Connector Configuration:

1-row, radial, side wire

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Copper alloy

Contact Plating:

Tinned

Insulator Material:

Operating Temperature Max. [°C]:

+110 °C

ROHS:

Yes

Number of Pins:

Raster measure:

5.08 mm

7.62 mm

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,39 €

0,49 €

Our Warehouse

21086 pcs

Available for immediate delivery

Our Shop in Szeged

48 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_041.pdf ROHS_Stelvio.pdf

Weight:

4.5 g/pcs
