AK700/3-5.0-H-GREEN - 90° NYÁK-os sorkapocs 3-pólusú RM=5.00mm zöld 18mm magas 90°-os lábak - PTR MESSTECHNIK

0.5957 €+ VAT
0.7566 € incl. VAT

AK700/3-5.0-H-GREEN - 90° NYÁK-os sorkapocs 3-pólusú RM=5.00mm zöld 18mm magas 90°-os lábak - PTR MESSTECHNIK

Name: AK700/3-5.0-H-GREEN - 90° NYÁK-os sorkapocs 3-pólusú RM=5.00mm zöld 18mm magas 90°-os lábak - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-07-35
Price: 0.7566 EUR
Availability: InStock

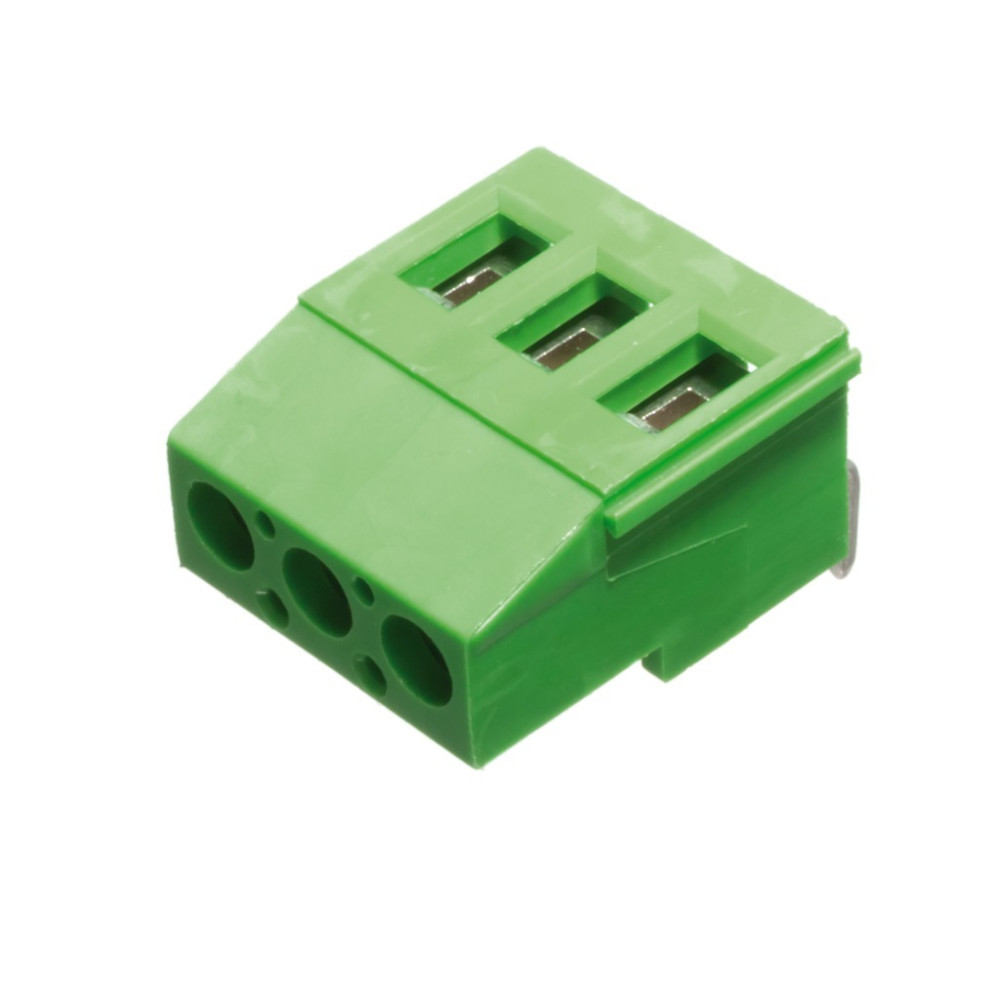

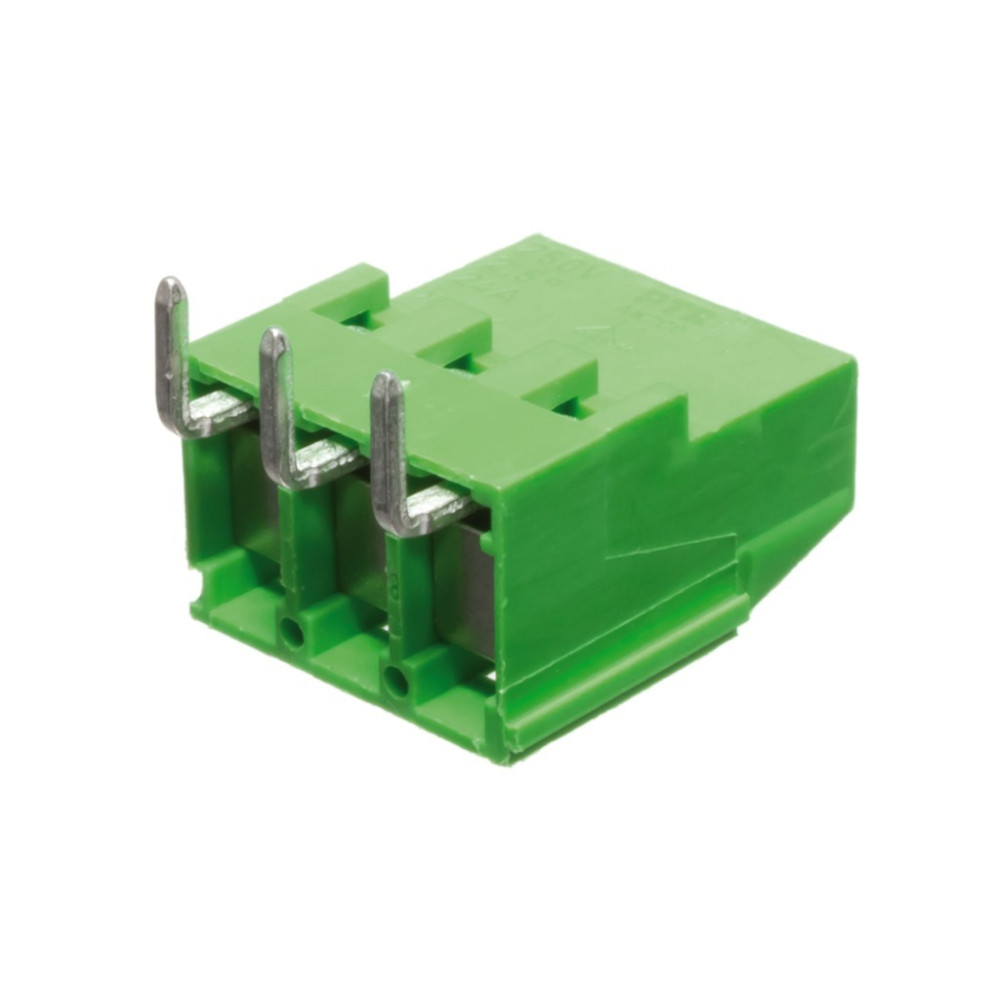

The picture is for illustration purposes only. Please read the product description!

In stock 960 pcs

0.5957 €+ VAT
0.7566 € incl. VAT

Terminal Block, 90° for PCB 3-pole RM=5.00mm Green 18mm High 90°

Manufacturer code:

AK700/3-5.0-H-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AK700_..-5.0-H-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.0mm

Product Range:

AK700

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2 kV

Raster measure:

5 mm

Standard:

VDE, UL

Continual Current [A], Max.:

24 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Brass

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Connector Configuration:

1-row, axial, upper wire

1-row, radial, side wire

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

100

0,40 €

0,50 €

Our Warehouse

959 pcs

Available for immediate delivery

Our Shop in Szeged

1 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Info

Additional Datasheet:

RETKAT2012_L_036.pdf ROHS_PTR2.pdf

Weight:

5.9 g/pcs
