AKZ700/2-5.08-V-GREEN - NYÁK-os sorkapocs 2-pólusú RM=5.08mm zöld 19mm magas - PTR MESSTECHNIK

0.5154 €+ VAT
0.6546 € incl. VAT

AKZ700/2-5.08-V-GREEN - NYÁK-os sorkapocs 2-pólusú RM=5.08mm zöld 19mm magas - PTR MESSTECHNIK

Name: AKZ700/2-5.08-V-GREEN - NYÁK-os sorkapocs 2-pólusú RM=5.08mm zöld 19mm magas - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-05-57
Price: 0.6546 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 428 pcs

0.5154 €+ VAT
0.6546 € incl. VAT

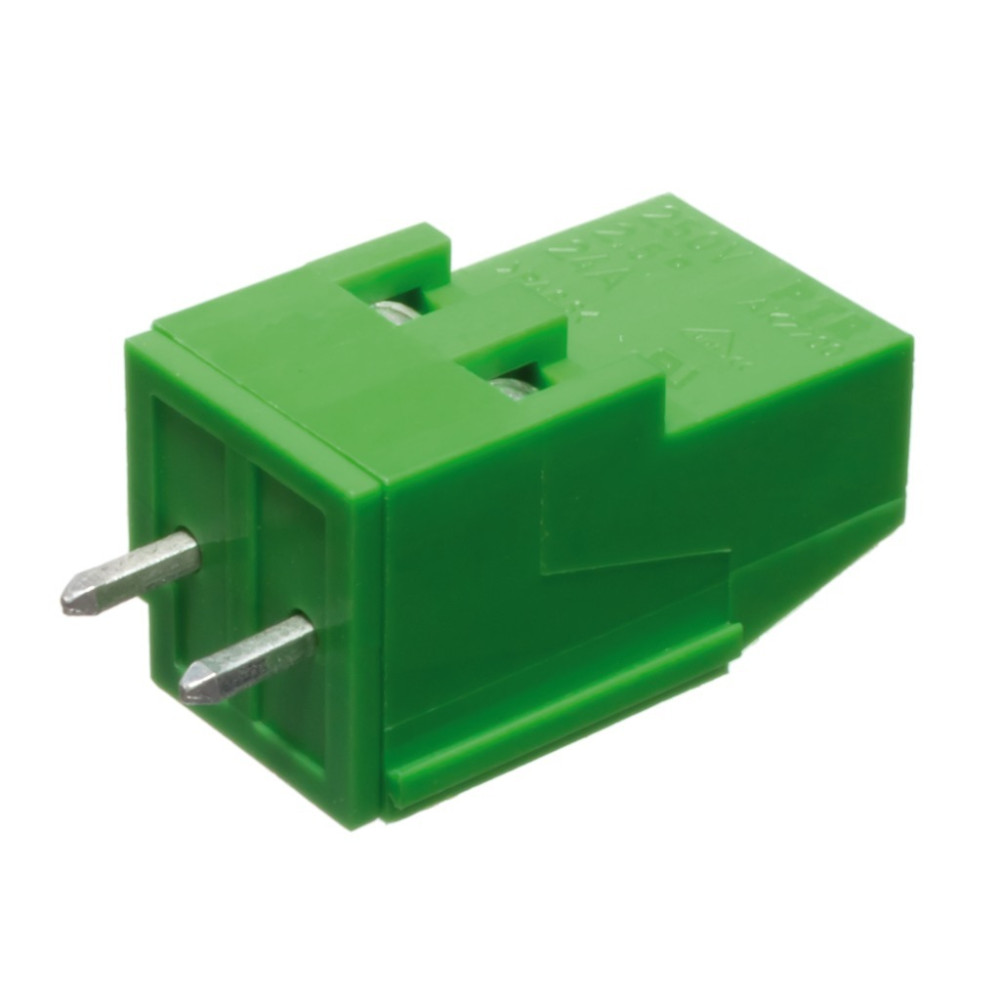

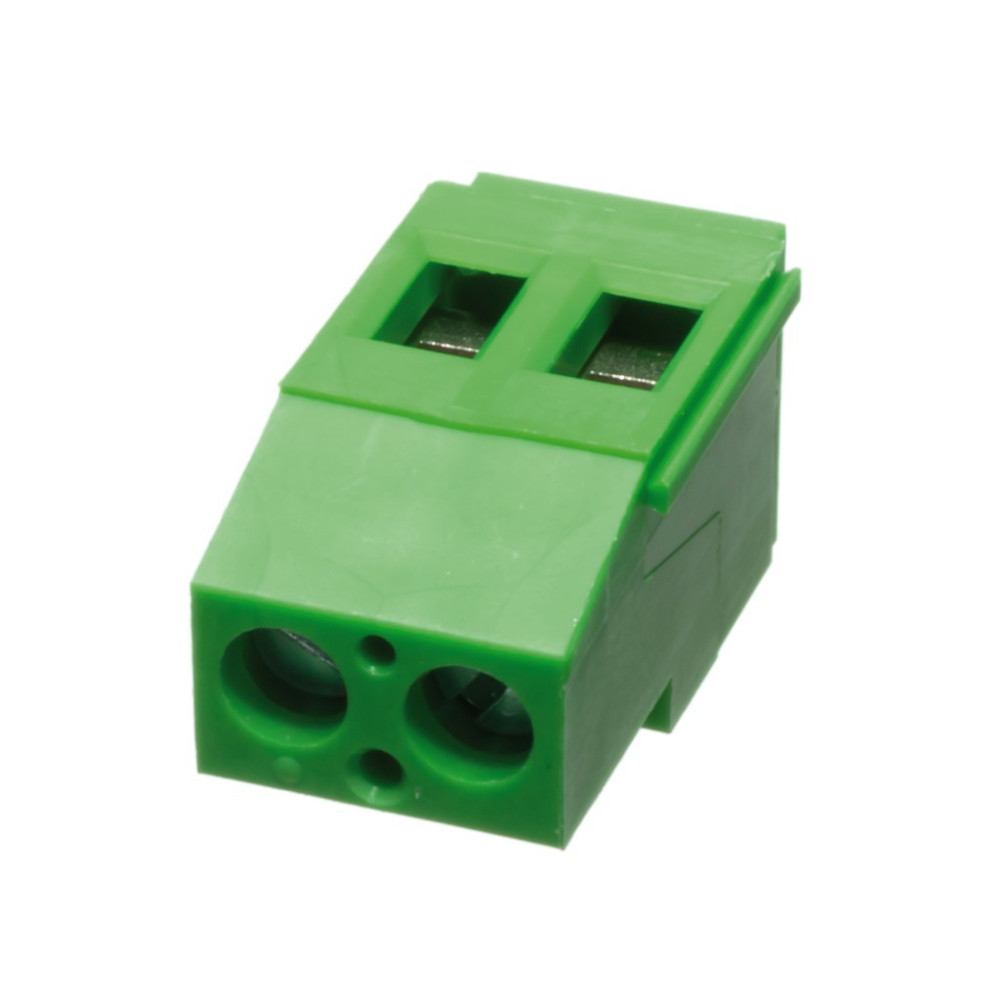

Terminal Block, for PCB 2-pole RM=5.08mm Green 19mm High

Manufacturer code:

AKZ700/2-5.08-V-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AKZ700_..-5.08-V-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.08mm

Product Range:

AKZ700

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2 kV

Raster measure:

5.08 mm

Standard:

VDE, UL

Continual Current [A], Max.:

24 A

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.2 mm²

Contact Material:

Brass

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

Connector Configuration:

1-row, radial, side wire

1-row, axial, upper wire

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

200

0,32 €

0,41 €

Our Warehouse

427 pcs

Available for immediate delivery

Our Shop in Szeged

1 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_033.pdf ROHS_PTR2.pdf

Weight:

4.1 g/pcs
