AKZ950/5-5.08-GREEN - sorkapocs 5-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../5-típushoz - PTR MESSTECHNIK

1.2931 €+ VAT
1.6423 € incl. VAT

AKZ950/5-5.08-GREEN - sorkapocs 5-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../5-típushoz - PTR MESSTECHNIK

Name: AKZ950/5-5.08-GREEN - sorkapocs 5-pólusú lengő aljzat RM2 (5.08mm) STLZ 9../5-típushoz - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-03-44
Price: 1.6423 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 477 pcs

1.2931 €+ VAT
1.6423 € incl. VAT

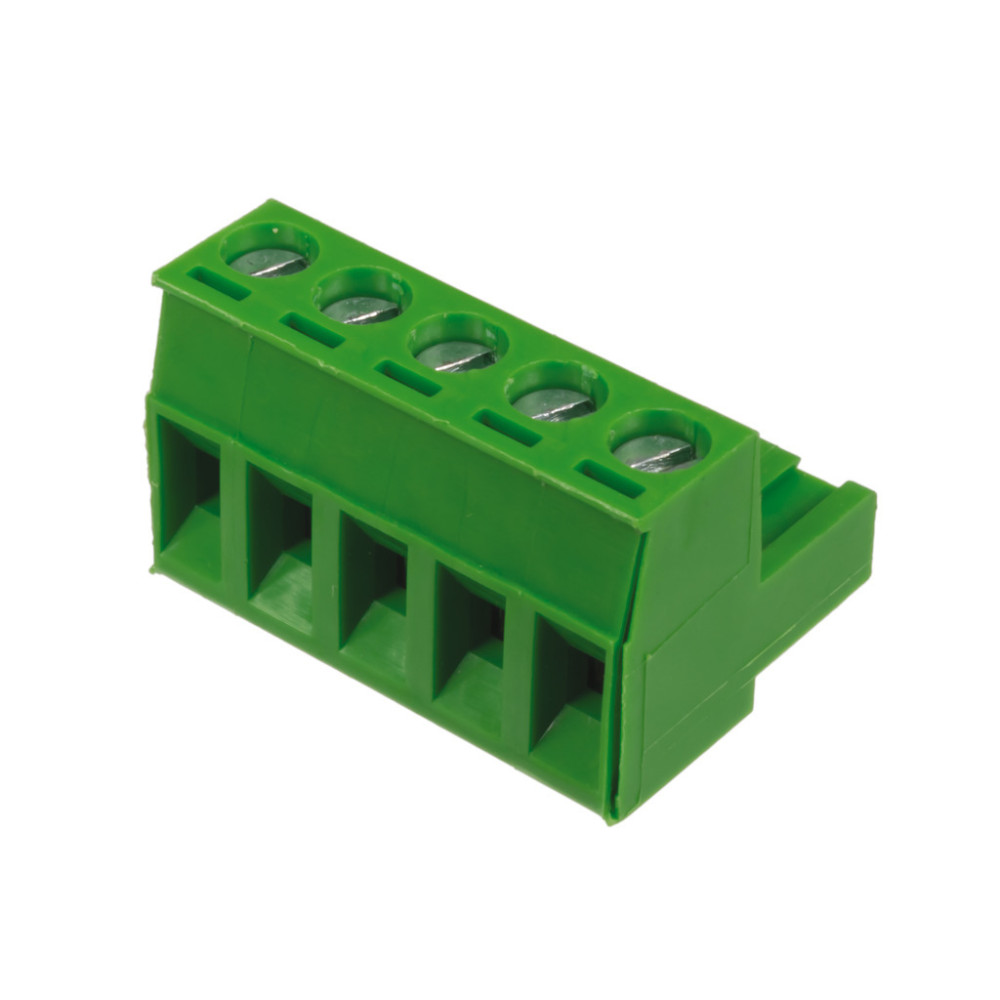

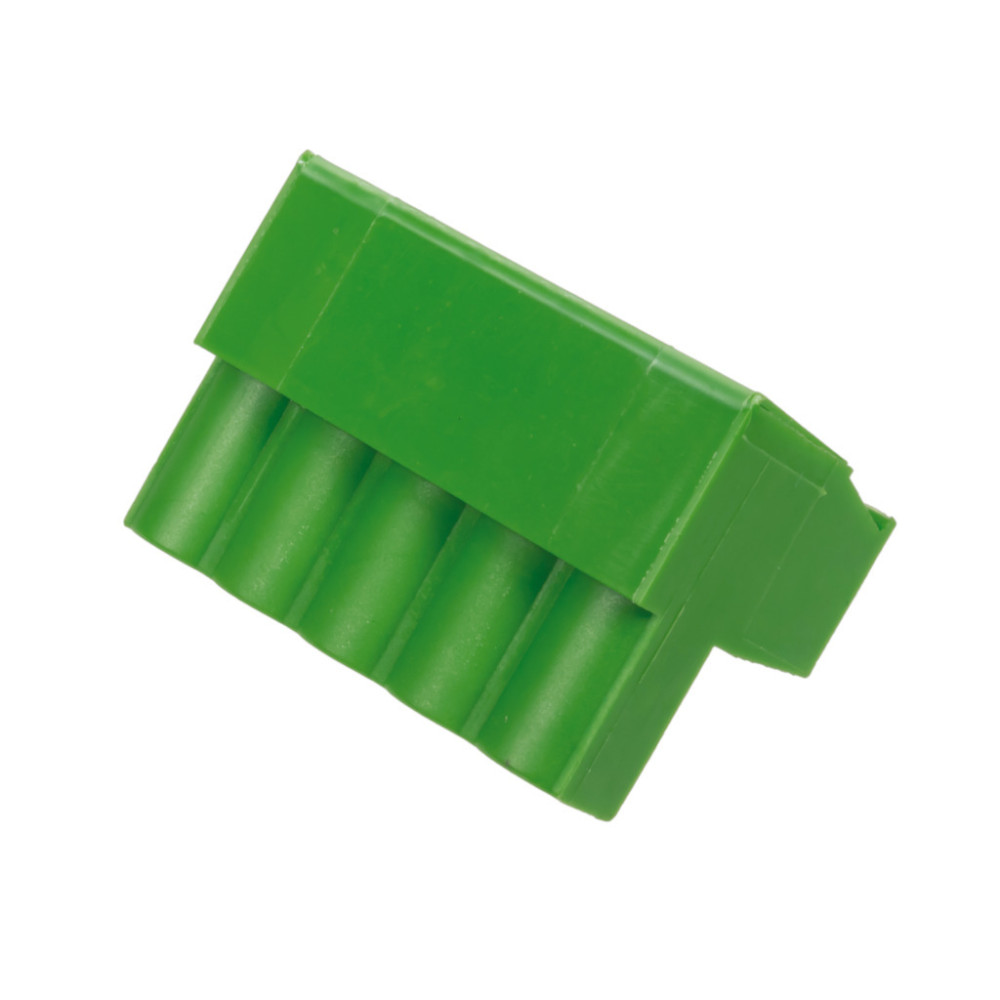

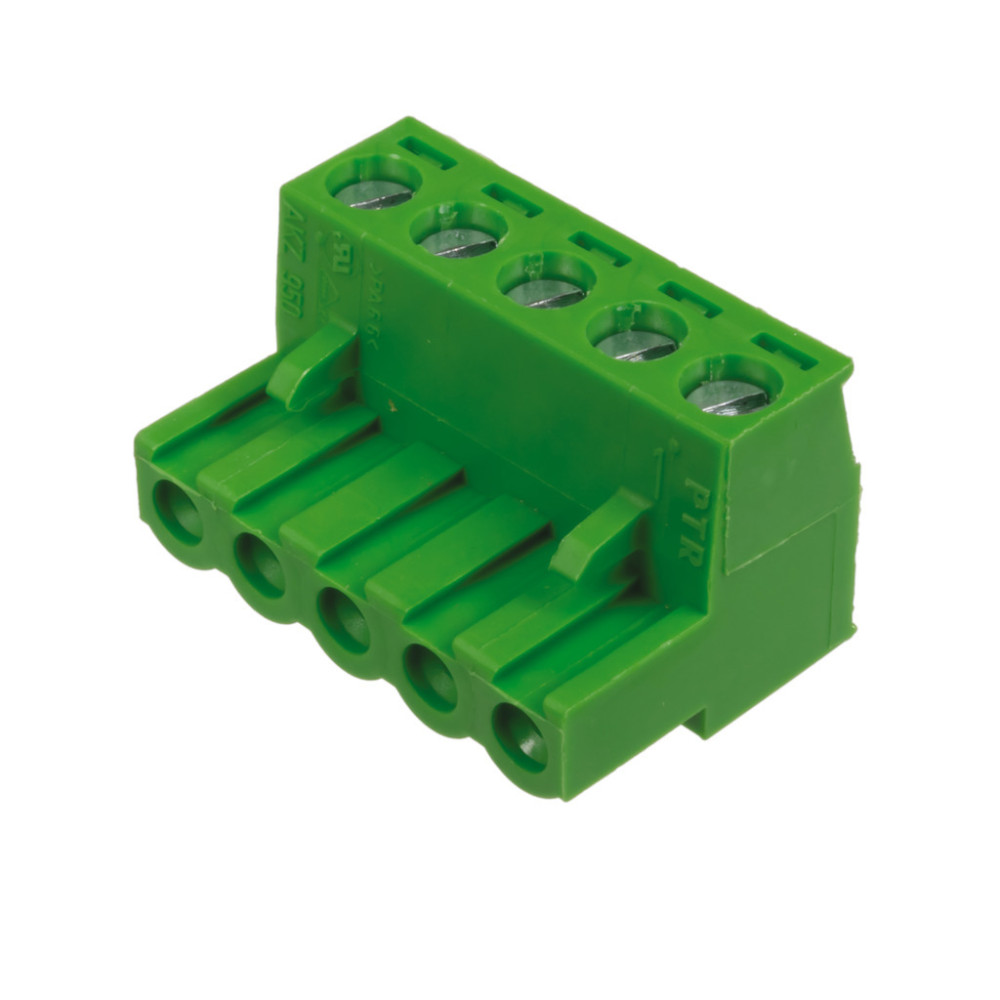

Terminal Block, 5-pole Socket for Cable RM2 (5.08mm) for STLZ 9../5

Manufacturer code:

AKZ950/5-5.08-GREEN

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AKZ950_..-5.08-GREEN.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.08mm

Product Range:

AKZ950

Case:

Swinging

Termination Type:

screwy

Insulation Voltage [V], Max.:

4 kV

Raster measure:

5.08 mm

Standard:

VDE, UL

Continual Current [A], Max.:

12 A

Connector Configuration:

1-row, radial, upper wire

Connector Type:

Terminal block for cable

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.5 mm²

Contact Material:

Bronze

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

1,02 €

1,29 €

Our Warehouse

477 pcs

Available for immediate delivery

Info

Additional Datasheet:

RETKAT2012_L_032.pdf ROHS_PTR2.pdf

Weight:

7.78 g/pcs
