53261-0671 - tüske, 6-pólus SMD beültethető 90°-os RM=1.25mm - MOLEX

0.5508 €+ VAT
0.6995 € incl. VAT

53261-0671 - tüske, 6-pólus SMD beültethető 90°-os RM=1.25mm - MOLEX

Name: 53261-0671 - tüske, 6-pólus SMD beültethető 90°-os RM=1.25mm - MOLEX
Brand: MOLEX
SKU: 53-43-56
Price: 0.6995 EUR
Availability: InStock

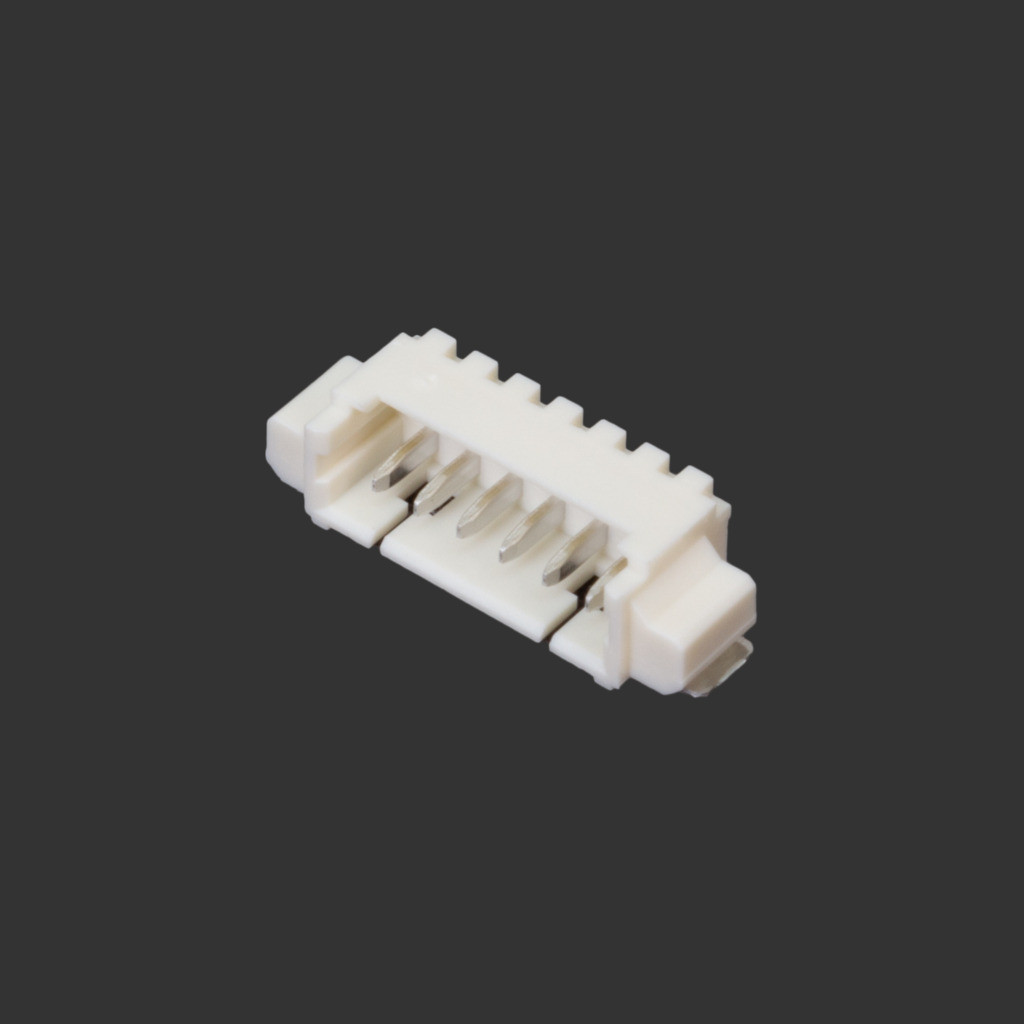

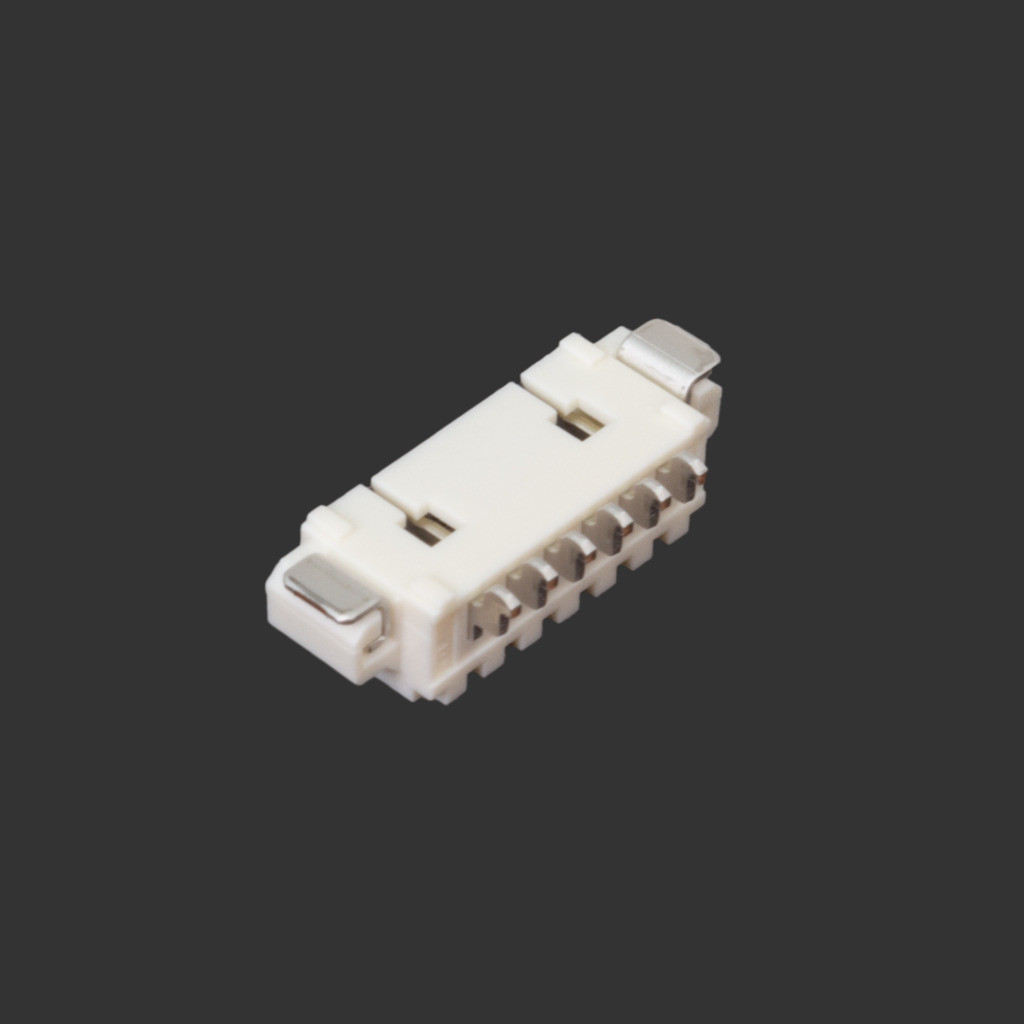

The picture is for illustration purposes only. Please read the product description!

In stock 160 pcs

0.5508 €+ VAT
0.6995 € incl. VAT

6-pole SMD Pin Header Right Angle RM=1.25mm

Manufacturer code:

53261-0671

Manufacturer:

MOLEX

Datasheet:

532610671.pdf

Group:

Other Heades and Receptables

Component Family:

Connector, pin header, Raster=1.25 mm

Product Range:

53261

Case:

Surface Mount (SMD)

Termination Type:

Surface mount (SMD)

Insulation Voltage [V], Max.:

500 V

Raster measure:

1.25 mm

Continual Current [A], Max.:

1 A

Contact Resistance [Ohm]:

20 mOhm

Connector Configuration:

1-row, axial, 90° pins

Connector Type:

Mountable, plug

Contact Material:

Phosphor bronze

Contact Plating:

Tinned

Insulator Material:

Thermoplastic

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

Number of Pins:

pcs

Our Warehouse

160 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.2 g/pcs
