0905720008 - M16 ipari 8-pólusú aljzat, lengő BINDER 680 d=3-6mm törésgátlóval - BINDER

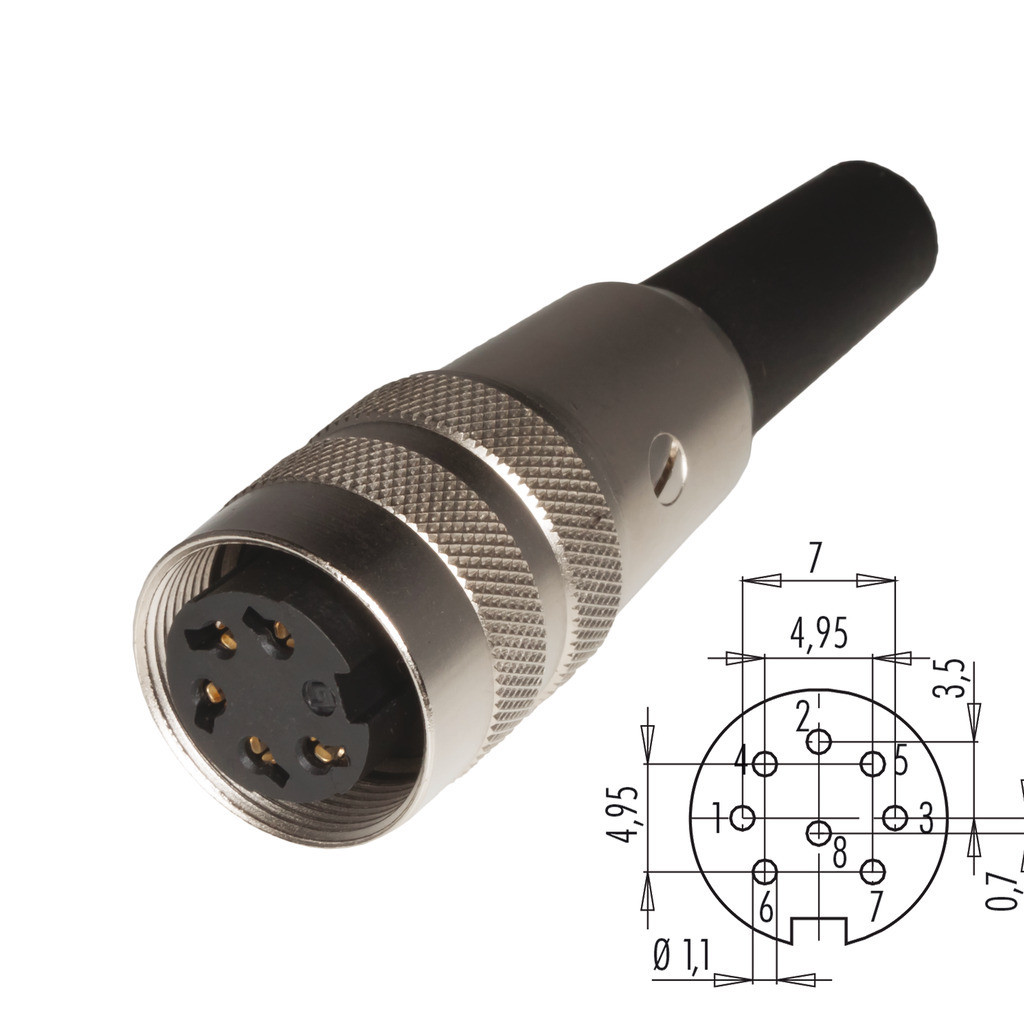

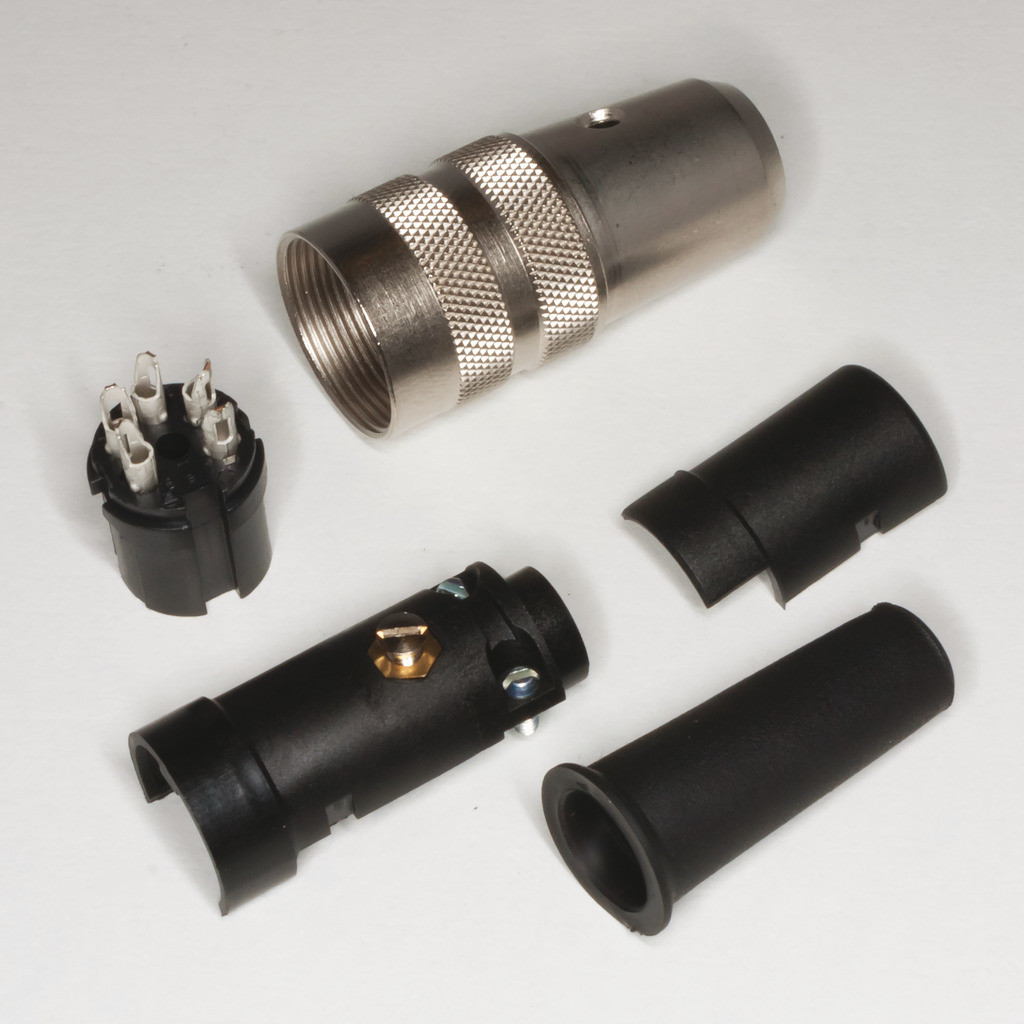

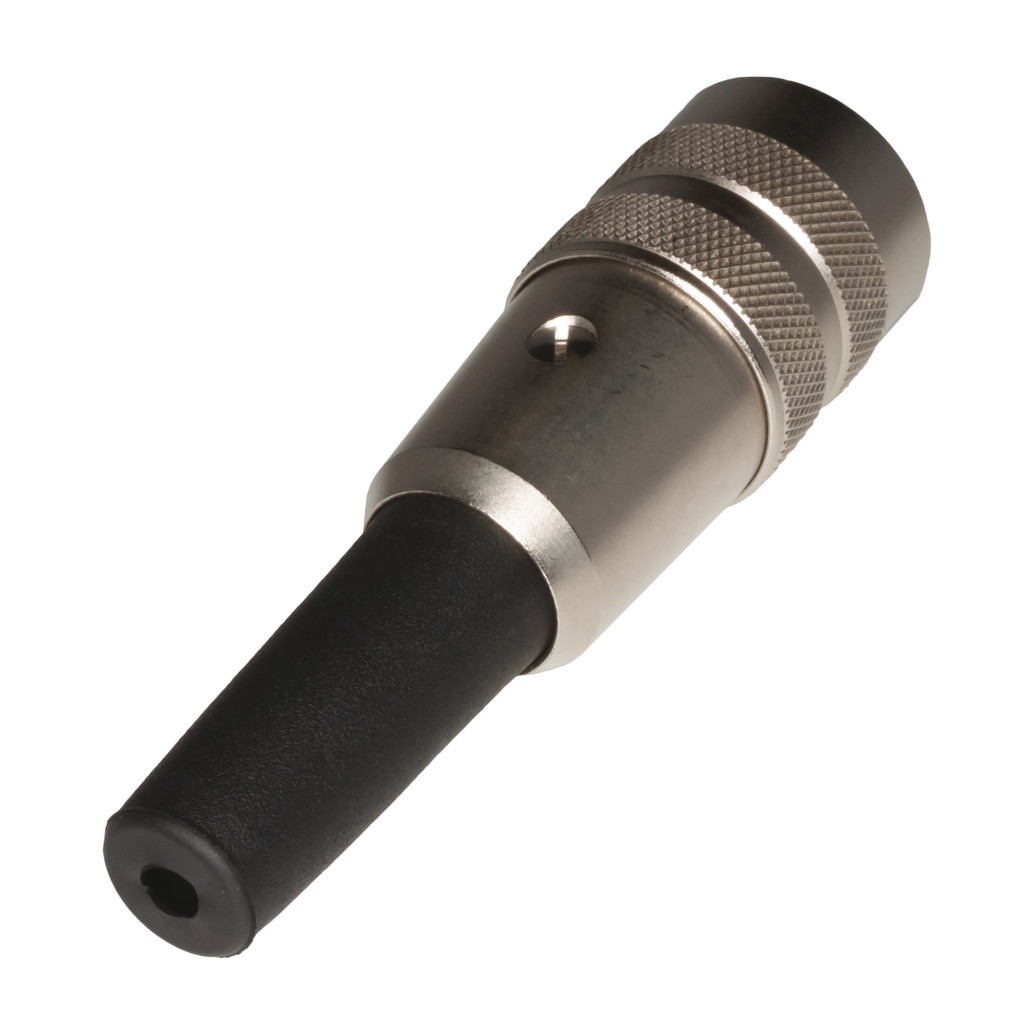

The picture is for illustration purposes only. Please read the product description!
Out of stock
Connector, M16 Industrial 8-pole Socket, for Cable BINDER 680 d=3-6mm with Strain Relief
Manufacturer code:
0905720008
Manufacturer:
Datasheet:
Group:
Industrial Connectors - Binder Serie
Component Family:
Product Range:
Case:
Termination Type:
Screwy fixing
Insulation Voltage [V], Max.:
500 V
Continual Current [A], Max.:
5 A
Contact Resistance [Ohm]:
3 mOhm
Connector Configuration:
Straight
Connector Type:
Socket, swinging type
Voltage [V], Max.:
60 V
IP / NEMA Rating:
IP40
Cable Diameter [mm], Max:
6 mm
Cable Diameter [mm], Min.:
3 mm
Contact Material:
Bronze
Contact Plating:
Silvered
Insulator Material:
PBT
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
