IDP-030-S100-N5 - szalagkábeles csatlakozó, NYÁK-ba 30-pólusú ónozott: IDP-030-S100-00 aranyozott: IDP-030-S100-01 - E-TEC

0.6512 €+ VAT
0.827 € incl. VAT

IDP-030-S100-N5 - szalagkábeles csatlakozó, NYÁK-ba 30-pólusú ónozott: IDP-030-S100-00 aranyozott: IDP-030-S100-01 - E-TEC

Name: IDP-030-S100-N5 - szalagkábeles csatlakozó, NYÁK-ba 30-pólusú ónozott: IDP-030-S100-00 aranyozott: IDP-030-S100-01 - E-TEC
Brand: E-TEC
SKU: 53-18-93
Price: 0.827 EUR
Availability: InStock

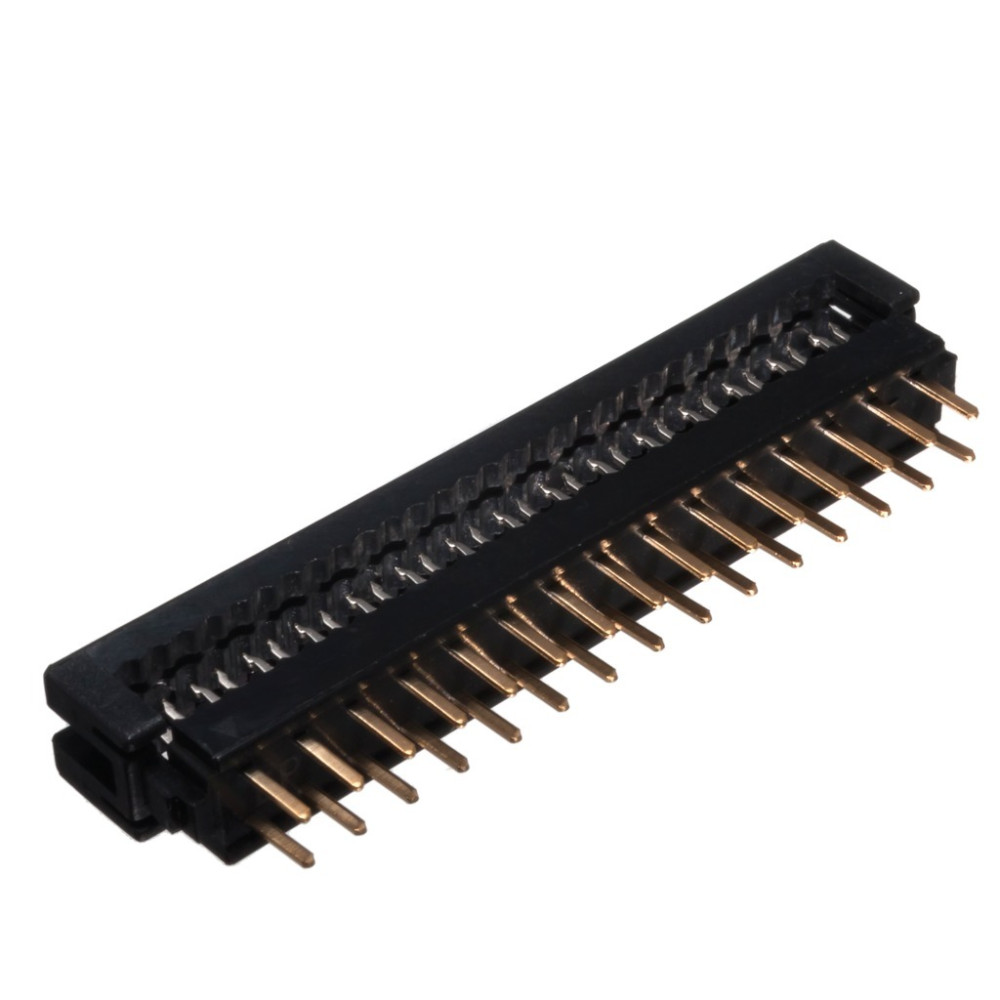

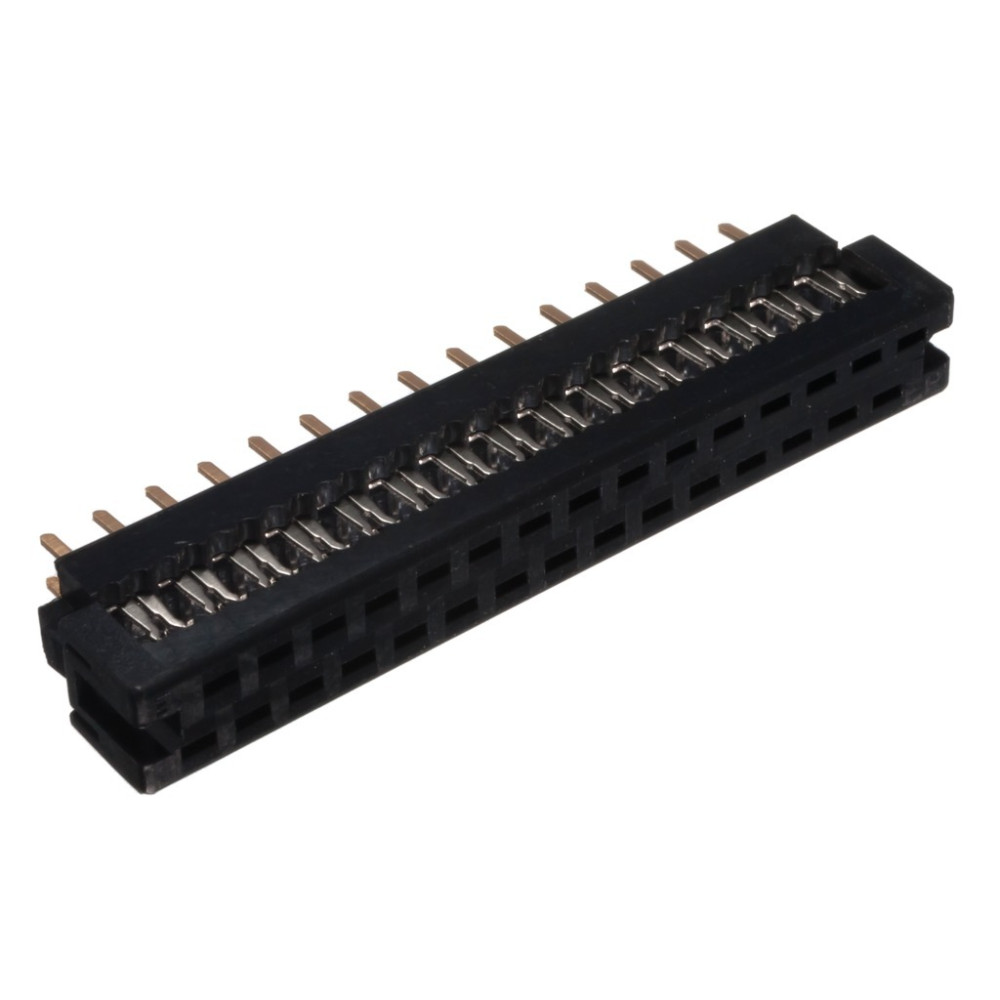

The picture is for illustration purposes only. Please read the product description!

In stock 703 pcs

0.6512 €+ VAT
0.827 € incl. VAT

IDC Ribbon Cable Connector for PCB 30-pole tinned: IDP-030-S100-00 Gold-plated: IDP-030-S100-01

Manufacturer code:

IDP-030-S100-N5

Manufacturer:

E-TEC

Datasheet:

PCB_IDP_DIP.pdf

Group:

DIL,LPV Connectors

Component Family:

Connector, DIL (2.54), for IDC-cable

Product Range:

IDP

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

500 V

Raster measure:

2.54 mm

Continual Current [A], Max.:

1 A

Contact Resistance [Ohm]:

30 mOhm

Connector Configuration:

2-rows, plug

Connector Type:

Solderable, IDC-connection

Contact Material:

Phosphor bronze

Contact Plating:

Gold-plated

Insulator Material:

PBT

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

0,52 €

0,66 €

Our Warehouse

703 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_016.pdf ROHS_E-TEC.pdf
